• 75Ω
  • Coaxial Attenuator
  • Made to order product
  • RoHS2
TYCLON

NCA-PJ-20

Please inquire from “Contact” for made-to-order products.
If you would like the English version of the document,please contact us. CAD data can also be created.
contact us
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

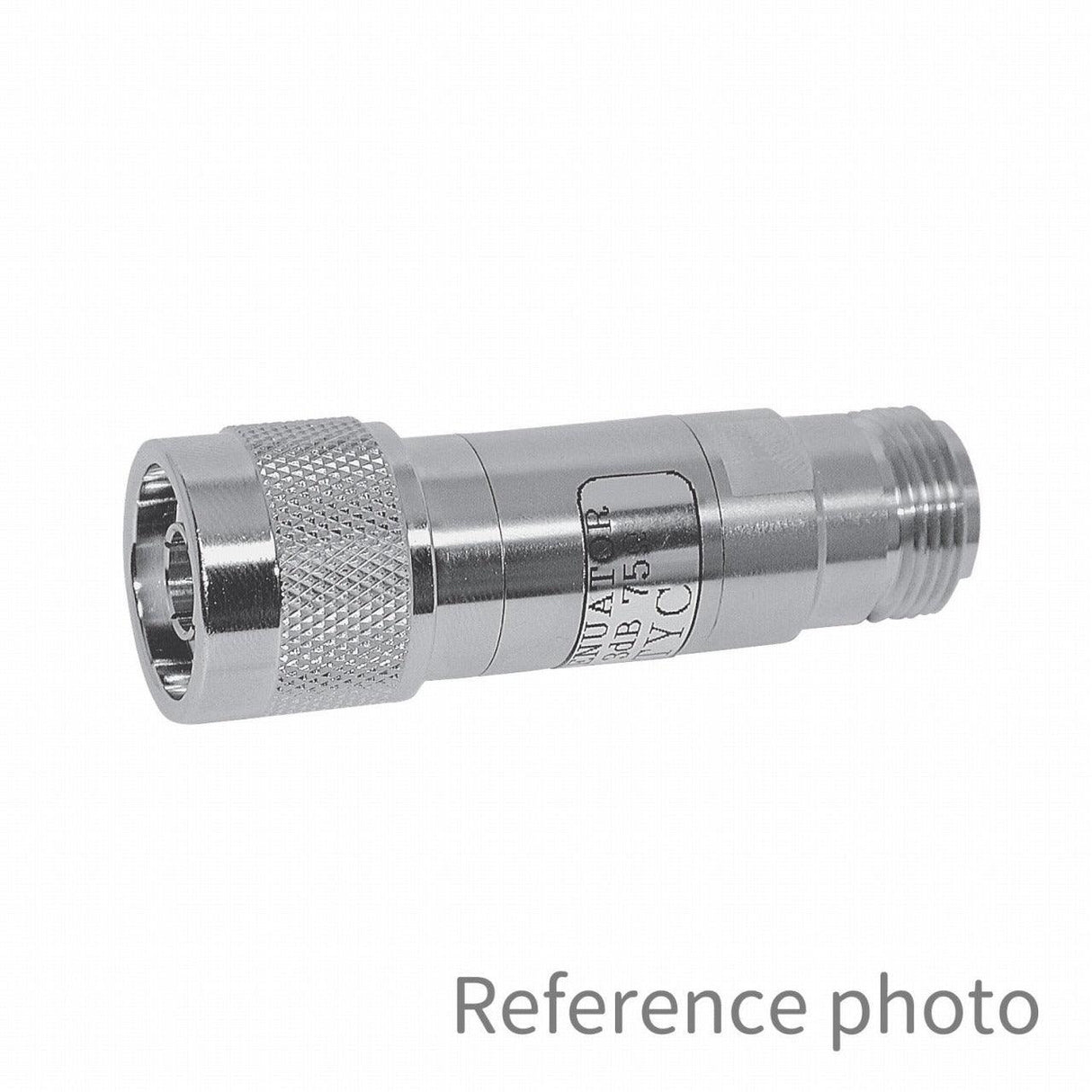

The NCA-PJ-20 is an N75Ω Attenuator. This connector is suitable for various high-frequency applications. It features a impedance 75Ω, operates up to 2 GHz, and an excellent V.S.W.R 1.2(Max.) at DC~2GHz. The contact is made of Brass/Phosphor Bronze/Gold Plating, while the body is Brass/Nickel Plating. Rated Power is 1W.Attenuation is 20±1.2dB up to 2GHz. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Connector Gender
    Plug-Jack
  • Impedance (Ohms)
    75Ω
  • Operating Frequency Range
    2 GHz
  • V.S.W.R
    1.2(Max.) at DC~2GHz
  • Rated Power (W)
    1W
  • Attenuation (dB)
    20±1.2dB up to 2GHz

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Brass/Phosphor Bronze/Gold Plating
  • Body
    Brass/Nickel Plating

The NCA-PJ-20 is an N75Ω Attenuator. This connector is suitable for various high-frequency applications. It features a impedance 75Ω, operates up to 2 GHz, and an excellent V.S.W.R 1.2(Max.) at DC~2GHz. The contact is made of Brass/Phosphor Bronze/Gold Plating, while the body is Brass/Nickel Plating. Rated Power is 1W.Attenuation is 20±1.2dB up to 2GHz. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Featured collection

RF Coaxial Connector N75Ω Coaxial Attenuator
TYCLON

NCA-PJ-20

$0.00

N75Ω Coaxial Attenuator

Cable type

N/A

Connector Gender

Plug-Jack

Impedance (Ohms)

75Ω

Rated Voltage AC

N/A

Operating Frequency Range

2 GHz

Insulation Resistance

N/A

Withstand Voltage

N/A

Contact Resistance

N/A

V.S.W.R

1.2(Max.) at DC~2GHz

Operating Temperature Range

N/A

Crimping Tool

N/A

Rated Power (W)

1W

Attenuation (dB)

20±1.2dB up to 2GHz

Length (m)

N/A

Terminal Shape

N/A
