TYCLON

N-BA-JJ-18G

$32.66
Tax included

Due to our winter holiday closure starting on December 27 (Japan time), orders will be shipped sequentially beginning January 5.
Thank you for your understanding.
If you would like the English version of the document,please contact us. CAD data can also be created.
contact us
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.CAD data can also be created.

Description

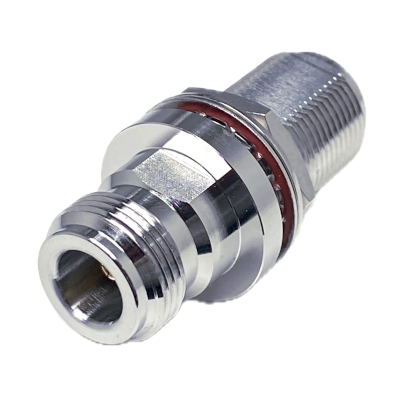

N-BA-JJ-18G is an N adaptor connector. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 18 GHz, ensures a high insulation resistance (5000MΩ(Min.) , and an excellent V.S.W.R 1.25(Max.) at DC~18GHz. Withstanding temperatures from -55 to +125°C. The contact is made of Phosphor Bronze/Gold Plating, while the body is Brass/Tri-material Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Jack-Jack
  • Impedance (Ohms)
    50Ω
  • Operating Frequency Range
    18 GHz
  • Insulation Resistance
    5000MΩ(Min.)
  • V.S.W.R
    1.25(Max.) at DC~18GHz
  • Operating Temperature Range
    -55 to +125°C

    • We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Phosphor Bronze/Gold Plating
  • Body
    Brass/Tri-material Plating

N-BA-JJ-18G is an N adaptor connector. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 18 GHz, ensures a high insulation resistance (5000MΩ(Min.) , and an excellent V.S.W.R 1.25(Max.) at DC~18GHz. Withstanding temperatures from -55 to +125°C. The contact is made of Phosphor Bronze/Gold Plating, while the body is Brass/Tri-material Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.
