• 50Ω
  • Jack(Bulkhead)
  • Products in stock
  • RoHS2
TYCLON

N-BJ-174A

$7.52
Tax included
If you would like the English version of the document,please contact us. CAD data can also be created.
contact us
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.CAD data can also be created.

Description

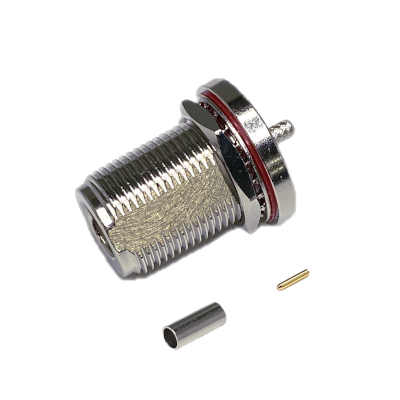

The N-BJ-174A is an N Bulkhead Jack connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG316, RG174, RG188 cables. It features a impedance 50Ω, and an excellent V.S.W.R 1.3(Max.) at DC~6GHz. The contact is made of Phosphor Bronze/Gold Plating/Soldering, while the body is Brass/Nickel Plating /Crimping. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Learn more about the N 50Ω RF connector in our technical guide.

Specifications
  • Cable type
    RG316, RG174, RG188
  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • V.S.W.R
    1.3(Max.) at DC~6GHz
  • Crimping Tool
    TA-16, TA-17

    • We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Phosphor Bronze/Gold Plating/Soldering
  • Body
    Brass/Nickel Plating/Crimping

The N-BJ-174A is an N Bulkhead Jack connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG316, RG174, RG188 cables. It features a impedance 50Ω, and an excellent V.S.W.R 1.3(Max.) at DC~6GHz. The contact is made of Phosphor Bronze/Gold Plating/Soldering, while the body is Brass/Nickel Plating /Crimping. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Learn more about the N 50Ω RF connector in our technical guide.
