Description

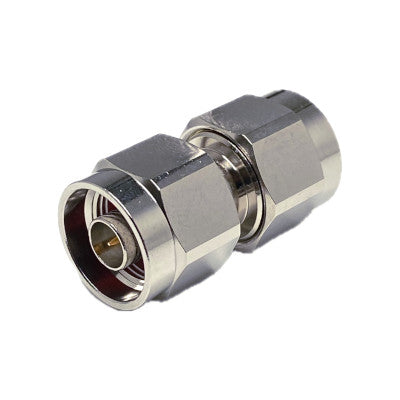

The NA-PP-18G is an N adaptor connector. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 18 GHz, and has a rated voltage of AC 1000V, ensures a high insulation resistance (5000MΩ(Min.)), a low contact resistance (Center : 5 mΩ(Max.), Outer : 2.5 mΩ(Max.)), and an excellent V.S.W.R 1.2(Max.) at DC~18 GHz. Withstanding temperatures from -65 to +165°C. The contact is made of Brass/Gold Plating, while the body is Brass/Nickel Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Learn more about the N 50Ω RF connector in our technical guide.

Specifications
  • Connector Gender
    Plug-Plug
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 1000V
  • Operating Frequency Range
    18 GHz
  • Insulation Resistance
    5000MΩ(Min.)
  • Withstand Voltage
    AC 1500V(1 minute)
  • Contact Resistance
    Center : 5 mΩ(Max.), Outer : 2.5 mΩ(Max.)
  • V.S.W.R
    1.2(Max.) at DC~18 GHz
  • Operating Temperature Range
    -65 to +165°C
