• 50Ω
  • Coaxial Attenuator
  • Products in stock
  • RoHS2
TYCLON

NPJ50AT6G50W-3dB

$550.00
Tax included
You must register and log in to download
2D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

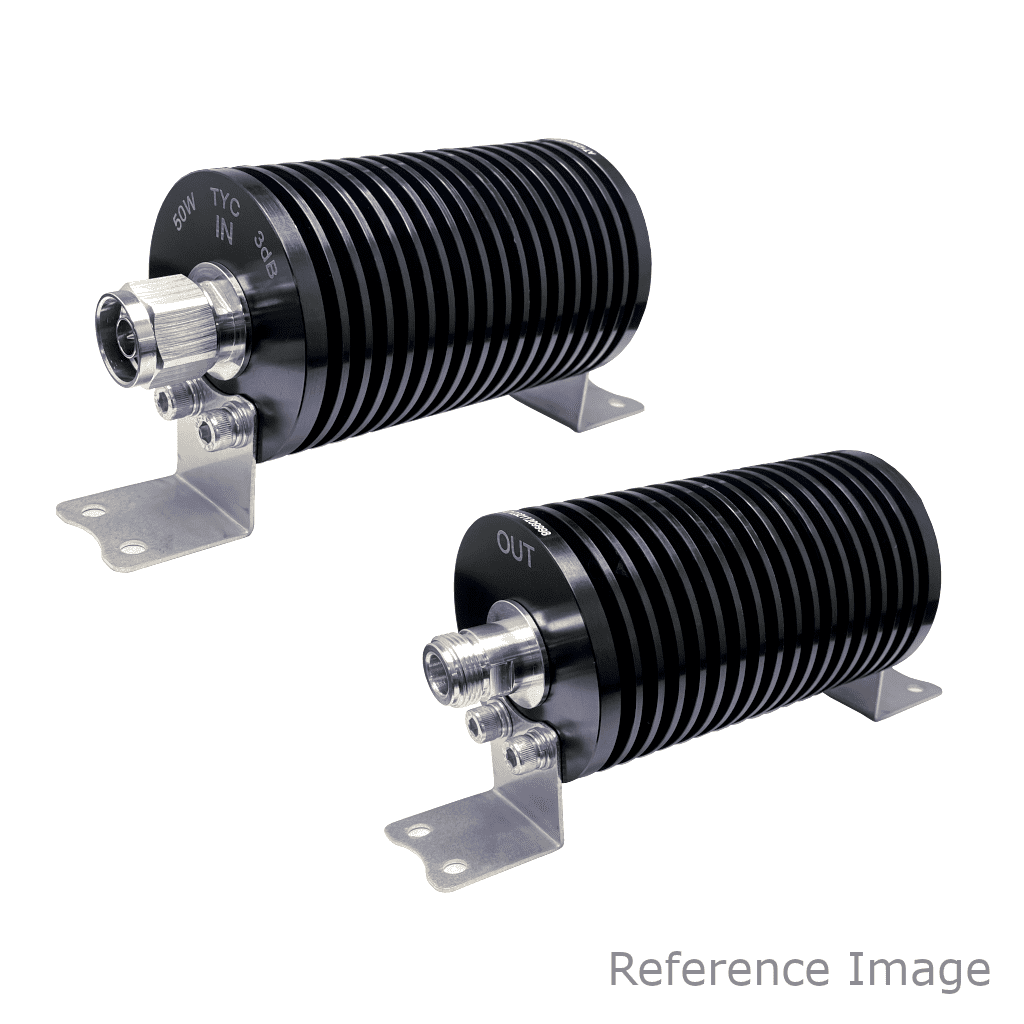

The NPJ50AT6G50W-3dB is an N Attenuator. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 6GHz, and an excellent V.S.W.R 1.2(Max.) at DC~3 GHz, 1.3(Max.) at 3~6 GHz. Withstanding temperatures from -45 to +85°C. The contact is made of Phosphor Bronze/Gold Plating, while the body is Brass/Ternary Plating. Rated Power is 50W.Attenuation is 3±0.59dB up to 6GHz. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Plug-Jack
  • Impedance (Ohms)
    50Ω
  • Operating Frequency Range
    6GHz
  • V.S.W.R
    1.2(Max.) at DC~3 GHz, 1.3(Max.) at 3~6 GHz
  • Operating Temperature Range
    -45 to +85°C
  • Rated Power (W)
    50W
  • Attenuation (dB)
    3±0.59dB up to 6GHz

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Phosphor Bronze/Gold Plating
  • Body
    Brass/Ternary Plating

The NPJ50AT6G50W-3dB is an N Attenuator. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 6GHz, and an excellent V.S.W.R 1.2(Max.) at DC~3 GHz, 1.3(Max.) at 3~6 GHz. Withstanding temperatures from -45 to +85°C. The contact is made of Phosphor Bronze/Gold Plating, while the body is Brass/Ternary Plating. Rated Power is 50W.Attenuation is 3±0.59dB up to 6GHz. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Featured collection

RF Coaxial Connector N Coaxial Attenuator
TYCLON

NPJ50AT6G50W-3dB

$550.00

N Coaxial Attenuator

Cable type

N/A

Connector Gender

Plug-Jack

Impedance (Ohms)

50Ω

Rated Voltage AC

N/A

Operating Frequency Range

6GHz

Insulation Resistance

N/A

Withstand Voltage

N/A

Contact Resistance

N/A

V.S.W.R

1.2(Max.) at DC~3 GHz, 1.3(Max.) at 3~6 GHz

Operating Temperature Range

-45 to +85°C

Crimping Tool

N/A

Rated Power (W)

50W

Attenuation (dB)

3±0.59dB up to 6GHz

Length (m)

N/A

Terminal Shape

N/A
