TYCLON

NP-A-QJ

$22.92
Tax included
If you would like the English version of the document,please contact us. CAD data can also be created.
contact us
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

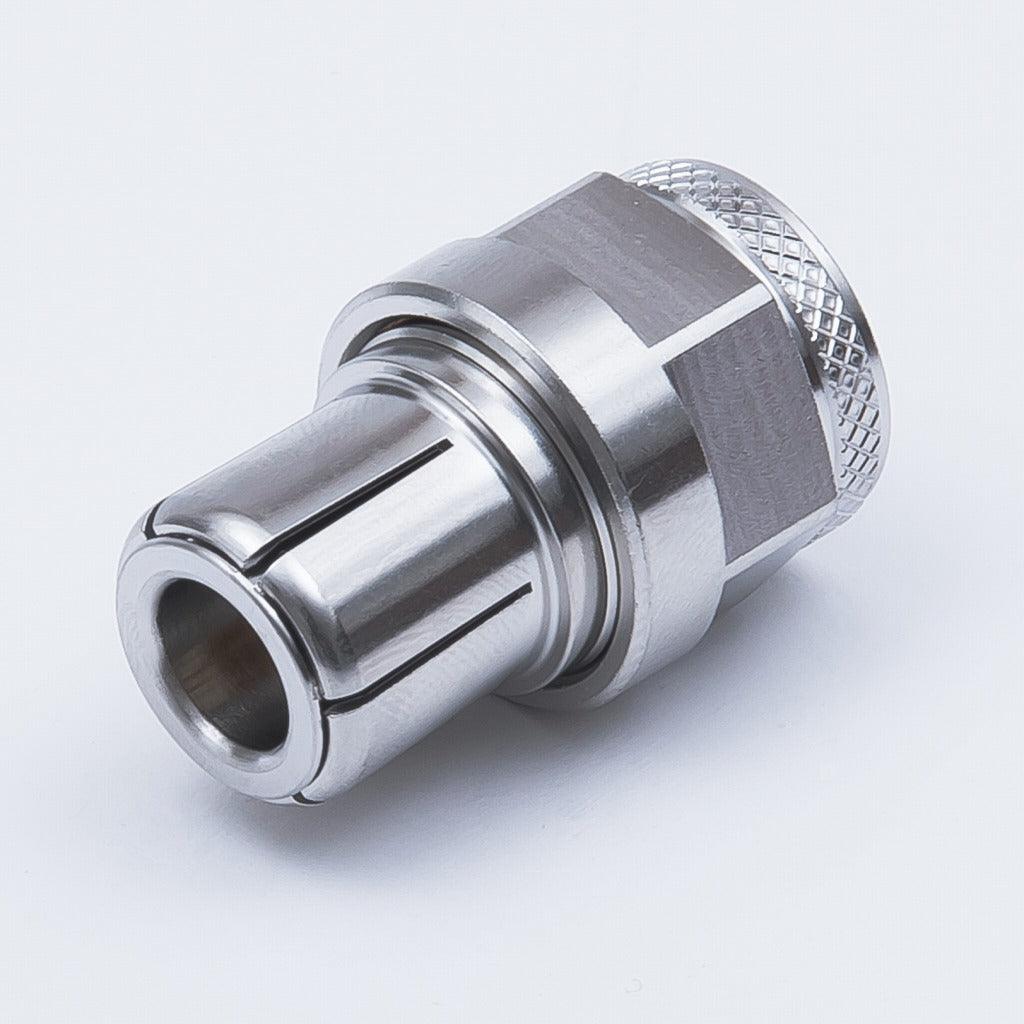

The NP-A-QJ is an N adaptor connector. This connector is suitable for various high-frequency applications.It features a impedance 50Ω, operates up to 8 GHz, and has a rated voltage of AC 500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at DC~8GHz.Withstanding temperatures from -40 to +85°C.The contact is made of Beryllium Copper/Gold Plating, while the body is Brass/Ternary Plating.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Plug-Jack
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 500V
  • Operating Frequency Range
    8 GHz
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1000V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)
  • V.S.W.R
    1.2(Max.) at DC~8GHz
  • Operating Temperature Range
    -40 to +85°C
