NA-PJ-20

$51.00
Tax included
If you would like the English version of the document,please contact us. CAD data can also be created.

Description

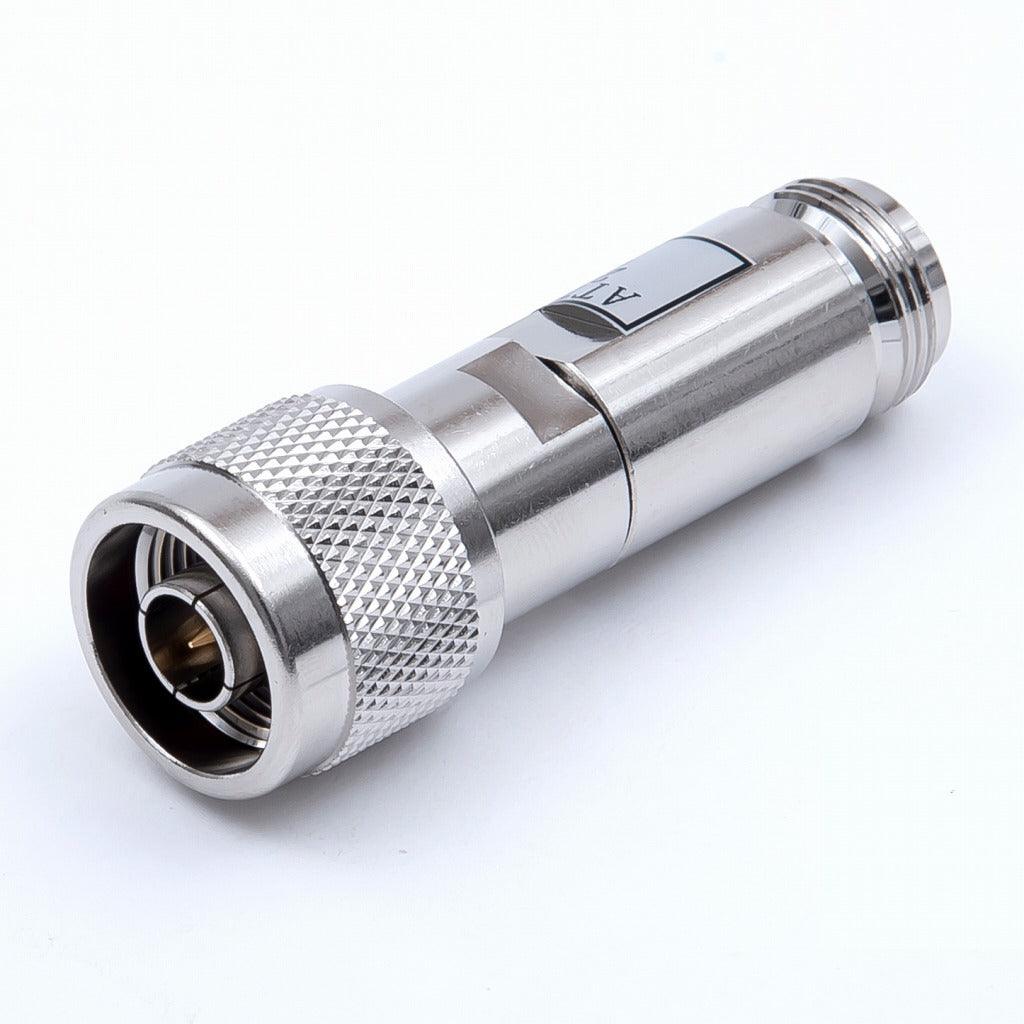

The NA-PJ-20 is an N Attenuator. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 4 GHz, and an excellent V.S.W.R 1.15(Max.) at DC~2 GHz, 1.2(Max.) at DC~4 GHz. Withstanding temperatures from -20 to +65°C. The contact is made of Brass/Beryllium Copper/Gold Plating, while the body is Brass/Nickel Plating. Rated Power is 2W.Attenuation is 20±0.5dB up to 2GHz, 20±1.2dB up to 4GHz. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications

  • Connector Gender
    Plug-Jack
  • Impedance (Ohms)
    50Ω
  • Operating Frequency Range
    4 GHz
  • V.S.W.R
    1.15(Max.) at DC~2 GHz, 1.2(Max.) at DC~4 GHz
  • Operating Temperature Range
    -20 to +65°C
  • Rated Power (W)
    2W
  • Attenuation (dB)
    20±0.5dB up to 2GHz, 20±1.2dB up to 4GHz
  • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment

  • Contact
    Brass/Beryllium Copper/Gold Plating
  • Body
    Brass/Nickel Plating

The NA-PJ-20 is an N Attenuator. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 4 GHz, and an excellent V.S.W.R 1.15(Max.) at DC~2 GHz, 1.2(Max.) at DC~4 GHz. Withstanding temperatures from -20 to +65°C. The contact is made of Brass/Beryllium Copper/Gold Plating, while the body is Brass/Nickel Plating. Rated Power is 2W.Attenuation is 20±0.5dB up to 2GHz, 20±1.2dB up to 4GHz. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

RF Coaxial Connector N Coaxial Attenuator
TYCLON

NA-PJ-20

$51.00

N Coaxial Attenuator

Cable type

N/A

Connector Gender

Plug-Jack

Impedance (Ohms)

50Ω

Rated Voltage AC

N/A

Operating Frequency Range

4 GHz

Insulation Resistance

N/A

Withstand Voltage

N/A

Contact Resistance

N/A

V.S.W.R

1.15(Max.) at DC~2 GHz, 1.2(Max.) at DC~4 GHz

Operating Temperature Range

-20 to +65°C

Crimping Tool

N/A

Rated Power (W)

2W

Attenuation (dB)

20±0.5dB up to 2GHz, 20±1.2dB up to 4GHz

Length (m)

N/A

Terminal Shape

N/A
Compare now
