• 50Ω
  • Made to order product
  • Receptacle
  • RoHS2
TYCLON

N-RD

Please inquire from “Contact” for made-to-order products.
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

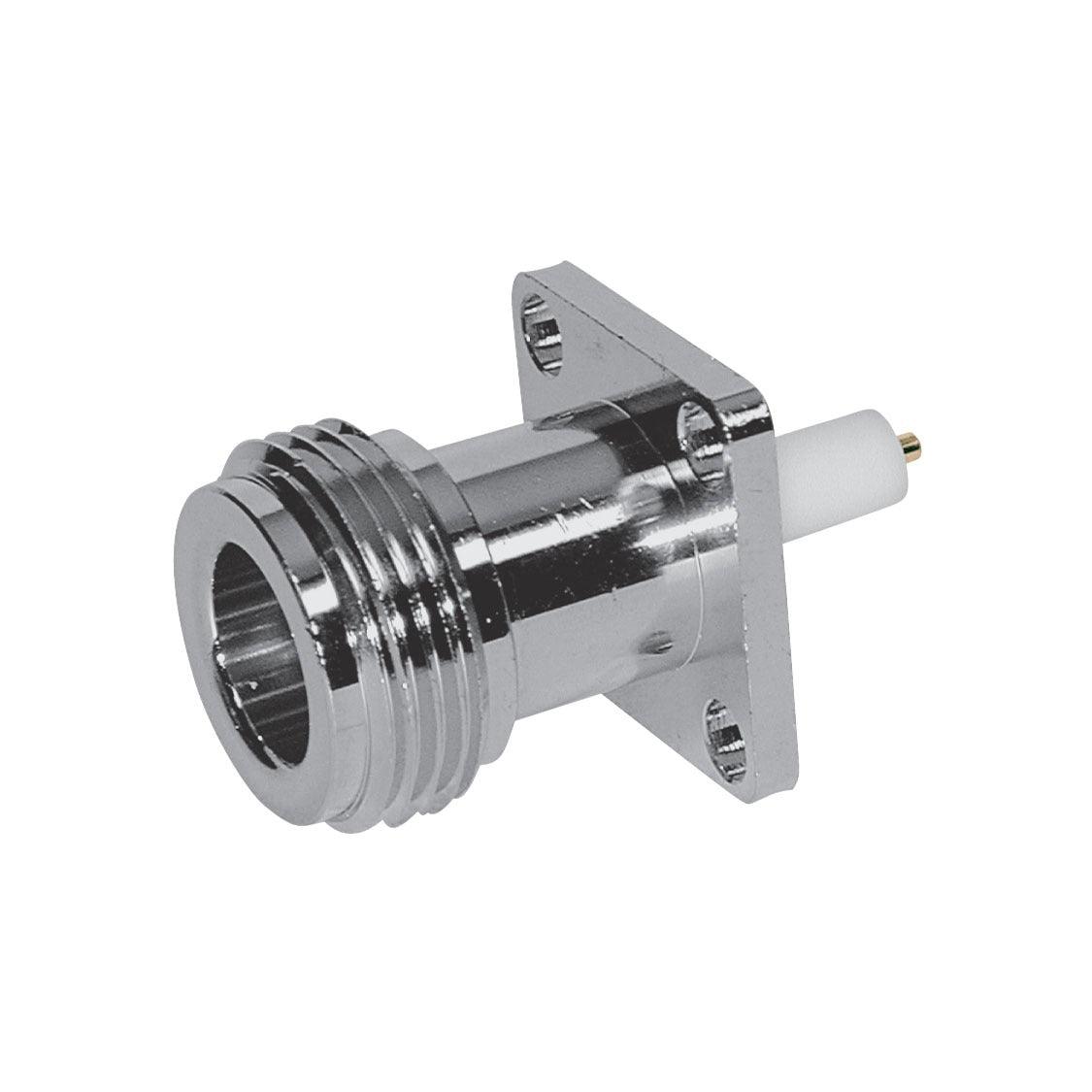

The N-RD is an N Receptacle. This connector is suitable for various high-frequency applications.It features a impedance 50Ω, operates up to 10 GHz, and has a rated voltage of AC 500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.).Withstanding temperatures from -40 to +85°C.The contact is made of Phosphor Bronze/Gold Plating, while the body is Brass/Nickel Plating.Terminal Shape is Round bar.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 500V
  • Operating Frequency Range
    10 GHz
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1000V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)
  • Operating Temperature Range
    -40 to +85°C
  • Terminal Shape
    Round bar

    • Safe & Secure
