NP-14/U
Contact us
View Datasheet
Description
Description

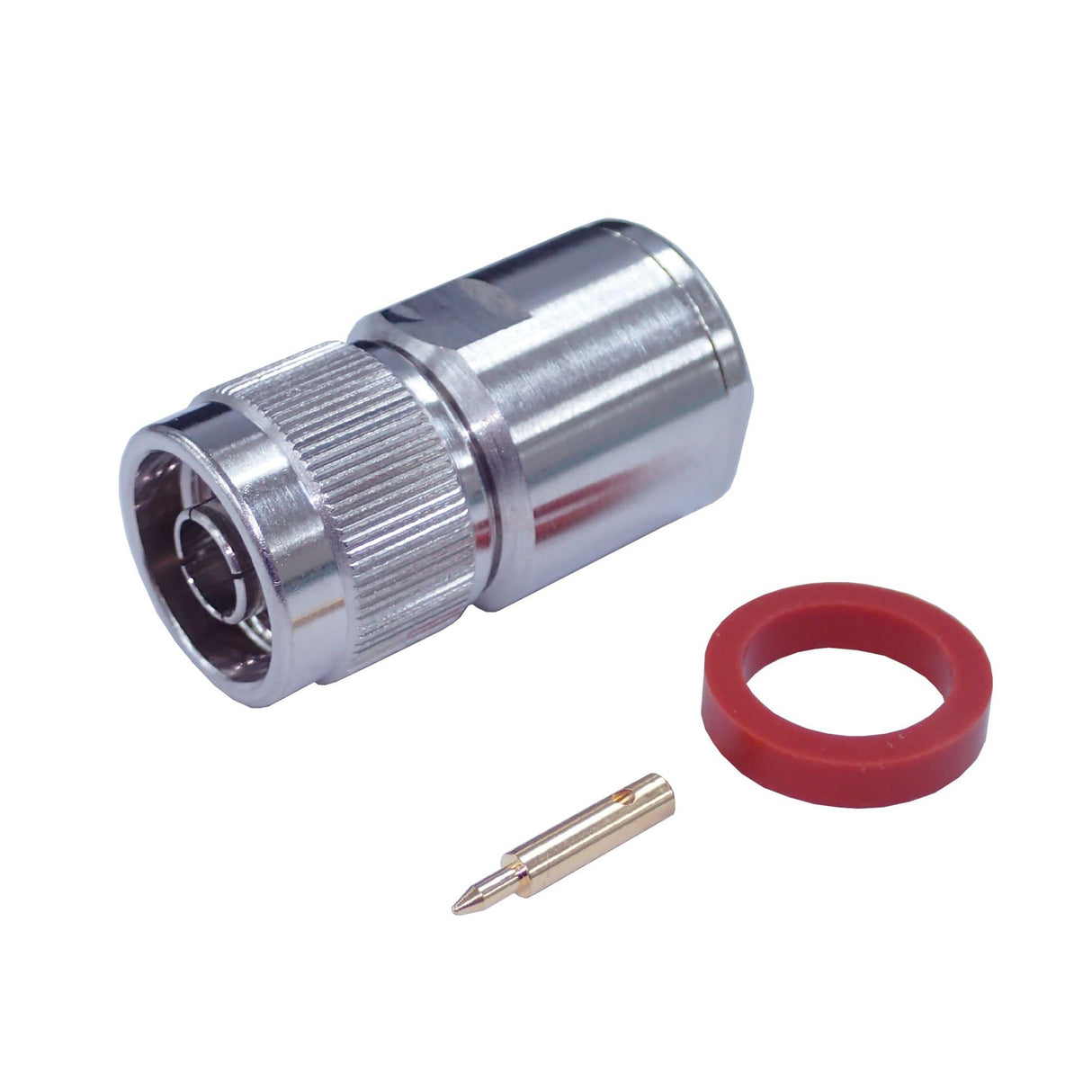

The NP-14/U is an N Straight Plug connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-14/U,RG-14A/U cables. It features a impedance 50Ω, and has a rated voltage of AC 500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.). Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Gold-Plated/Soldered, while the body is Brass/Nickel Plating/Tightening. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.
Specifications
Specifications
-
Cable typeRG-14/U, RG-14A/U
-
Connector Gender
-
Impedance (Ohms)
-
Rated Voltage AC
-
Insulation Resistance
-
Withstand Voltage
-
Contact Resistance
-
Operating Temperature Range
Safe & Secure
We ensure secure processing of your payment information and do not retain or have any access to your credit card details.
Material/Plating/Attachment
Material/Plating/Attachment
-
Contact
-
Body
The NP-14/U is an N Straight Plug connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-14/U,RG-14A/U cables. It features a impedance 50Ω, and has a rated voltage of AC 500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.). Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Gold-Plated/Soldered, while the body is Brass/Nickel Plating/Tightening. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.
-
Cable typeRG-14/U, RG-14A/U
-
Connector Gender
-
Impedance (Ohms)
-
Rated Voltage AC
-
Insulation Resistance
-
Withstand Voltage
-
Contact Resistance
-
Operating Temperature Range
