MMCX-J-316

$3.17
Tax included
You must register and log in to download

Description

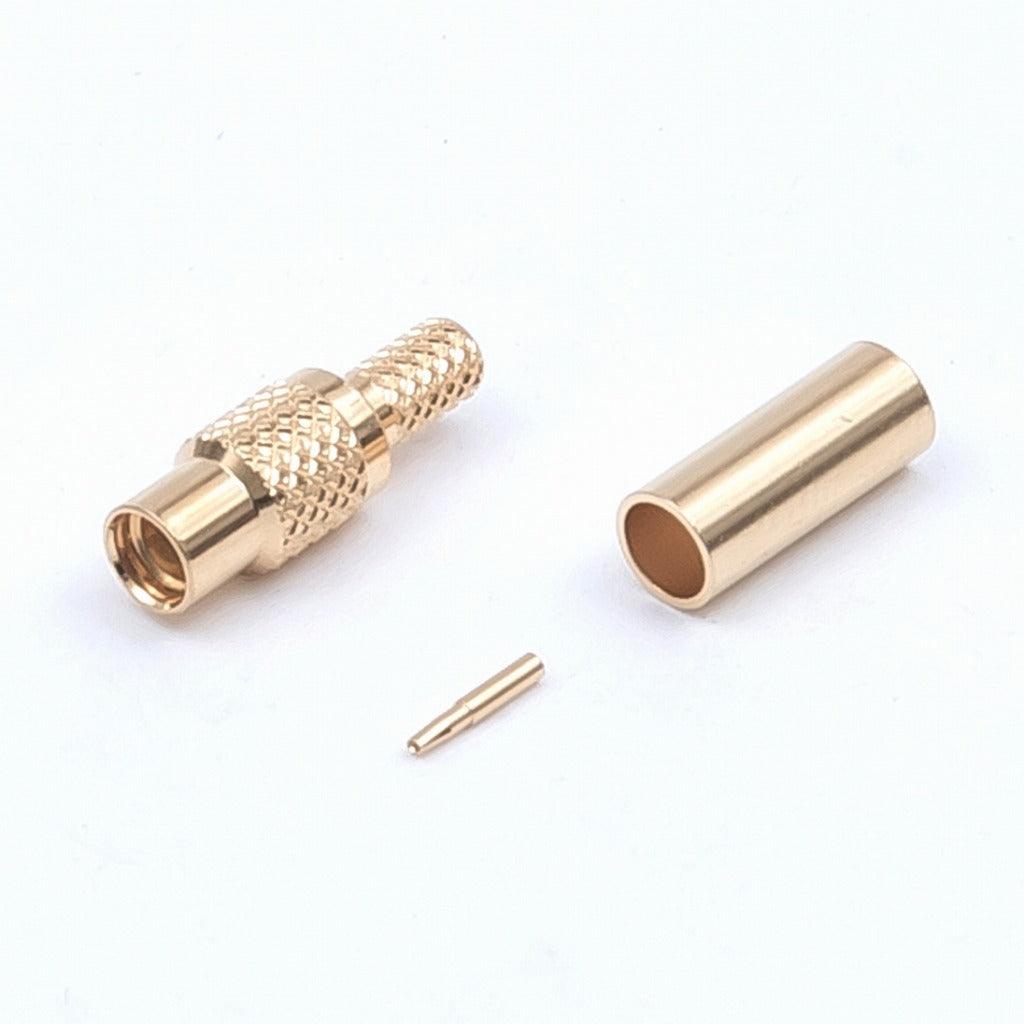

The MMCX-J-316 is an MMCX Straight Jack connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-316/U cables.It features a impedance 50Ω, operates up to 6GHz, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (5 mΩ(Max.), and an excellent V.S.W.R 1.35(Max.) at 0~3 GHz.Withstanding temperatures from -40 to +85°C.The contact is made of Beryllium Copper/Gold Plating/Soldering, while the body is Brass/Gold Plating/Crimp.A crimping toolTA-16 or TA-17 is required for mounting.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.Available from 1 piece for in-stock items.

Specifications

  • Cable type
    RG-316/U
  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • Operating Frequency Range
    6GHz
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    DC 500V(1 minute)
  • Contact Resistance
    5 mΩ(Max.)
  • V.S.W.R
    1.35(Max.) at 0~3 GHz
  • Operating Temperature Range
    -40 to +85°C
  • Crimping Tool
    TA-16, TA-17
  • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment

  • Contact
    Beryllium Copper/Gold Plating/Soldering
  • Body
    Brass/Gold Plating/Crimp

The MMCX-J-316 is an MMCX Straight Jack connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-316/U cables.It features a impedance 50Ω, operates up to 6GHz, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (5 mΩ(Max.), and an excellent V.S.W.R 1.35(Max.) at 0~3 GHz.Withstanding temperatures from -40 to +85°C.The contact is made of Beryllium Copper/Gold Plating/Soldering, while the body is Brass/Gold Plating/Crimp.A crimping toolTA-16 or TA-17 is required for mounting.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.Available from 1 piece for in-stock items.

MMCX Jack
TYCLON

MMCX-J-316

$3.17

MMCX Jack

Cable type

RG-316/U

Connector Gender

Jack

Impedance (Ohms)

50Ω

Rated Voltage AC

N/A

Operating Frequency Range

6GHz

Insulation Resistance

1000MΩ(Min.) at DC 500V

Withstand Voltage

DC 500V(1 minute)

Contact Resistance

5 mΩ(Max.)

V.S.W.R

1.35(Max.) at 0~3 GHz

Operating Temperature Range

-40 to +85°C

Crimping Tool

TA-16, TA-17

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
Compare now
