• 50Ω
  • Plug(Right Angle)
  • Products in stock
  • RoHS2
TYCLON

MMCX-LP-0.66

$3.42
Tax included
You must register and log in to download
2D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

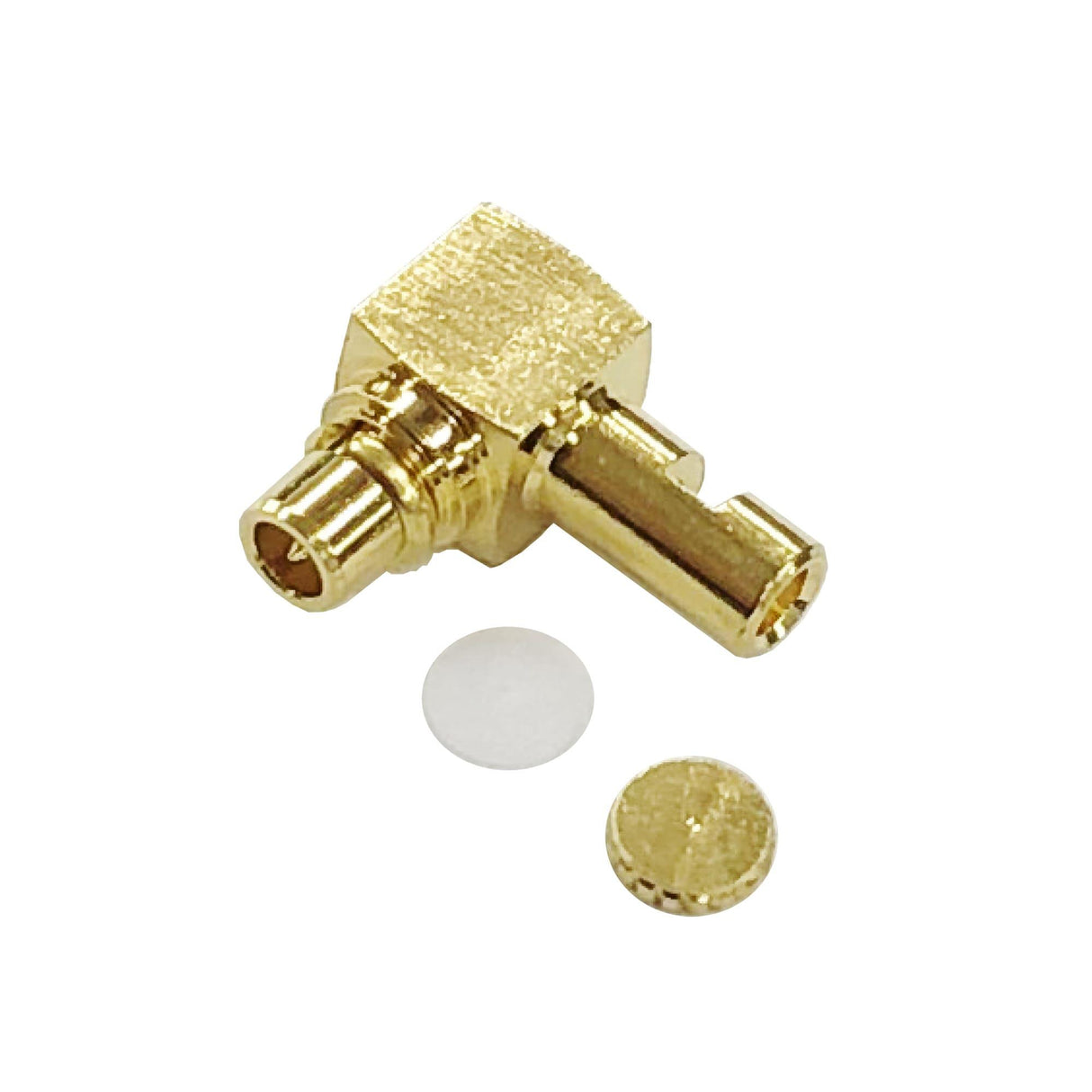

The MMCX-LP-0.66 is an MMCX Right Angle Plug connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits 1×32AWG（7/0.08）D=1.13,1×32AWG（7/0.08）D=1.32 cables. It features a impedance 50Ω, operates up to 6GHz, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (5 mΩ(Max.), and an excellent V.S.W.R 1.35(Max.) at 0-6GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Gold-Plated/Soldered, while the body is Brass/Gold-Plated/Soldered. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Cable type
    1×32AWG（7/0.08）D=1.13, 1×32AWG（7/0.08）D=1.32
  • Connector Gender
    Plug
  • Impedance (Ohms)
    50Ω
  • Operating Frequency Range
    6GHz
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    DC 500V(1 minute)
  • Contact Resistance
    5 mΩ(Max.)
  • V.S.W.R
    1.35(Max.) at 0-6GHz
  • Operating Temperature Range
    -40 to +85°C
