Description

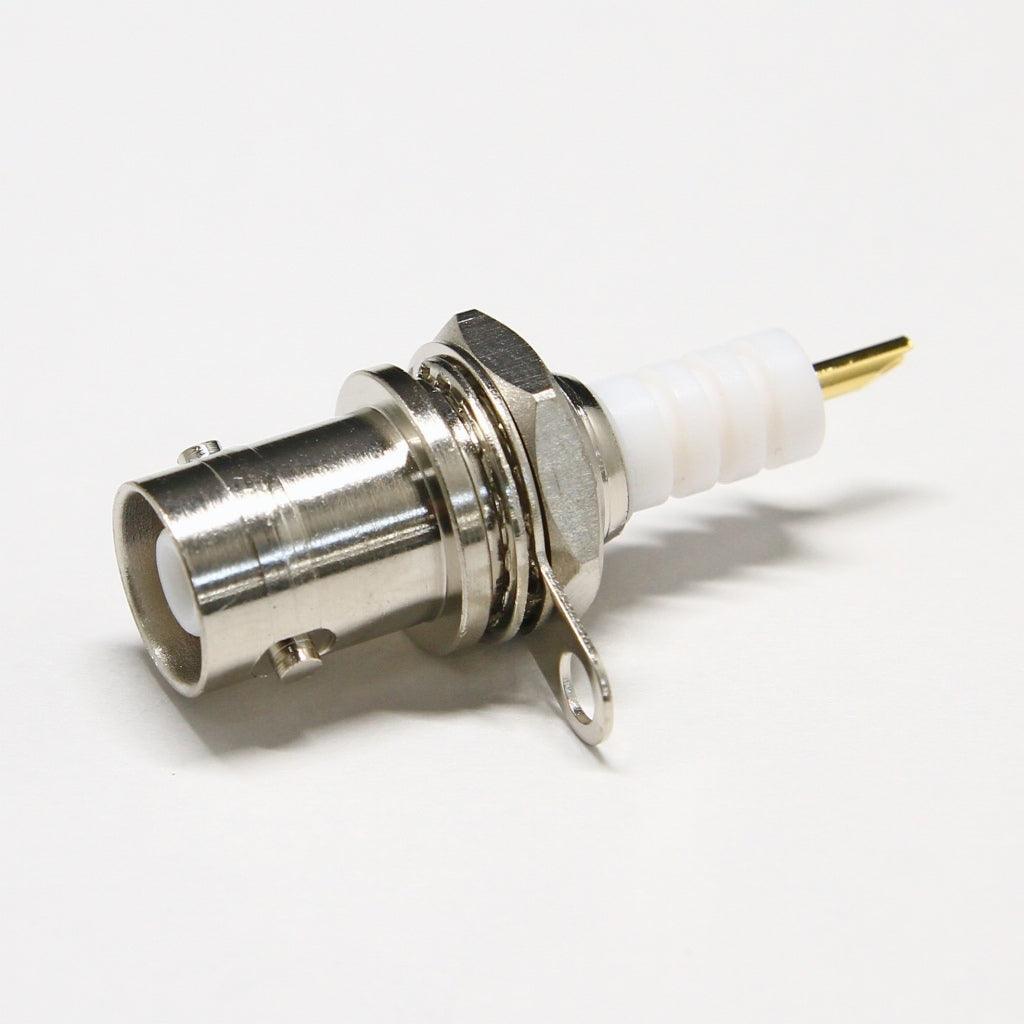

The BNC-HV-BR is an MHV Receptacle. This connector is suitable for various high-frequency applications.It features a impedance Mismatch, and has a rated voltage of AC 1600V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.).The contact is made of Phosphor Bronze/Gold Plating, while the body is Brass/Nickel Plating.Terminal Shape is solder.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Connector Gender
    Jack
  • Impedance (Ohms)
    Mismatch
  • Rated Voltage AC
    AC 1600V
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 5000V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)
  • Terminal Shape
    solder

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Phosphor Bronze/Gold Plating
  • Body
    Brass/Nickel Plating

The BNC-HV-BR is an MHV Receptacle. This connector is suitable for various high-frequency applications.It features a impedance Mismatch, and has a rated voltage of AC 1600V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.).The contact is made of Phosphor Bronze/Gold Plating, while the body is Brass/Nickel Plating.Terminal Shape is solder.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Featured collection

MHV Receptacle
TYCLON

BNC-HV-BR

$0.00

MHV Receptacle

Cable type

N/A

Connector Gender

Jack

Impedance (Ohms)

Mismatch

Rated Voltage AC

AC 1600V

Operating Frequency Range

N/A

Insulation Resistance

5000MΩ(Min.) at DC 500V

Withstand Voltage

AC 5000V(1 minute)

Contact Resistance

3 mΩ(Max.)

V.S.W.R

N/A

Operating Temperature Range

N/A

Crimping Tool

N/A

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

solder
