MCX-LR-PCB(75Ω)

$5.75
Tax included
If you would like the English version of the document,please contact us. CAD data can also be created.
contact us
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

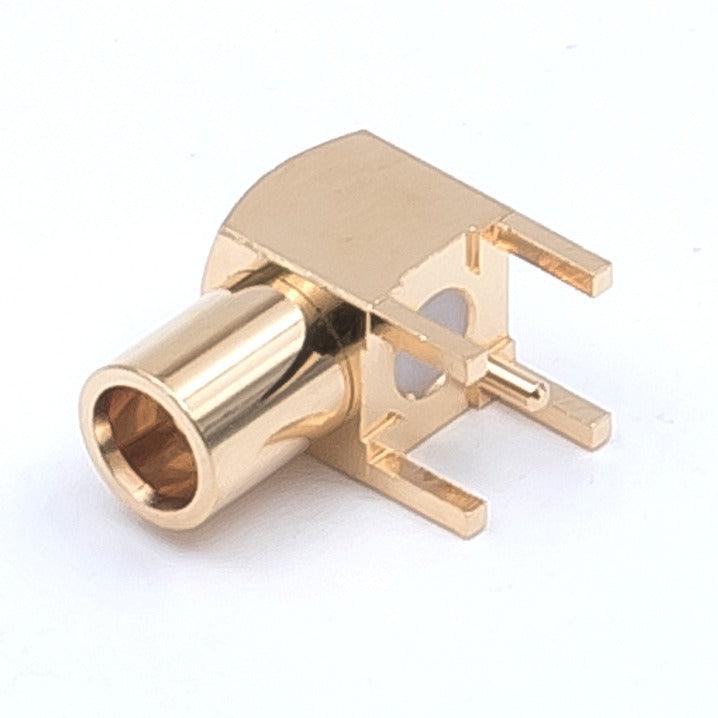

The MCX-LR-PCB(75Ω) is an MCX Receptacle For Printed Circuit Board connector. This connector is suitable for various high-frequency applications. It features a impedance 75Ω, operates up to 3GHz, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (5 mΩ(Max.), and an excellent V.S.W.R 1.5(Max.) at DC~3GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Beryllium Copper/Gold Plating, while the body is Brass/Gold Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Jack
  • Impedance (Ohms)
    75Ω
  • Operating Frequency Range
    3GHz
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    DC 1000V(1 minute)
  • Contact Resistance
    5 mΩ(Max.)
  • V.S.W.R
    1.5(Max.) at DC~3GHz
  • Operating Temperature Range
    -40 to +85°C
