TYCLON

MA-PP

Please inquire from “Contact” for made-to-order products.
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

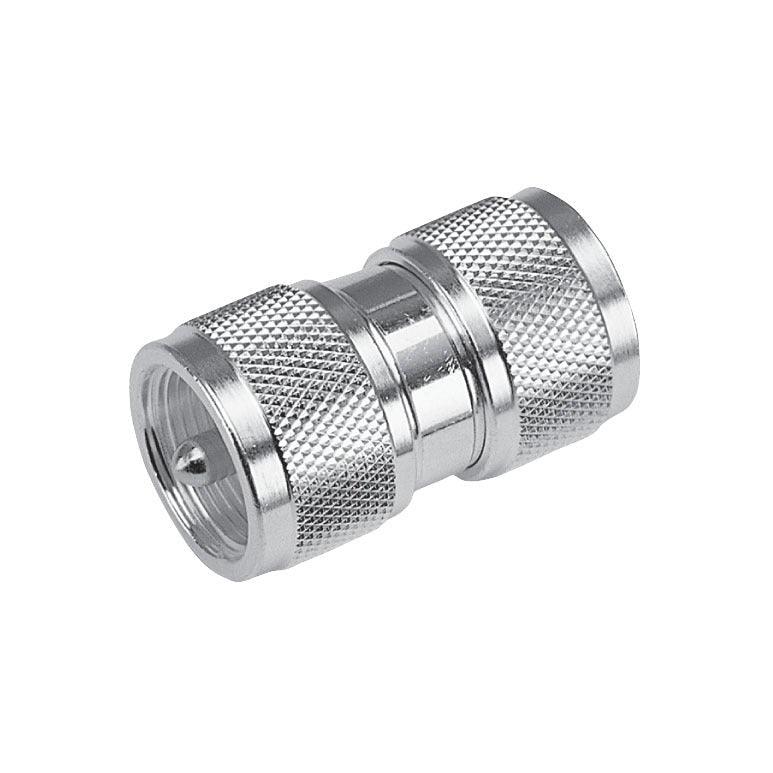

The MA-PP is an M adaptor connector. This connector is suitable for various high-frequency applications. It features a impedance Mismatch, operates up to 200MHz, and has a rated voltage of AC 500V, ensures a high insulation resistance (100MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.). Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Gold Plating, while the body is Brass/Nickel Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Connector Gender
    Plug-Plug
  • Impedance (Ohms)
    Mismatch
  • Rated Voltage AC
    AC 500V
  • Operating Frequency Range
    200MHz
  • Insulation Resistance
    100MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1000V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)
  • Operating Temperature Range
    -40 to +85°C

    • Safe & Secure
