• 50Ω
  • Plug
  • RoHS2
  • Small lot order available
TYCLON

HN-P-17/U

Please inquire from “Contact” for made-to-order products.
If you would like the English version of the document,please contact us. CAD data can also be created.
contact us
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

The HN-P-17/U is an HN Straight Plug connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-17/U cables. It features a impedance 50Ω, operates up to 2000MHz, and has a rated voltage of AC 1500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.). The contact is made of Brass/Silver Plating/Soldering, while the body is Brass/Nickel Plating/Tightening. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Cable type
    RG-17/U
  • Connector Gender
    Plug
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 1500V
  • Operating Frequency Range
    2000MHz
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 5000V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Brass/Silver Plating/Soldering
  • Body
    Brass/Nickel Plating/Tightening

The HN-P-17/U is an HN Straight Plug connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-17/U cables. It features a impedance 50Ω, operates up to 2000MHz, and has a rated voltage of AC 1500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.). The contact is made of Brass/Silver Plating/Soldering, while the body is Brass/Nickel Plating/Tightening. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Featured collection

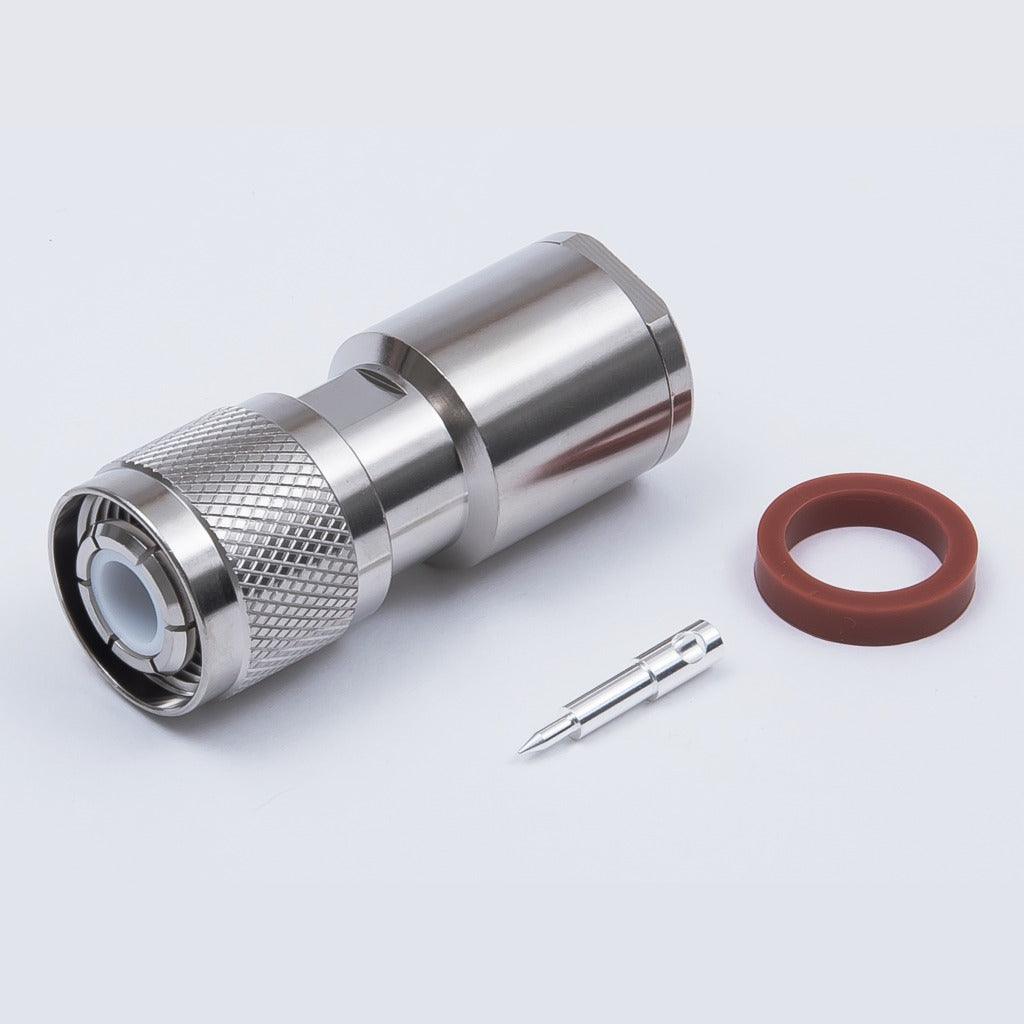

RF Coaxial Connector HN Plug
TYCLON

HN-P-17/U

$0.00

HN Plug

Cable type

RG-17/U

Connector Gender

Plug

Impedance (Ohms)

50Ω

Rated Voltage AC

AC 1500V

Operating Frequency Range

2000MHz

Insulation Resistance

1000MΩ(Min.) at DC 500V

Withstand Voltage

AC 5000V(1 minute)

Contact Resistance

3 mΩ(Max.)

V.S.W.R

N/A

Operating Temperature Range

N/A

Crimping Tool

N/A

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
