TYCLON

H･BNC-BA-323

$6.25
Tax included
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

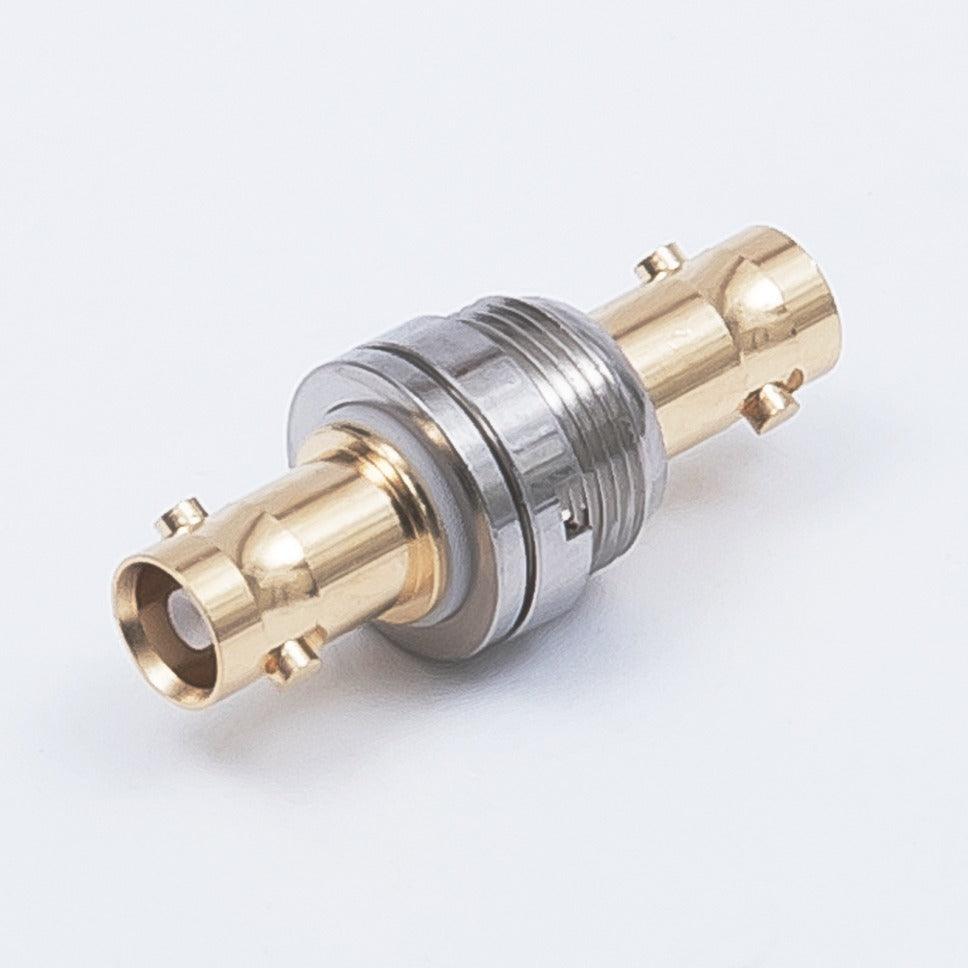

The H･BNC-BA-323 is an H･BNC adaptor connector. This connector is suitable for various high-frequency applications.It features a impedance 75Ω, operates up to 6GHz, and has a rated voltage of AC 170V, ensures a high insulation resistance (10000MΩ(Min.) at DC 500V), a low contact resistance (5 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at DC~6GHz.Withstanding temperatures from -40 to +85°C.The contact is made of Beryllium Copper/Gold Plating, while the body is Brass/Gold Plating.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Jack-Jack
  • Impedance (Ohms)
    75Ω
  • Rated Voltage AC
    AC 170V
  • Operating Frequency Range
    6GHz
  • Insulation Resistance
    10000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 500V(1 minute)
  • Contact Resistance
    5 mΩ(Max.)
  • V.S.W.R
    1.2(Max.) at DC~6GHz
  • Operating Temperature Range
    -40 to +85°C

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Beryllium Copper/Gold Plating
  • Body
    Brass/Gold Plating

The H･BNC-BA-323 is an H･BNC adaptor connector. This connector is suitable for various high-frequency applications.It features a impedance 75Ω, operates up to 6GHz, and has a rated voltage of AC 170V, ensures a high insulation resistance (10000MΩ(Min.) at DC 500V), a low contact resistance (5 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at DC~6GHz.Withstanding temperatures from -40 to +85°C.The contact is made of Beryllium Copper/Gold Plating, while the body is Brass/Gold Plating.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.Available from 1 piece for in-stock items.
