• 75Ω
  • Products in stock
  • Receptacle(PCB)
  • RoHS2
TYCLON

FR-PC

$2.42
Tax included
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

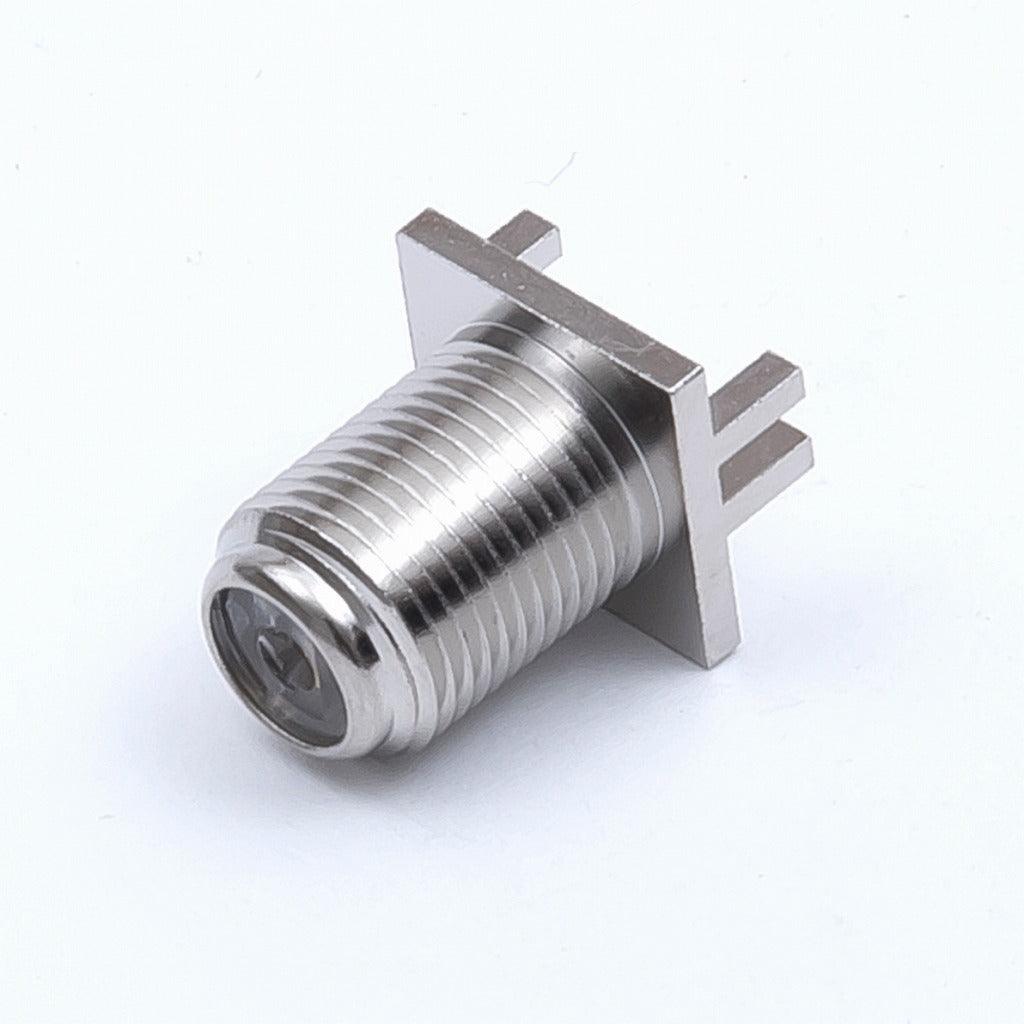

The FR-PC is an F Receptacle For Printed Circuit Board connector. This connector is suitable for various high-frequency applications. It features a impedance 75Ω, operates up to 3000MHz, and has a rated voltage of AC 150V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (5 mΩ(Max.), and an excellent V.S.W.R 1.3(Max.) at 0.3~3000MHz. Withstanding temperatures from -40 to +85°C. The contact is made of Phosphor Bronze/Gold Plating, while the body is Brass/Nickel Plating. Terminal Shape is edge mount. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Jack
  • Impedance (Ohms)
    75Ω
  • Rated Voltage AC
    AC 150V
  • Operating Frequency Range
    3000MHz
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 500V(1 minute)
  • Contact Resistance
    5 mΩ(Max.)
  • V.S.W.R
    1.3(Max.) at 0.3~3000MHz
  • Operating Temperature Range
    -40 to +85°C
  • Terminal Shape
    edge mount
