Description

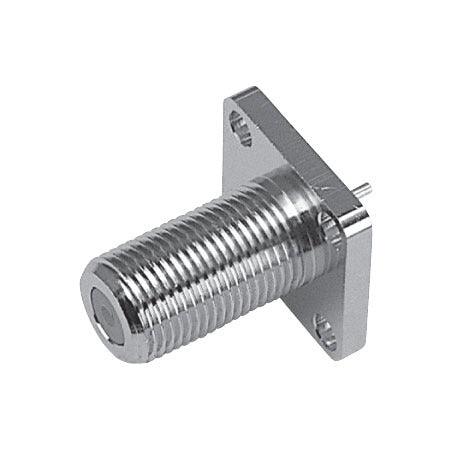

The F-R is an F Receptacle. This connector is suitable for various high-frequency applications. It features a impedance 75Ω, and has a rated voltage of AC 150V, ensures a high insulation resistance (500MΩ(Min.) at DC 500V), a low contact resistance (5 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at DC~1500MHz, 1.4(Max.) at 1500~2150MHz. Withstanding temperatures from -40 to +85°C. The contact is made of Phosphor Bronze/Gold Plating, while the body is Brass/Nickel Plating. Terminal Shape is Round bar. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Connector Gender
    Jack
  • Impedance (Ohms)
    75Ω
  • Rated Voltage AC
    AC 150V
  • Insulation Resistance
    500MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 500V(1 minute)
  • Contact Resistance
    5 mΩ(Max.)
  • V.S.W.R
    1.2(Max.) at DC~1500MHz, 1.4(Max.) at 1500~2150MHz
  • Operating Temperature Range
    -40 to +85°C
  • Terminal Shape
    Round bar

    • Safe & Secure
