• 75Ω
  • Products in stock
  • Receptacle
  • RoHS2
TYCLON

F-R-I

$1.25
Tax included
If you would like the English version of the document,please contact us. CAD data can also be created.
contact us
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

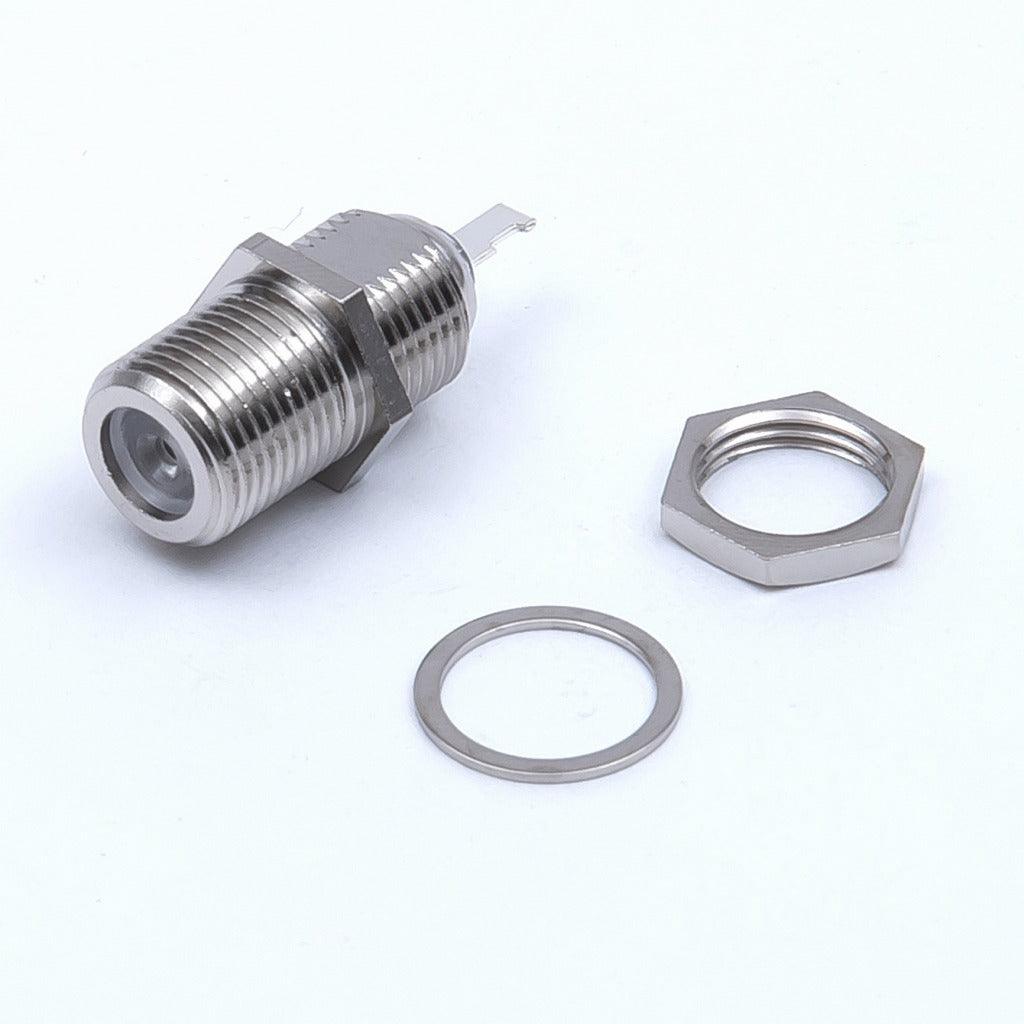

The F-R-I is an F Receptacle. This connector is suitable for various high-frequency applications. It features a impedance 75Ω, and has a rated voltage of AC 150V, ensures a high insulation resistance (500MΩ(Min.) at DC 500V), a low contact resistance (5 mΩ(Max.). Withstanding temperatures from -40 to +85°C. The contact is made of Phosphor Bronze/Silver Plating, while the body is Brass/Nickel Plating. Terminal Shape is solder. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Jack
  • Impedance (Ohms)
    75Ω
  • Rated Voltage AC
    AC 150V
  • Insulation Resistance
    500MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 500V(1 minute)
  • Contact Resistance
    5 mΩ(Max.)
  • Operating Temperature Range
    -40 to +85°C
  • Terminal Shape
    solder

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Phosphor Bronze/Silver Plating
  • Body
    Brass/Nickel Plating

The F-R-I is an F Receptacle. This connector is suitable for various high-frequency applications. It features a impedance 75Ω, and has a rated voltage of AC 150V, ensures a high insulation resistance (500MΩ(Min.) at DC 500V), a low contact resistance (5 mΩ(Max.). Withstanding temperatures from -40 to +85°C. The contact is made of Phosphor Bronze/Silver Plating, while the body is Brass/Nickel Plating. Terminal Shape is solder. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Featured collection

RF Coaxial Connector F Receptacle
TYCLON

F-R-I

$1.25

F Receptacle

Cable type

N/A

Connector Gender

Jack

Impedance (Ohms)

75Ω

Rated Voltage AC

AC 150V

Operating Frequency Range

N/A

Insulation Resistance

500MΩ(Min.) at DC 500V

Withstand Voltage

AC 500V(1 minute)

Contact Resistance

5 mΩ(Max.)

V.S.W.R

N/A

Operating Temperature Range

-40 to +85°C

Crimping Tool

N/A

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

solder
