TYCLON

FP-4

$0.60
Tax included
If you would like the English version of the document,please contact us. CAD data can also be created.
contact us
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

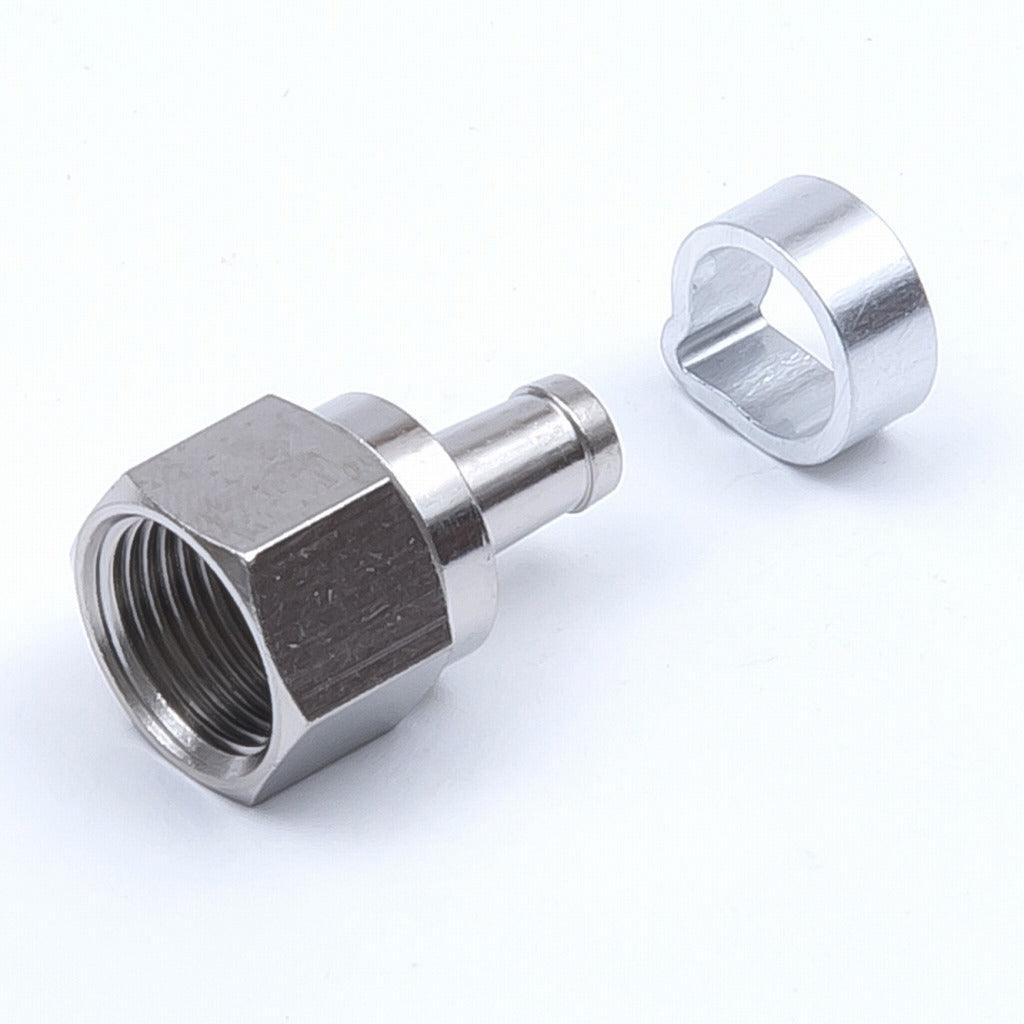

The FP-4 is an F Straight Plug connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits TVECX,TVEFCX,4C-FB,S-4C-FB,RG-59/U cables. It features a impedance 75Ω, and has a rated voltage of AC 150V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (5 mΩ(Max.). Withstanding temperatures from -40 to +85°C. While the body is Brass/Nickel Plating/Crimp. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Cable type
    RG-59/U
  • Connector Gender
    Plug
  • Impedance (Ohms)
    75Ω
  • Rated Voltage AC
    AC 150V
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 500V(1 minute)
  • Contact Resistance
    5 mΩ(Max.)
  • Operating Temperature Range
    -40 to +85°C

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Body
    Brass/Nickel Plating/Crimp

The FP-4 is an F Straight Plug connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits TVECX,TVEFCX,4C-FB,S-4C-FB,RG-59/U cables. It features a impedance 75Ω, and has a rated voltage of AC 150V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (5 mΩ(Max.). Withstanding temperatures from -40 to +85°C. While the body is Brass/Nickel Plating/Crimp. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.
