TYCLON

BNC-0101H

$73.17
Tax included
You must register and log in to download
2D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

The BNC-0101H is an Impedance Converter. Impedance converter for BNC50Ω plug to BNC75Ω jack. It features a operates up to 3.5GHz, and an excellent V.S.W.R 1.3(Max.) at 10~50MHz, 1.2(Max.) at 50MHz~1000MHz. Withstanding temperatures from -20～+50℃. The contact is made of Silver Plating, while the body is Nickel Plating. Rated Power is 0.5W. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Plug-Jack
  • Impedance (Ohms)
    50Ω⇔75Ω
  • Operating Frequency Range
    10～1000MHz
  • V.S.W.R
    1.3(Max.) at 10~50MHz, 1.2(Max.) at 50MHz~1000MHz
  • Operating Temperature Range
    -20～+50℃
  • Rated Power (W)
    0.5W

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Silver Plating
  • Body
    Nickel Plating

The BNC-0101H is an Impedance Converter. Impedance converter for BNC50Ω plug to BNC75Ω jack. It features a operates up to 3.5GHz, and an excellent V.S.W.R 1.3(Max.) at 10~50MHz, 1.2(Max.) at 50MHz~1000MHz. Withstanding temperatures from -20～+50℃. The contact is made of Silver Plating, while the body is Nickel Plating. Rated Power is 0.5W. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Featured collection

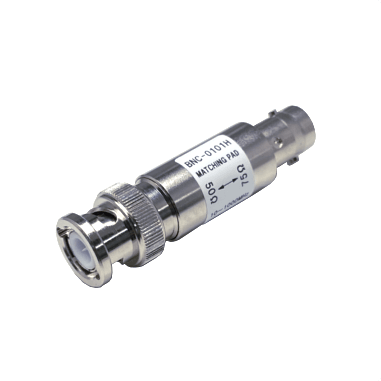

RF Coaxial Connector BNC Coaxial Impedance Converter
TYCLON

BNC-0101H

$73.17

50Ω⇔75Ω Coaxial Impedance Converter

Cable type

N/A

Connector Gender

Plug-Jack

Impedance (Ohms)

50Ω⇔75Ω

Rated Voltage AC

N/A

Operating Frequency Range

10～1000MHz

Insulation Resistance

N/A

Withstand Voltage

N/A

Contact Resistance

N/A

V.S.W.R

1.3(Max.) at 10~50MHz, 1.2(Max.) at 50MHz~1000MHz

Operating Temperature Range

-20～+50℃

Crimping Tool

N/A

Rated Power (W)

0.5W

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
