• 50Ω
  • Cable Assembly
  • RoHS2
  • Small lot order available
TYCLON

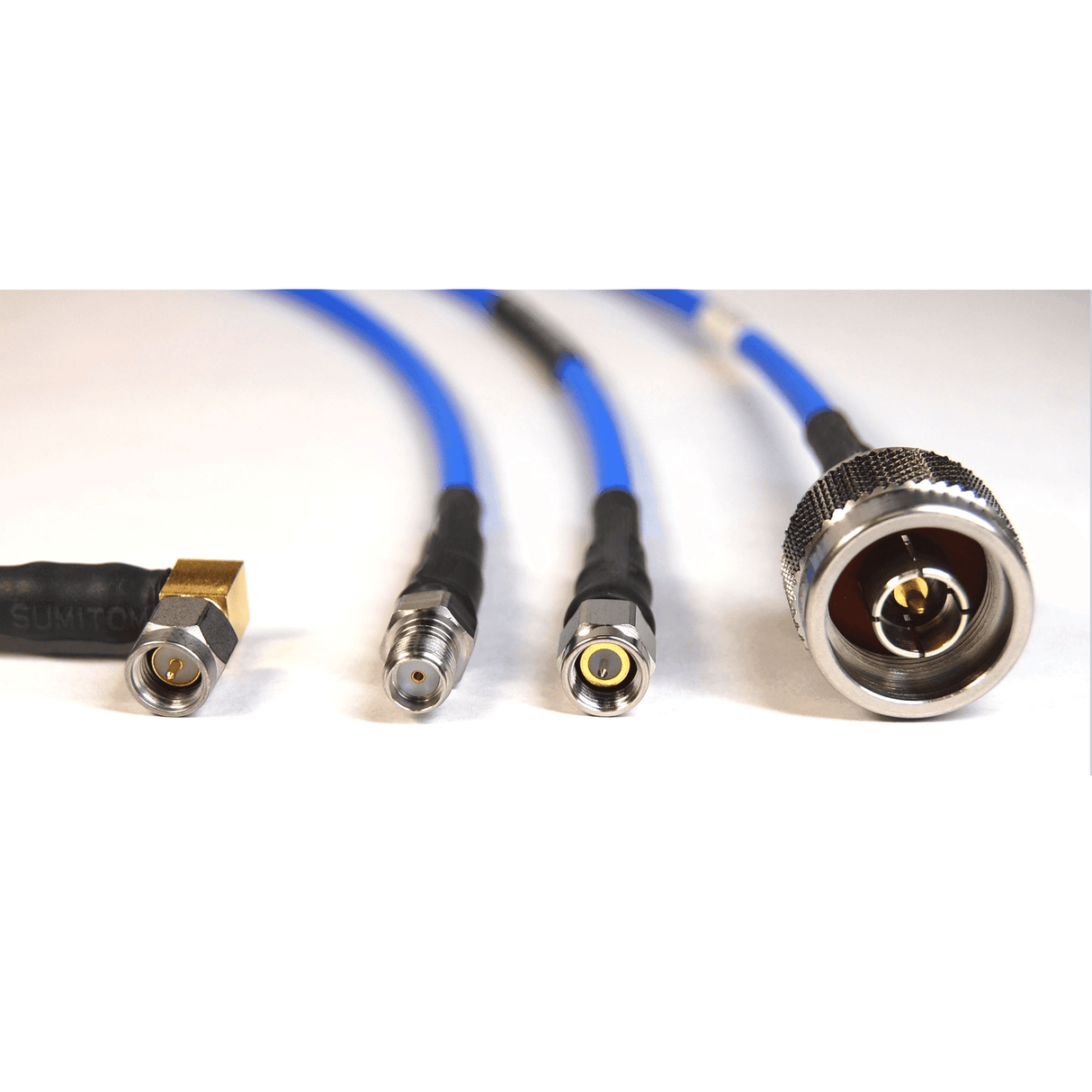

TC-038 Low loss, Low reflection

Please inquire from “Contact” for made-to-order products.
If you would like the English version of the document,please contact us. CAD data can also be created.
contact us
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

The TC-038 Low loss, Low reflection is an High Frequency Test Cables . It features a impedance 50Ω, operates up to 26.5GHz, and an excellent V.S.W.R 1.2(Max.) at typ)).Withstanding temperatures from -35 to +125°C.Rated Power is 400W@1GHz, 150W@6GHz.Attenuation is 0.37dB/m@1GHz (TYP).We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Impedance (Ohms)
    50Ω
  • Operating Frequency Range
    26.5GHz
  • V.S.W.R
    1.2(Max.) at typ)
  • Operating Temperature Range
    -35 to +125°C
  • Rated Power (W)
    400W@1GHz, 150W@6GHz
  • Attenuation (dB)
    0.37dB/m@1GHz (TYP)

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment

The TC-038 Low loss, Low reflection is an High Frequency Test Cables . It features a impedance 50Ω, operates up to 26.5GHz, and an excellent V.S.W.R 1.2(Max.) at typ)).Withstanding temperatures from -35 to +125°C.Rated Power is 400W@1GHz, 150W@6GHz.Attenuation is 0.37dB/m@1GHz (TYP).We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Featured collection

High Frequency Test Cables Cable Assembly
TYCLON

TC-038 Low loss, Low reflection

$0.00

High Frequency Test Cables Cable Assembly

Cable type

N/A

Connector Gender

N/A

Impedance (Ohms)

50Ω

Rated Voltage AC

N/A

Operating Frequency Range

26.5GHz

Insulation Resistance

N/A

Withstand Voltage

N/A

Contact Resistance

N/A

V.S.W.R

1.2(Max.) at typ)

Operating Temperature Range

-35 to +125°C

Crimping Tool

N/A

Rated Power (W)

400W@1GHz, 150W@6GHz

Attenuation (dB)

0.37dB/m@1GHz (TYP)

Length (m)

N/A

Terminal Shape

N/A
