NP-BNCJ-4G

$12.75
Tax included

Online purchases are unavailable during our summer holiday closure. We appreciate your patience until August 18th (Japan Time) and apologize for any inconvenience.

If you would like the English version of the document,please contact us. CAD data can also be created.
contact us
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

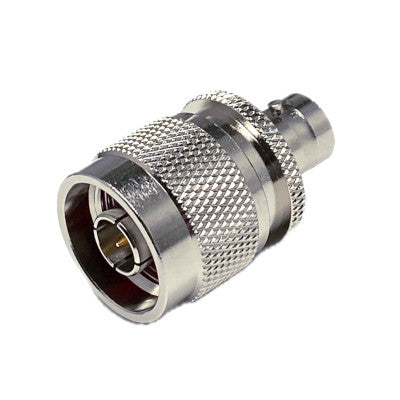

The NP-BNCJ-4G is an In/Between Series Adaptors . This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 4GHz, and has a rated voltage of AC 500V, ensures a high insulation resistance (1500MΩ(Min.)), a low contact resistance (Center : 5 mΩ(Max.), Outer : 2.5 mΩ(Max.)), and an excellent V.S.W.R 1.3(Max.) at DC~4GHz. Withstanding temperatures from -65 to +165°C. The contact is made of Phosphor Bronze/Gold Plating, while the body is Brass/Nickel Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Plug-Jack
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 500V
  • Operating Frequency Range
    4GHz
  • Insulation Resistance
    5000MΩ(Min.)
  • Withstand Voltage
    AC 1500V(1 minute)
  • Contact Resistance
    Center : 5 mΩ(Max.), Outer : 2.5 mΩ(Max.),
  • V.S.W.R
    1.3(Max.) at DC~4GHz
  • Operating Temperature Range
    -65 to +165°C

    • Safe & Secure
