TYCLON

BNCP-TRBJ2

$34.20
Tax included
You must register and log in to download
2D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

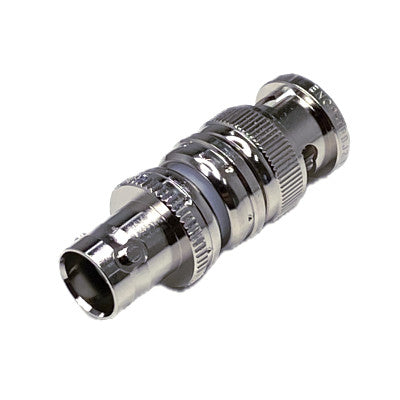

A conversion connector between a BNC plug and a TRB jack.
TRB is a triaxial connector, also known as triple coaxial.
It is divided into three products according to circuit configuration.
The circuit configuration of “BNCP-TRBJ2” is BNC outer conductor - TRB intermediate conductor.

Specifications
  • Connector Gender
    Plug-Jack
  • Impedance (Ohms)
    Mismatch
  • Rated Voltage AC
    AC 500V
  • Insulation Resistance
    1000MΩ(Min.) at DC 250V
  • Withstand Voltage
    AC 500V(1 minute)
  • Contact Resistance
    Between inner conductors: 3mΩ(Max.),</br>Between intermediate conductor: 0.5mΩ(Max.)(TRB),</br> Between outer conductors: 1mΩ(Max.)(TRB),</br> Between outer conductors: 3mΩ(Max.)(BNC)
  • Operating Temperature Range
    -40～+85℃

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Beryllium Copper/Gold Plating
  • Body
    Brass/Nickel Plating

A conversion connector between a BNC plug and a TRB jack.
TRB is a triaxial connector, also known as triple coaxial.
It is divided into three products according to circuit configuration.
The circuit configuration of “BNCP-TRBJ2” is BNC outer conductor - TRB intermediate conductor.
