TYCLON

SMAJ-A-SMBJ

$10.83
Tax included
You must register and log in to download
2D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

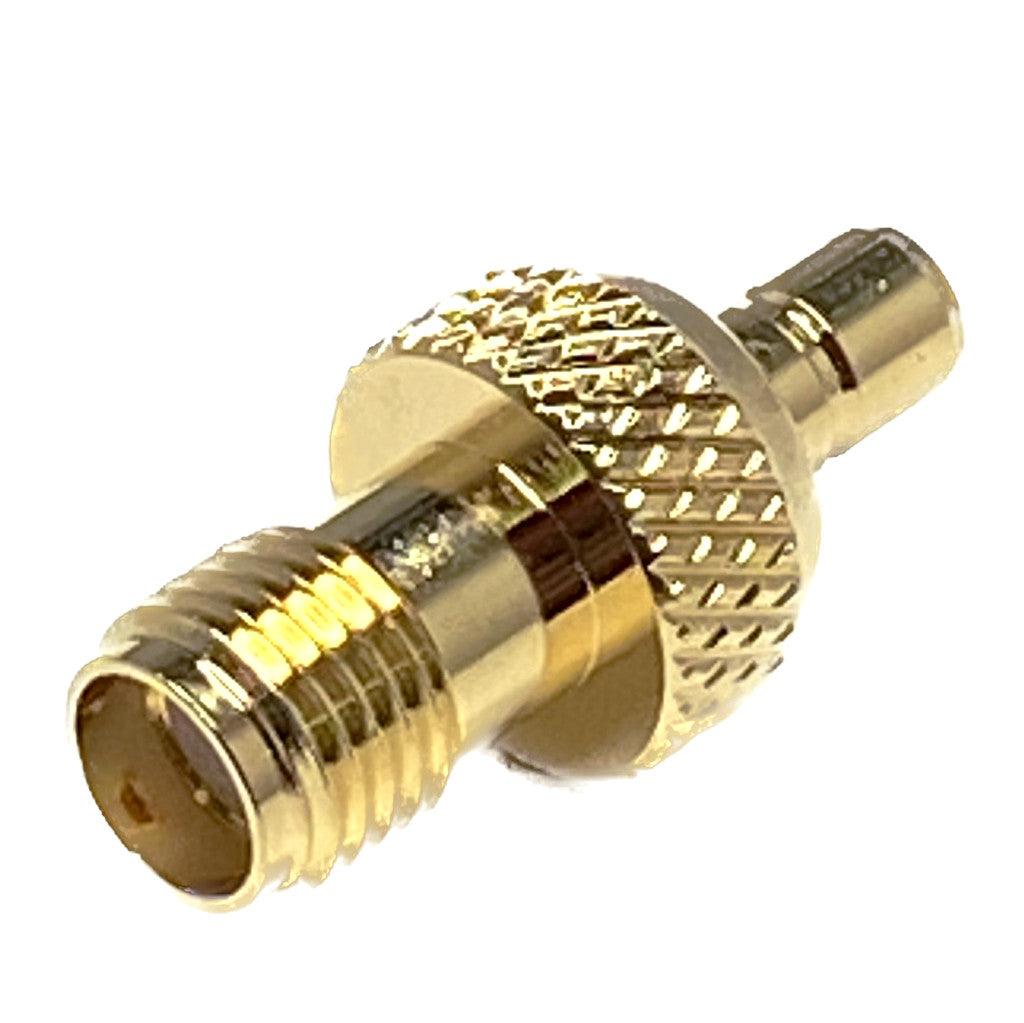

The SMAJ-A-SMBJ is an In/Between Series Adaptors . This connector is suitable for various high-frequency applications.It features a impedance 50Ω, operates up to 4GHz, and has a rated voltage of AC 250V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (Between inner conductors: 6 mΩ(Max.),between outer conductors: 2.0 mΩ(Max.), and an excellent V.S.W.R 1.3(Max.) at DC~4GHz.Withstanding temperatures from -40～+85℃.The contact is made of Beryllium Copper/Gold Plating, while the body is Brass/Gold Plating.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Jack-Plug
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 250V
  • Operating Frequency Range
    4GHz
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1000V(1 minute)
  • Contact Resistance
    Between inner conductors: 6 mΩ(Max.),</br>between outer conductors: 2.0 mΩ(Max.)
  • V.S.W.R
    1.3(Max.) at DC~4GHz
  • Operating Temperature Range
    -40～+85℃
