TYCLON

K292J-A-SMPP(LD)

$81.67
Tax included
You must register and log in to download
2D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

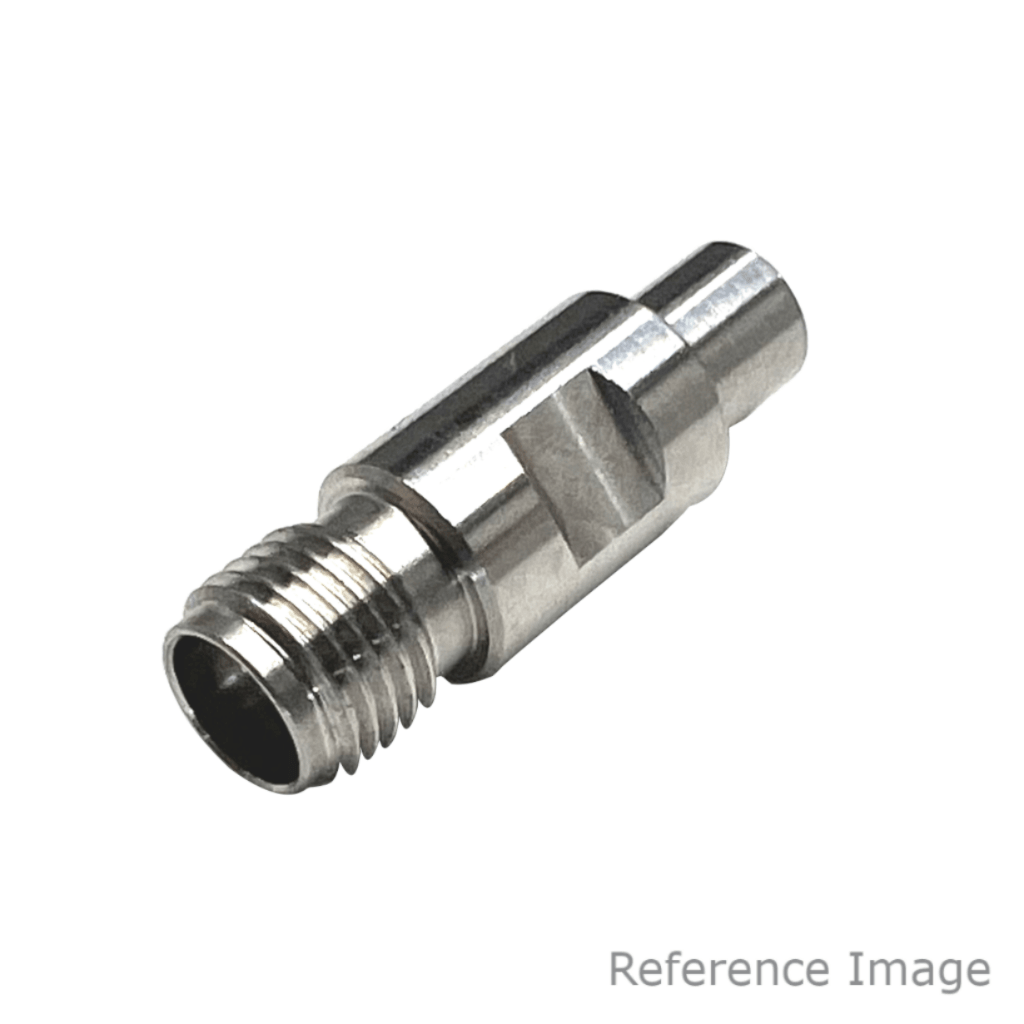

The K292J-A-SMPP(LD) is an In/Between Series Adaptors . This connector is suitable for various high-frequency applications.It features a impedance 50Ω, operates up to 40 GHz, and has a rated voltage of AC 170V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (SMP (Between inner conductors: 6.0 mΩ(Max.),Between outer conductors: 3.0 mΩ(Max.)),2.92 (Between inner conductors: 3.0 mΩ(Max.),Between outer conductors: 2.0 mΩ(Max.)), and an excellent return loss >20 dB at DC~26.5 GHz, >18 dB at 26.5 GHz~40 GHz ).Withstanding temperatures from -55 to +125°C.The contact is made of Beryllium Copper/Gold Plating, while the body is Stainless/Passivate Treatment.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Jack-Plug
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 170V
  • Operating Frequency Range
    40 GHz
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 500V(1 minute)
  • Contact Resistance
    SMP (Between inner conductors: 6.0 mΩ(Max.),</br>Between outer conductors: 3.0 mΩ(Max.)),</br>2.92 (Between inner conductors: 3.0 mΩ(Max.),</br>Between outer conductors: 2.0 mΩ(Max.))
  • V.S.W.R
    >20 dB from DC~26.5 GHz, >18 dB from >26.5 GHz~40 GHz (return loss)
  • Operating Temperature Range
    -55 to +125°C

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Beryllium Copper/Gold Plating
  • Body
    Stainless/Passivate Treatment

The K292J-A-SMPP(LD) is an In/Between Series Adaptors . This connector is suitable for various high-frequency applications.It features a impedance 50Ω, operates up to 40 GHz, and has a rated voltage of AC 170V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (SMP (Between inner conductors: 6.0 mΩ(Max.),Between outer conductors: 3.0 mΩ(Max.)),2.92 (Between inner conductors: 3.0 mΩ(Max.),Between outer conductors: 2.0 mΩ(Max.)), and an excellent return loss >20 dB at DC~26.5 GHz, >18 dB at 26.5 GHz~40 GHz ).Withstanding temperatures from -55 to +125°C.The contact is made of Beryllium Copper/Gold Plating, while the body is Stainless/Passivate Treatment.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.Available from 1 piece for in-stock items.

Featured collection

Between Series Adaptors Adaptor
TYCLON

K292J-A-SMPP(LD)

$81.67

Between Series Adaptors Adaptor

Cable type

N/A

Connector Gender

Jack-Plug

Impedance (Ohms)

50Ω

Rated Voltage AC

AC 170V

Operating Frequency Range

40 GHz

Insulation Resistance

5000MΩ(Min.) at DC 500V

Withstand Voltage

AC 500V(1 minute)

Contact Resistance

SMP (Between inner conductors: 6.0 mΩ(Max.),</br>Between outer conductors: 3.0 mΩ(Max.)),</br>2.92 (Between inner conductors: 3.0 mΩ(Max.),</br>Between outer conductors: 2.0 mΩ(Max.))

V.S.W.R

>20 dB from DC~26.5 GHz, >18 dB from >26.5 GHz~40 GHz (return loss)

Operating Temperature Range

-55 to +125°C

Crimping Tool

N/A

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
