• 50Ω
  • Adaptor
  • Products in stock
  • RoHS2
  • Waterproof
TYCLON

4.3/10J-A-EIA7/8

$68.75
Tax included
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

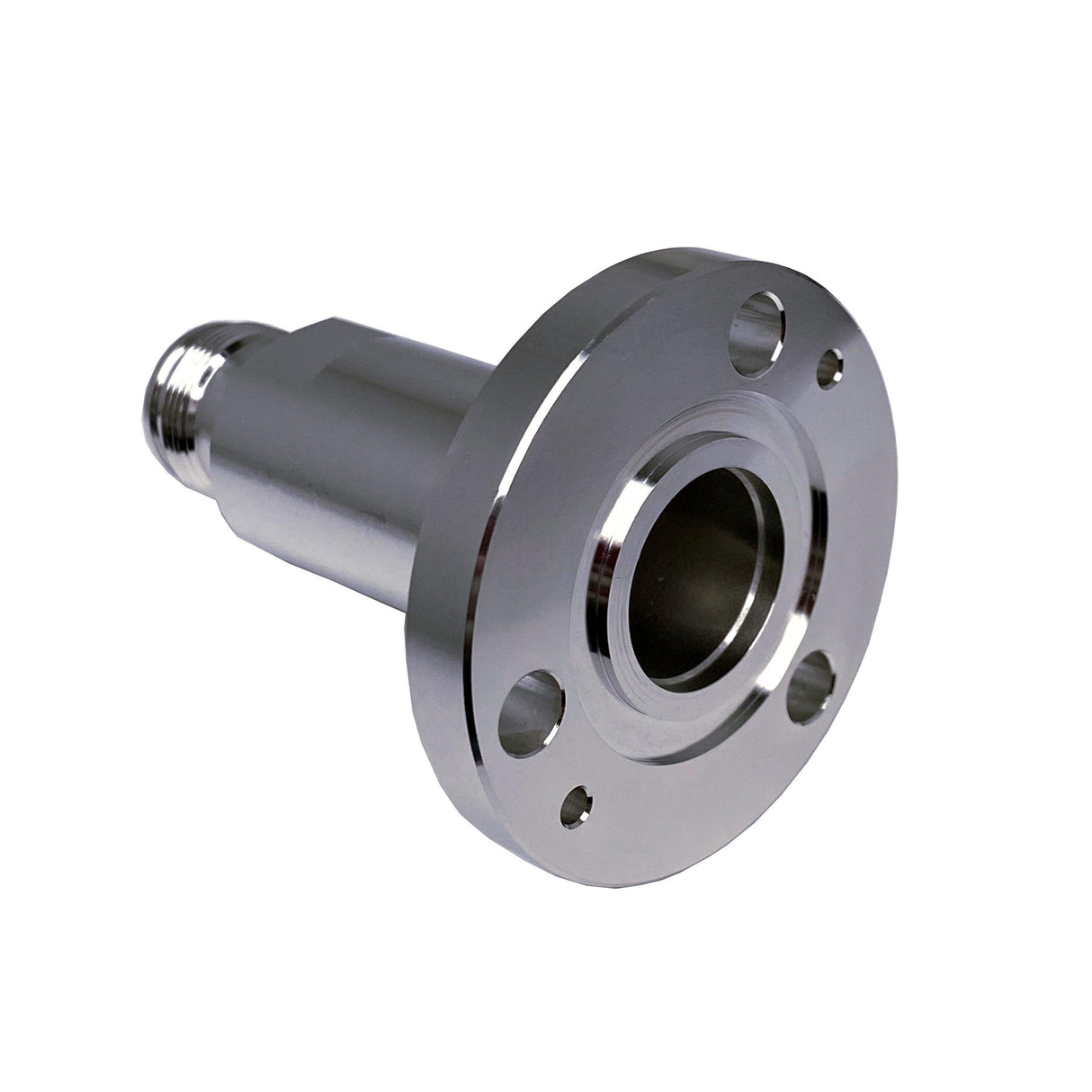

The 4.3/10J-A-EIA7/8 is an In/Between Series Adaptors . This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 6GHz, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (1mΩ(Max.) (4.3/10),1.5mΩ(Max.) (EIA7/8), and an excellent V.S.W.R 1.2(Max.) at DC~5 GHz, 1.3(Max.) at 5~6 GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Phosphor Bronze/Silver Plating, while the body is Brass/Ternary Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Jack-Flange
  • Impedance (Ohms)
    50Ω
  • Operating Frequency Range
    6GHz
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 2500V(1 minute)
  • Contact Resistance
    1mΩ(Max.) (4.3/10),</br>1.5mΩ(Max.) (EIA7/8)
  • V.S.W.R
    1.2(Max.) at DC~5 GHz, 1.3(Max.) at 5~6 GHz
  • Operating Temperature Range
    -40 to +85°C

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Phosphor Bronze/Silver Plating
  • Body
    Brass/Ternary Plating

The 4.3/10J-A-EIA7/8 is an In/Between Series Adaptors . This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 6GHz, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (1mΩ(Max.) (4.3/10),1.5mΩ(Max.) (EIA7/8), and an excellent V.S.W.R 1.2(Max.) at DC~5 GHz, 1.3(Max.) at 5~6 GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Phosphor Bronze/Silver Plating, while the body is Brass/Ternary Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Featured collection

RF Coaxial Connector Between Series Adaptors Adaptor
TYCLON

4.3/10J-A-EIA7/8

$68.75

Between Series Adaptors Adaptor

Cable type

N/A

Connector Gender

Jack-Flange

Impedance (Ohms)

50Ω

Rated Voltage AC

N/A

Operating Frequency Range

6GHz

Insulation Resistance

5000MΩ(Min.) at DC 500V

Withstand Voltage

AC 2500V(1 minute)

Contact Resistance

1mΩ(Max.) (4.3/10),</br>1.5mΩ(Max.) (EIA7/8)

V.S.W.R

1.2(Max.) at DC~5 GHz, 1.3(Max.) at 5~6 GHz

Operating Temperature Range

-40 to +85°C

Crimping Tool

N/A

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
