TYCLON

NXTJ-4.3/10P

$27.92
Tax included
You must register and log in to download
2D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

The NXTJ-4.3/10P is an In/Between Series Adaptors . This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 6GHz, and has a rated voltage of AC 500V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (NXT (1.5 mΩ(Max.)),4.3/10 (1 mΩ(Max.)), and an excellent V.S.W.R 1.2(Max.) at DC~6GHz. Withstanding temperatures from -45 to +85°C. The contact is made of Beryllium Copper/Silver Plating, while the body is Brass/Ternary Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Plug-Jack
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 500V
  • Operating Frequency Range
    6GHz
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 750V(1 minute)
  • Contact Resistance
    NXT (1.5 mΩ(Max.)),</br>4.3/10 (1 mΩ(Max.))
  • V.S.W.R
    1.2(Max.) at DC~6GHz
  • Operating Temperature Range
    -45 to +85°C

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Beryllium Copper/Silver Plating
  • Body
    Brass/Ternary Plating

The NXTJ-4.3/10P is an In/Between Series Adaptors . This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 6GHz, and has a rated voltage of AC 500V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (NXT (1.5 mΩ(Max.)),4.3/10 (1 mΩ(Max.)), and an excellent V.S.W.R 1.2(Max.) at DC~6GHz. Withstanding temperatures from -45 to +85°C. The contact is made of Beryllium Copper/Silver Plating, while the body is Brass/Ternary Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Featured collection

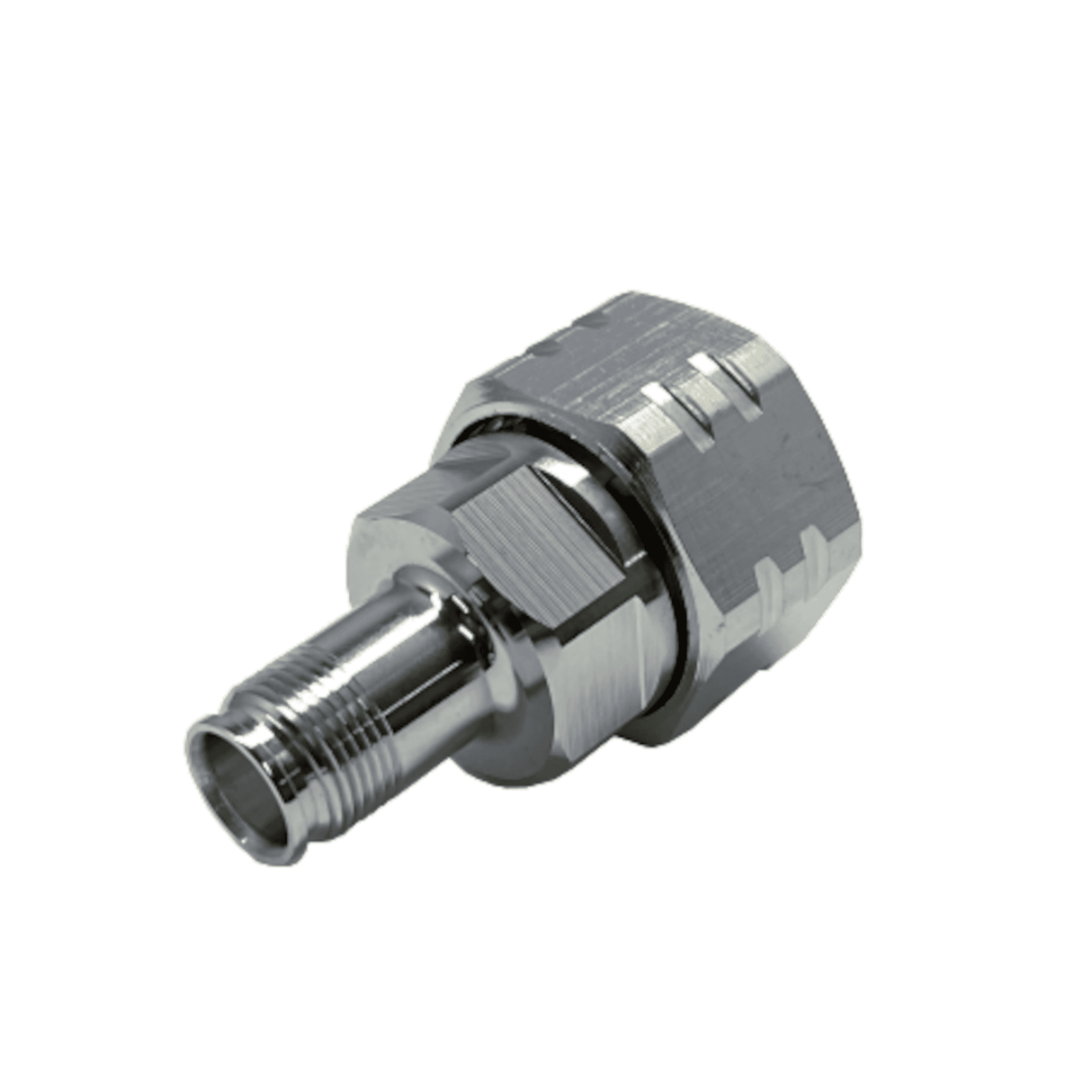

RF Coaxial Connector Between Series Adaptors Adaptor
