FP-NCJ-HG

Please inquire from “Contact” for made-to-order products.
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

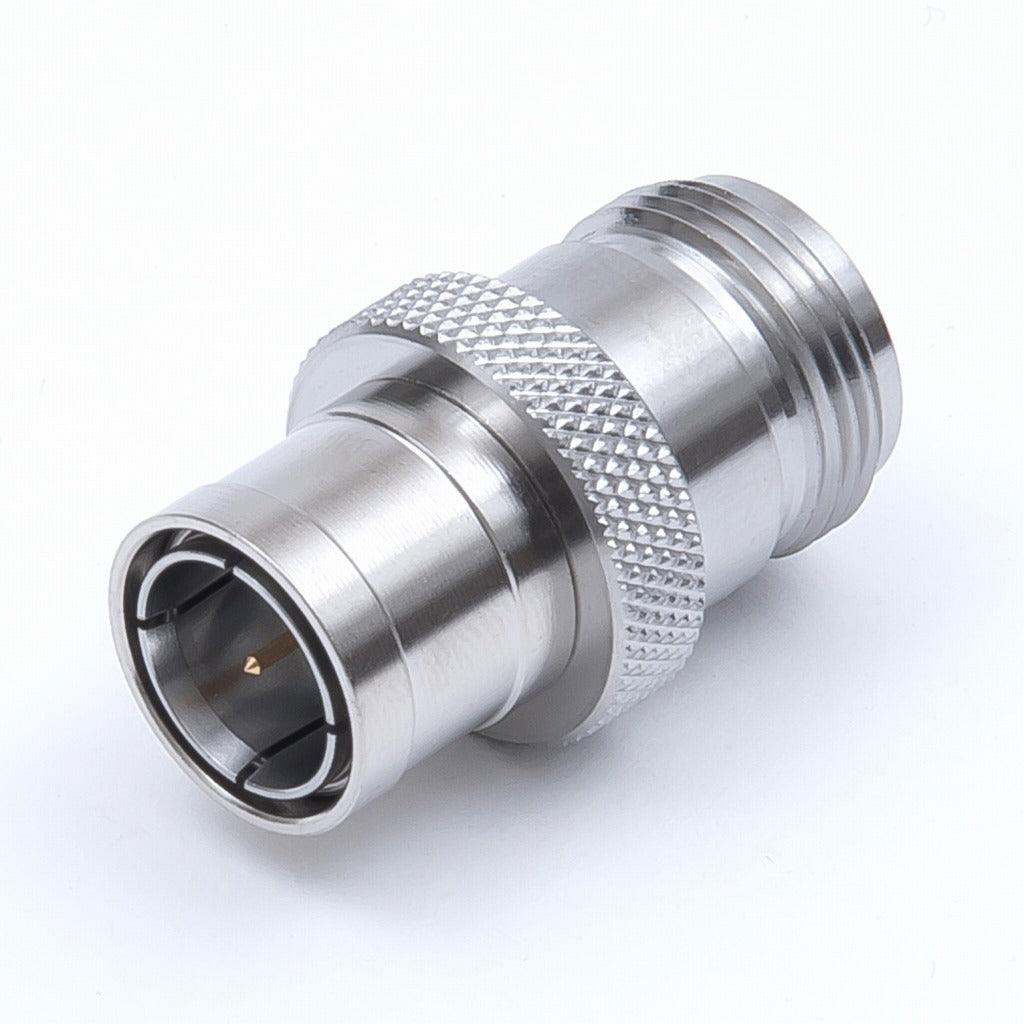

The FP-NCJ-HG is an In/Between Series Adaptors . This connector is suitable for various high-frequency applications. It features a impedance 75Ω, operates up to 3000MHz, and has a rated voltage of AC 150V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (5 mΩ(Max.), and an excellent V.S.W.R 1.05(Max.) at 0.3~3000MHz. Withstanding temperatures from -40 to +85°C. The contact is made of Beryllium Copper/Gold Plating, while the body is Stainless/Passivate Treatment. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Connector Gender
    Plug-Jack
  • Impedance (Ohms)
    75Ω
  • Rated Voltage AC
    AC 150V
  • Operating Frequency Range
    3000MHz
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 500V(1 minute)
  • Contact Resistance
    5 mΩ(Max.)
  • V.S.W.R
    1.05(Max.) at 0.3~3000MHz
  • Operating Temperature Range
    -40 to +85°C
