TYCLON

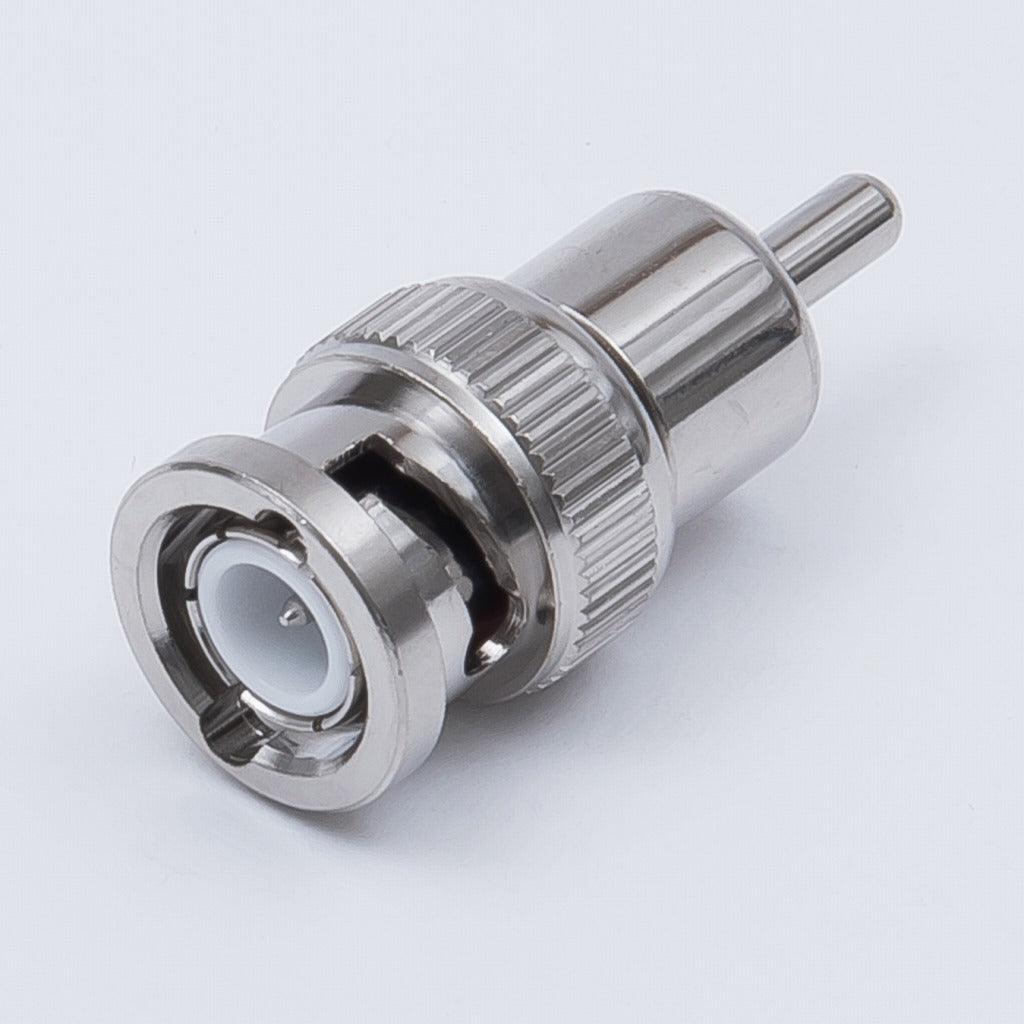

BNCP-RCAP

$2.92
Tax included
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

The BNCP-RCAP is an In/Between Series Adaptors . This connector is suitable for various high-frequency applications.It features a impedance Mismatch, and has a rated voltage of AC 500V, ensures a high insulation resistance (100MΩ(Min.) at DC 500V), a low contact resistance (5 mΩ(Max.), and an excellent V.S.W.R 1.4(Max.) at DC~150MHz.Withstanding temperatures from -20 to +60°C.The contact is made of Brass/Nickel Plating, while the body is Brass/Nickel Plating.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Plug-Plug
  • Impedance (Ohms)
    Mismatch
  • Rated Voltage AC
    AC 500V
  • Insulation Resistance
    100MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 500V(1 minute)
  • Contact Resistance
    5 mΩ(Max.)
  • V.S.W.R
    1.4(Max.) at DC~150MHz
  • Operating Temperature Range
    -20 to +60°C

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Brass/Nickel Plating
  • Body
    Brass/Nickel Plating

The BNCP-RCAP is an In/Between Series Adaptors . This connector is suitable for various high-frequency applications.It features a impedance Mismatch, and has a rated voltage of AC 500V, ensures a high insulation resistance (100MΩ(Min.) at DC 500V), a low contact resistance (5 mΩ(Max.), and an excellent V.S.W.R 1.4(Max.) at DC~150MHz.Withstanding temperatures from -20 to +60°C.The contact is made of Brass/Nickel Plating, while the body is Brass/Nickel Plating.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.Available from 1 piece for in-stock items.

Featured collection

Between Series Adaptors Adaptor
TYCLON

BNCP-RCAP

$2.92

Between Series Adaptors Adaptor

Cable type

N/A

Connector Gender

Plug-Plug

Impedance (Ohms)

Mismatch

Rated Voltage AC

AC 500V

Operating Frequency Range

N/A

Insulation Resistance

100MΩ(Min.) at DC 500V

Withstand Voltage

AC 500V(1 minute)

Contact Resistance

5 mΩ(Max.)

V.S.W.R

1.4(Max.) at DC~150MHz

Operating Temperature Range

-20 to +60°C

Crimping Tool

N/A

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
