• 50Ω
  • Adaptor
  • Products in stock
  • RoHS2
TYCLON

NP-SMAP-18G

$22.83
Tax included
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

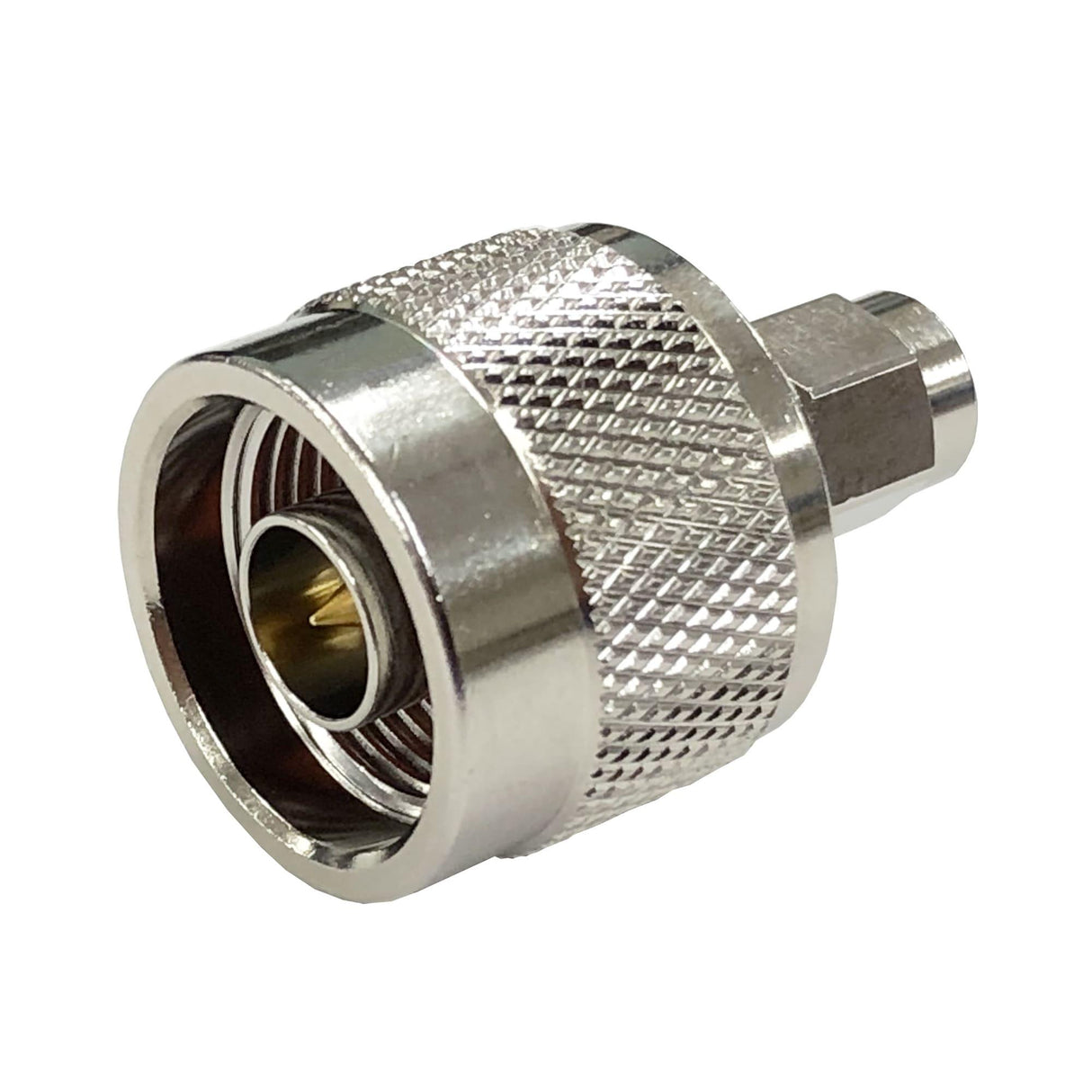

The NP-SMAP-18G is an In/Between Series Adaptors . This connector is suitable for various high-frequency applications.It features a impedance 50Ω, operates up to 18.0 GHz, and has a rated voltage of AC 500V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.15(Max.) at DC~9 GHz, 1.2(Max.) at 9~15 GHz, 1.3(Max.) at 15~18 GHz.Withstanding temperatures from -40 to +85°C.The contact is made of Brass/Gold Plating, while the body is Brass/Nickel Plating.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Plug-Plug
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 500V
  • Operating Frequency Range
    18.0 GHz
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1000V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)
  • V.S.W.R
    1.15(Max.) at DC~9 GHz, 1.2(Max.) at 9~15 GHz, 1.3(Max.) at 15~18 GHz
  • Operating Temperature Range
    -40 to +85°C

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Brass/Gold Plating
  • Body
    Brass/Nickel Plating

The NP-SMAP-18G is an In/Between Series Adaptors . This connector is suitable for various high-frequency applications.It features a impedance 50Ω, operates up to 18.0 GHz, and has a rated voltage of AC 500V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.15(Max.) at DC~9 GHz, 1.2(Max.) at 9~15 GHz, 1.3(Max.) at 15~18 GHz.Withstanding temperatures from -40 to +85°C.The contact is made of Brass/Gold Plating, while the body is Brass/Nickel Plating.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.Available from 1 piece for in-stock items.
