TYCLON

PAL-J-FJ

Please inquire from “Contact” for made-to-order products.
If you would like the English version of the document,please contact us. CAD data can also be created.
contact us
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.CAD data can also be created.

Description

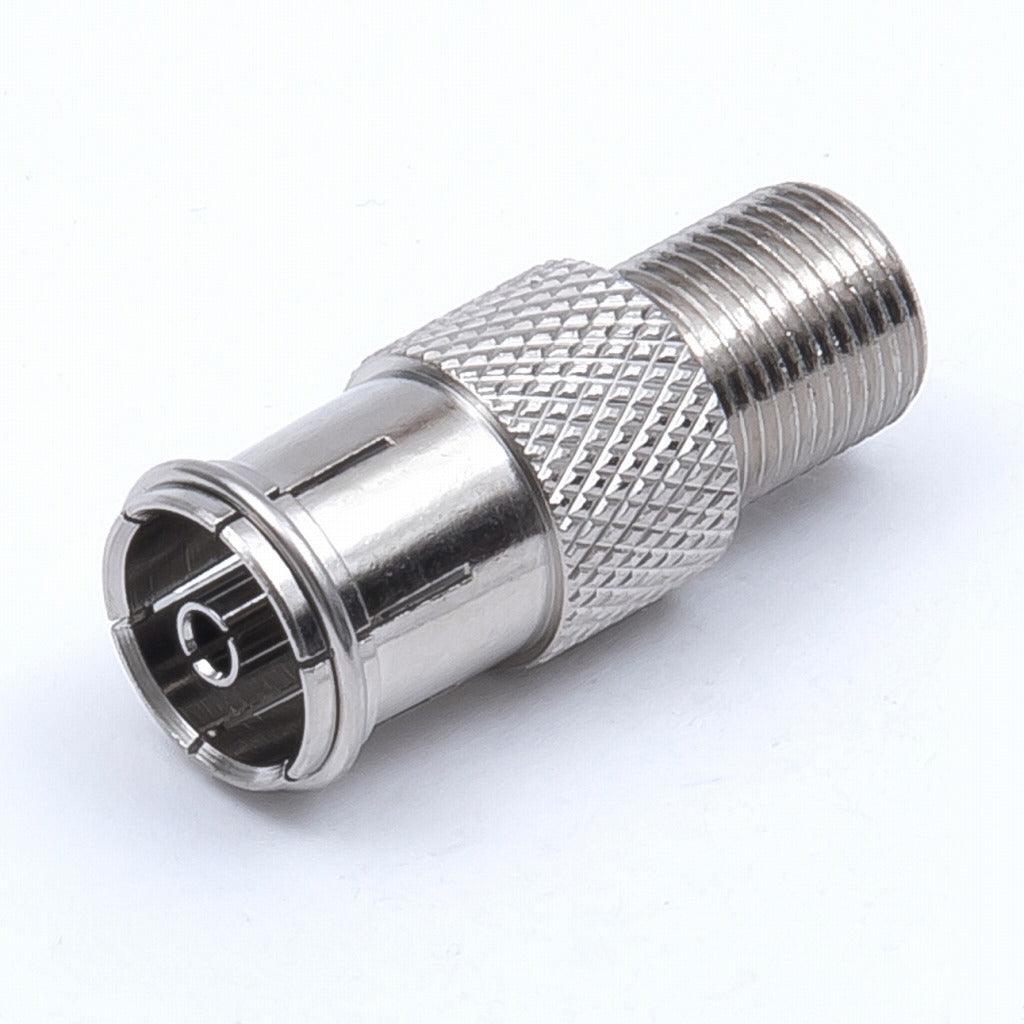

The PAL-J-FJ is an In/Between Series Adaptors . This connector is suitable for various high-frequency applications. It features a impedance Mismatch, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (5 mΩ(Max.). Withstanding temperatures from -20 to +65°C. The contact is made of Brass/Phosphor Bronze/Nickel Plating, while the body is Brass/Nickel Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Learn more about the In/Between Series RF Adapters in our technical guide.

Specifications
  • Connector Gender
    Jack-Jack
  • Impedance (Ohms)
    Mismatch
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 500V(1 minute)
  • Contact Resistance
    5 mΩ(Max.)
  • Operating Temperature Range
    -20 to +65°C

    • We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Brass/Phosphor Bronze/Nickel Plating
  • Body
    Brass/Nickel Plating

The PAL-J-FJ is an In/Between Series Adaptors . This connector is suitable for various high-frequency applications. It features a impedance Mismatch, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (5 mΩ(Max.). Withstanding temperatures from -20 to +65°C. The contact is made of Brass/Phosphor Bronze/Nickel Plating, while the body is Brass/Nickel Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Learn more about the In/Between Series RF Adapters in our technical guide.

Featured collection

RF Coaxial Connector Between Series Adaptors Adaptor
TYCLON

PAL-J-FJ

$0.00

Between Series Adaptors Adaptor

Cable type

N/A

Connector Gender

Jack-Jack

Impedance (Ohms)

Mismatch

Rated Voltage AC

N/A

Operating Frequency Range

N/A

Insulation Resistance

5000MΩ(Min.) at DC 500V

Withstand Voltage

AC 500V(1 minute)

Contact Resistance

5 mΩ(Max.)

V.S.W.R

N/A

Operating Temperature Range

-20 to +65°C

Crimping Tool

N/A

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
