• 75Ω
  • Made to order product
  • Receptacle
  • RoHS2
TYCLON

BNCC-224R

Please inquire from “Contact” for made-to-order products.
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

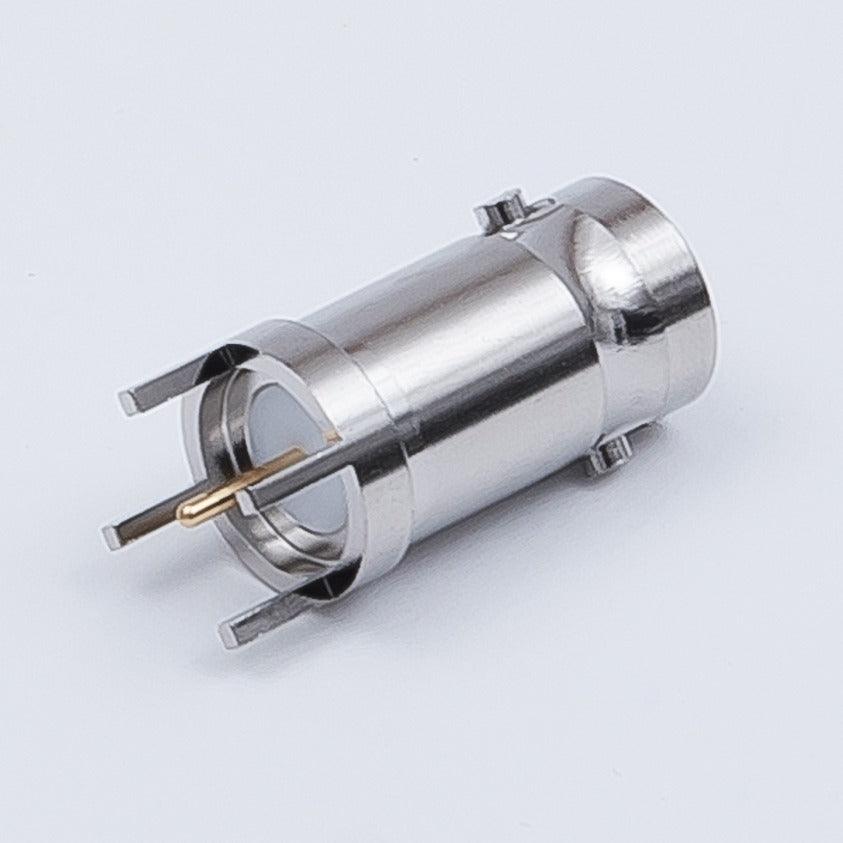

The BNCC-224R is an BNC75Ω Receptacle. This connector is suitable for various high-frequency applications. It features a impedance 75Ω, operates up to 2400MHz, and has a rated voltage of AC 500V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (10 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at DC~2400MHz. Withstanding temperatures from -40 to +85°C. The contact is made of Phosphor Bronze/Gold Plating, while the body is Brass/Nickel Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Connector Gender
    Jack
  • Impedance (Ohms)
    75Ω
  • Rated Voltage AC
    AC 500V
  • Operating Frequency Range
    2400MHz
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1500V(1 minute)
  • Contact Resistance
    10 mΩ(Max.)
  • V.S.W.R
    1.2(Max.) at DC~2400MHz
  • Operating Temperature Range
    -40 to +85°C

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Phosphor Bronze/Gold Plating
  • Body
    Brass/Nickel Plating

The BNCC-224R is an BNC75Ω Receptacle. This connector is suitable for various high-frequency applications. It features a impedance 75Ω, operates up to 2400MHz, and has a rated voltage of AC 500V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (10 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at DC~2400MHz. Withstanding temperatures from -40 to +85°C. The contact is made of Phosphor Bronze/Gold Plating, while the body is Brass/Nickel Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Featured collection

RF Coaxial Connector BNC75Ω Receptacle
TYCLON

BNCC-224R

$0.00

BNC75Ω Receptacle

Cable type

N/A

Connector Gender

Jack

Impedance (Ohms)

75Ω

Rated Voltage AC

AC 500V

Operating Frequency Range

2400MHz

Insulation Resistance

5000MΩ(Min.) at DC 500V

Withstand Voltage

AC 1500V(1 minute)

Contact Resistance

10 mΩ(Max.)

V.S.W.R

1.2(Max.) at DC~2400MHz

Operating Temperature Range

-40 to +85°C

Crimping Tool

N/A

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
