• 75Ω
  • Adaptor(Right Angle)
  • Products in stock
  • RoHS2
TYCLON

BNCC-LA-75

$7.42
Tax included
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

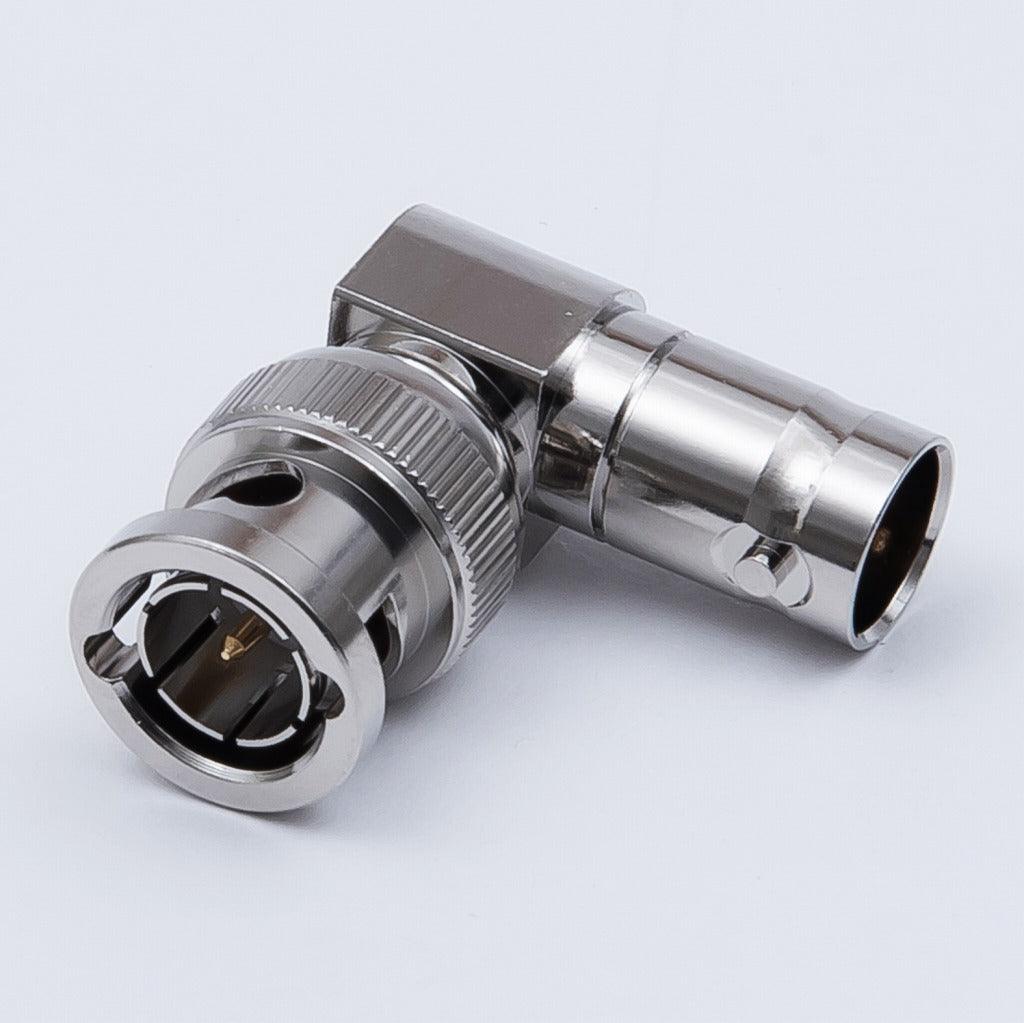

The BNCC-LA-75 is an BNC75Ω Right Angle adaptor connector. This connector is suitable for various high-frequency applications.It features a impedance 75Ω, operates up to 3GHz, and has a rated voltage of AC 500V, ensures a high insulation resistance (5000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at DC~3000MHz.Withstanding temperatures from -40 to +85°C.The contact is made of Beryllium Copper/Gold Plating, while the body is Brass/Nickel Plating.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Plug-Jack
  • Impedance (Ohms)
    75Ω
  • Rated Voltage AC
    AC 500V
  • Operating Frequency Range
    3GHz
  • Insulation Resistance
    5000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1500V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)
  • V.S.W.R
    1.2(Max.) at DC~3000MHz
  • Operating Temperature Range
    -40 to +85°C
