• 50Ω
  • Products in stock
  • Receptacle(Touch-protected)
  • RoHS2
TYCLON

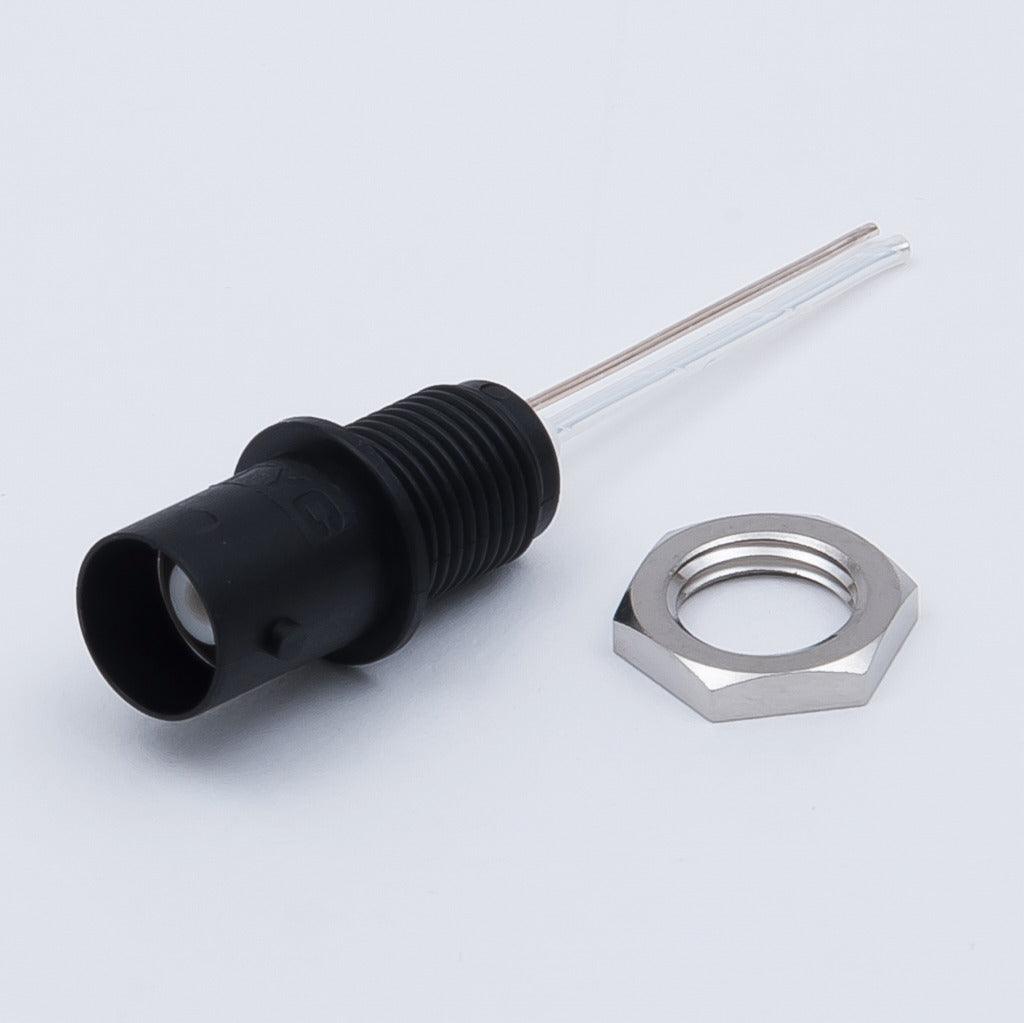

BNC-ESP-BRL(black)

$4.67
Tax included
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

The BNC-ESP-BRL(black) is an BNC Touch-protected connector. This connector is suitable for various high-frequency applications.It features a impedance 50Ω, and has a rated voltage of AC 500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (10 mΩ(Max.).The contact is made of Phosphor Bronze/Gold Plating, while the body is Brass/Nickel Plating.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 500V
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 3000V(1 minute)
  • Contact Resistance
    10 mΩ(Max.)

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Phosphor Bronze/Gold Plating
  • Body
    Brass/Nickel Plating

The BNC-ESP-BRL(black) is an BNC Touch-protected connector. This connector is suitable for various high-frequency applications.It features a impedance 50Ω, and has a rated voltage of AC 500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (10 mΩ(Max.).The contact is made of Phosphor Bronze/Gold Plating, while the body is Brass/Nickel Plating.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.Available from 1 piece for in-stock items.

Featured collection

BNC Receptacle(Touch-protected)
TYCLON

BNC-ESP-BRL(black)

$4.67

BNC Receptacle(Touch-protected)

Cable type

N/A

Connector Gender

Jack

Impedance (Ohms)

50Ω

Rated Voltage AC

AC 500V

Operating Frequency Range

N/A

Insulation Resistance

1000MΩ(Min.) at DC 500V

Withstand Voltage

AC 3000V(1 minute)

Contact Resistance

10 mΩ(Max.)

V.S.W.R

N/A

Operating Temperature Range

N/A

Crimping Tool

N/A

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
