• 50Ω
  • Jack(Touch-protected)
  • Made to order product
  • RoHS2
TYCLON

BNCJ-ESP-58(red)

Please inquire from “Contact” for made-to-order products.
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.CAD data can also be created.

Description

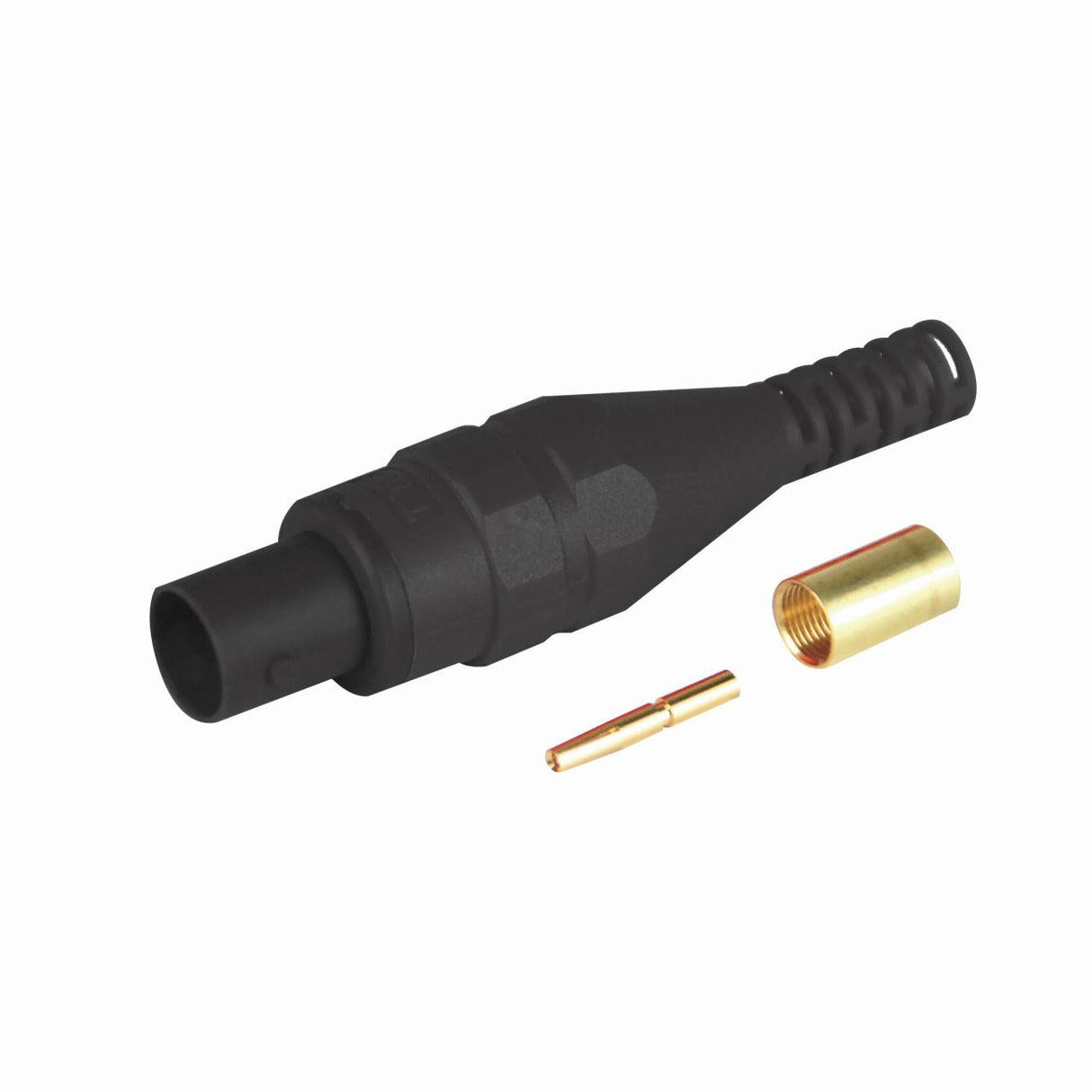

The BNCJ-ESP-58(red) is a BNC Touch-protected connector, designed for coaxial cables. This connector is suitable for various high-frequency applications. Fits RG-58A/U cables. It features an impedance of 50 Ω, and has a rated voltage of AC 500V, ensuring a high insulation resistance (1000MΩ(Min.) at DC 500V), and a low contact resistance (10 mΩ(Max.). The contact is made of Phosphor Bronze/Gold Plating/Crimp, while the body is Brass/Nickel Plating/Crimp. A crimping tool , TA-35, is required for mounting. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Learn more about the BNC 50Ω RF connector in our technical guide.

Specifications
  • Cable type
    RG-58A/U
  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 500V
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 3000V(1 minute)
  • Contact Resistance
    10 mΩ(Max.)
  • Crimping Tool
    TA-35

    • We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Phosphor Bronze/Gold Plating/Crimp
  • Body
    Brass/Nickel Plating/Crimp

The BNCJ-ESP-58(red) is a BNC Touch-protected connector, designed for coaxial cables. This connector is suitable for various high-frequency applications. Fits RG-58A/U cables. It features an impedance of 50 Ω, and has a rated voltage of AC 500V, ensuring a high insulation resistance (1000MΩ(Min.) at DC 500V), and a low contact resistance (10 mΩ(Max.). The contact is made of Phosphor Bronze/Gold Plating/Crimp, while the body is Brass/Nickel Plating/Crimp. A crimping tool , TA-35, is required for mounting. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Learn more about the BNC 50Ω RF connector in our technical guide.

Featured collection

RF Coaxial Connector BNC Jack(Touch-protected)
TYCLON

BNCJ-ESP-58(red)

$0.00

BNC Jack(Touch-protected)

Cable type

RG-58A/U

Connector Gender

Jack

Impedance (Ohms)

50Ω

Rated Voltage AC

AC 500V

Operating Frequency Range

N/A

Insulation Resistance

1000MΩ(Min.) at DC 500V

Withstand Voltage

AC 3000V(1 minute)

Contact Resistance

10 mΩ(Max.)

V.S.W.R

N/A

Operating Temperature Range

N/A

Crimping Tool

TA-35

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
