Description

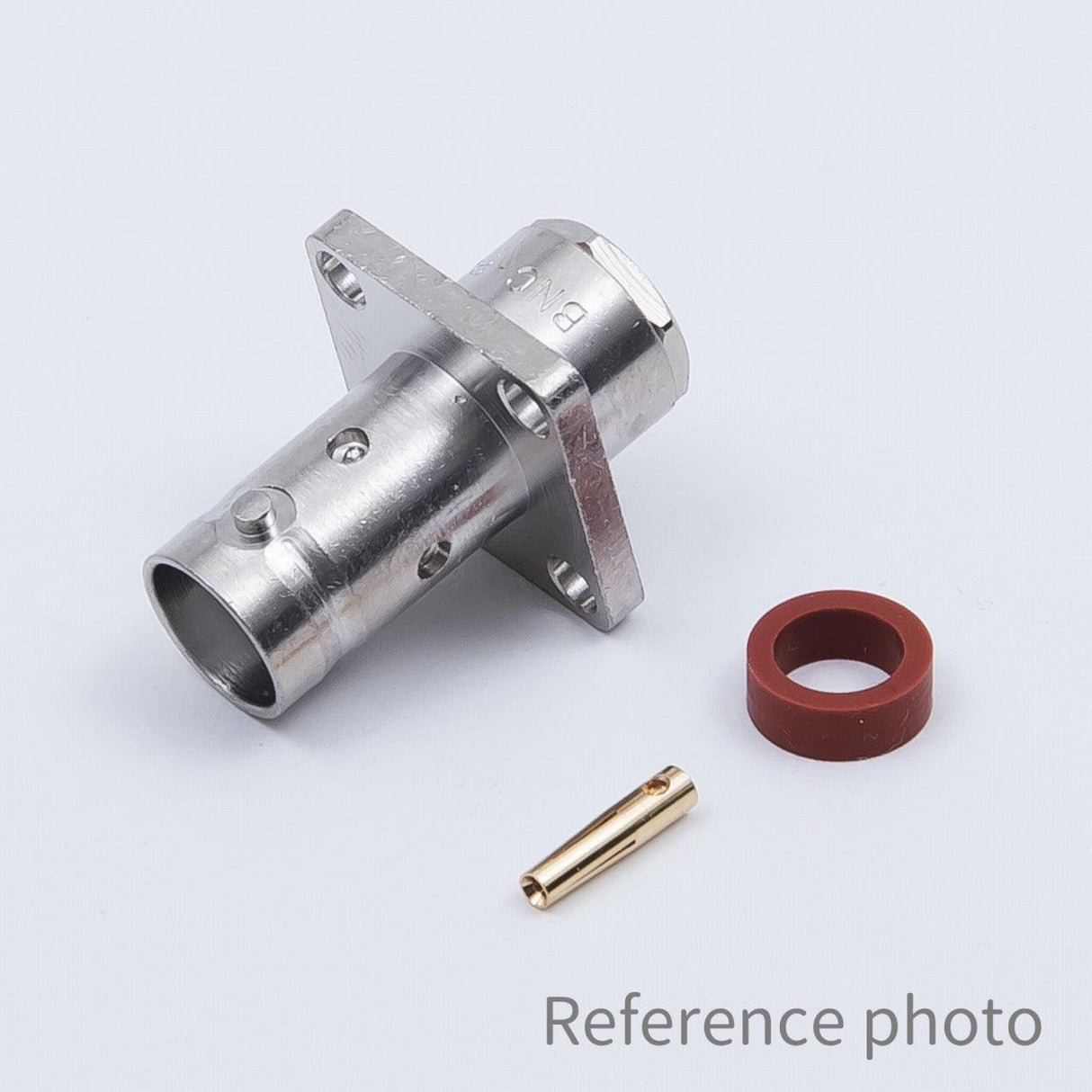

The BNC-PJ-59/U is an BNC Flange Jack connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-59/U cables. It features a impedance 50Ω, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.). Withstanding temperatures from -40 to +85°C. The contact is made of Phosphor Bronze/Gold Plating/Soldering, while the body is Brass/Nickel Plating/Tightening. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Cable type
    RG-59/U
  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1500V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)
  • Operating Temperature Range
    -40 to +85°C

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Phosphor Bronze/Gold Plating/Soldering
  • Body
    Brass/Nickel Plating/Tightening

The BNC-PJ-59/U is an BNC Flange Jack connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-59/U cables. It features a impedance 50Ω, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.). Withstanding temperatures from -40 to +85°C. The contact is made of Phosphor Bronze/Gold Plating/Soldering, while the body is Brass/Nickel Plating/Tightening. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.
