BNC-PJ-55/U

If you would like the English version of the document,please contact us. CAD data can also be created.

Description

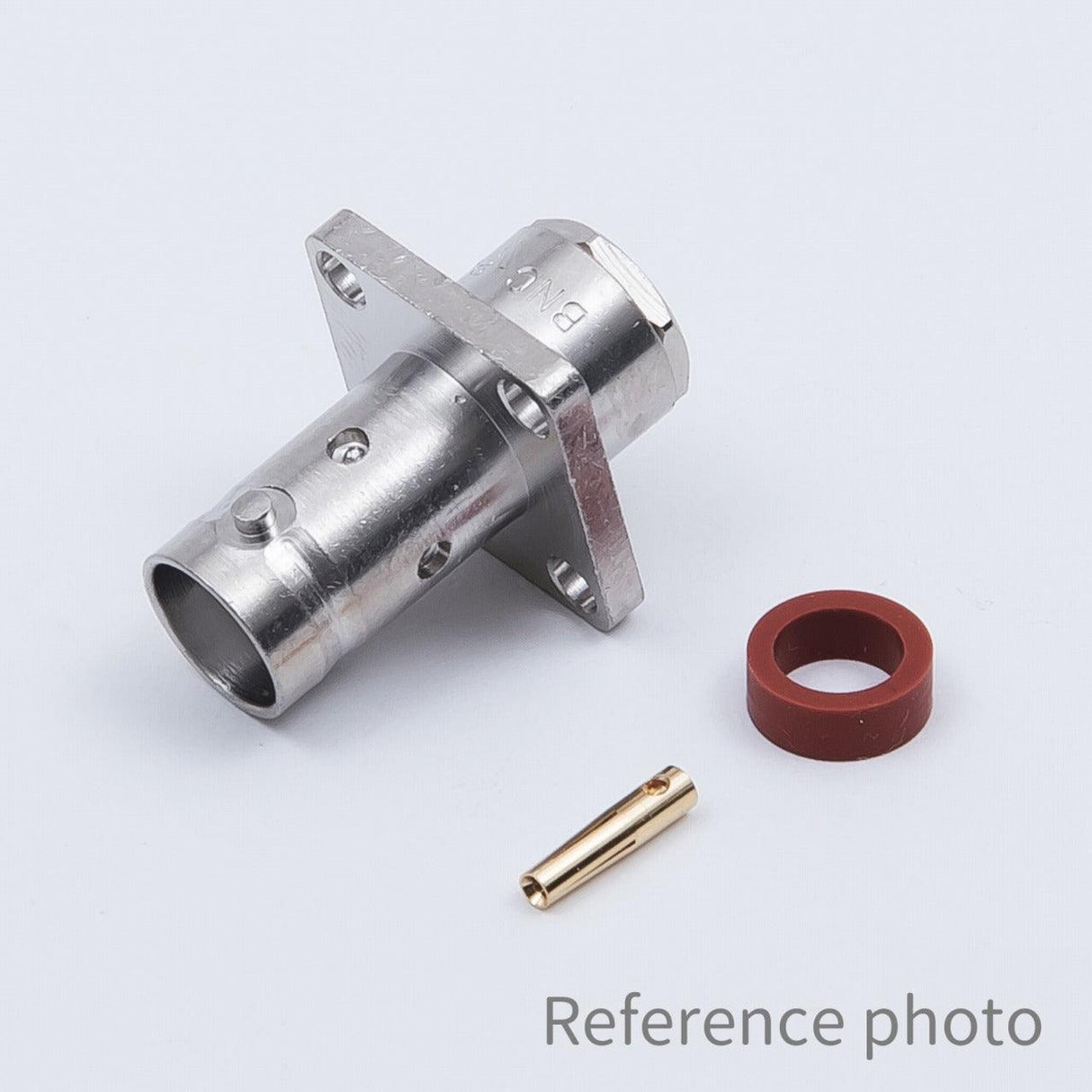

The BNC-PJ-55/U is an BNC Flange Jack connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-55/U cables.It features a impedance 50Ω, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.).Withstanding temperatures from -40 to +85°C.The contact is made of Brass/Gold-Plated/Soldered, while the body is Brass/Nickel Plating/Tightening.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications

  • Cable type
    RG-55/U
  • Connector Gender
    Jack
  • Impedance (Ohms)
    50Ω
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1500V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)
  • Operating Temperature Range
    -40 to +85°C
