• 50Ω
  • Plug(Right Angle)
  • RoHS2
  • Small lot order available
TYCLON

BNC-LP-55A

Please inquire from “Contact” for made-to-order products.
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

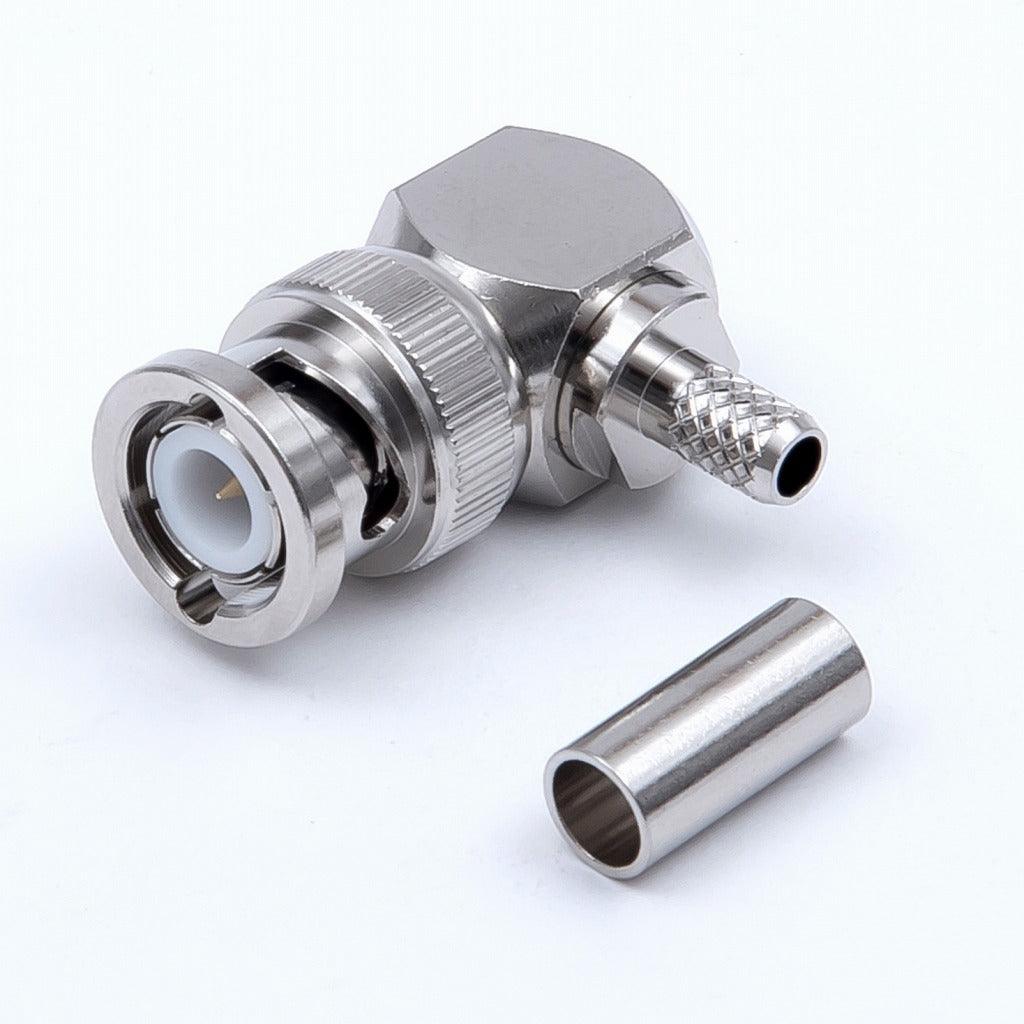

The BNC-LP-55A is an BNC Right Angle Plug connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-55/U,RG-55A/U cables.It features a impedance 50Ω, and has a rated voltage of AC 500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.).Withstanding temperatures from -40 to +85°C.The contact is made of Brass/Gold-Plated/Soldered, while the body is Brass/Nickel Plating/Crimp.A crimping toolTA-34, TA-35 is required for mounting.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Specifications
  • Cable type
    RG-55/U, RG-55A/U
  • Connector Gender
    Plug
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 500V
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 1500V(1 minute)
  • Contact Resistance
    3 mΩ(Max.)
  • Operating Temperature Range
    -40 to +85°C
  • Crimping Tool
    TA-34, TA-35

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Brass/Gold-Plated/Soldered
  • Body
    Brass/Nickel Plating/Crimp

The BNC-LP-55A is an BNC Right Angle Plug connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-55/U,RG-55A/U cables.It features a impedance 50Ω, and has a rated voltage of AC 500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.).Withstanding temperatures from -40 to +85°C.The contact is made of Brass/Gold-Plated/Soldered, while the body is Brass/Nickel Plating/Crimp.A crimping toolTA-34, TA-35 is required for mounting.We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging.

Featured collection

BNC Plug(Right Angle)
TYCLON

BNC-LP-55A

$0.00

BNC Plug(Right Angle)

Cable type

RG-55/U, RG-55A/U

Connector Gender

Plug

Impedance (Ohms)

50Ω

Rated Voltage AC

AC 500V

Operating Frequency Range

N/A

Insulation Resistance

1000MΩ(Min.) at DC 500V

Withstand Voltage

AC 1500V(1 minute)

Contact Resistance

3 mΩ(Max.)

V.S.W.R

N/A

Operating Temperature Range

-40 to +85°C

Crimping Tool

TA-34, TA-35

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
