BNCP-174A
Contact us
View Datasheet
Description
Description

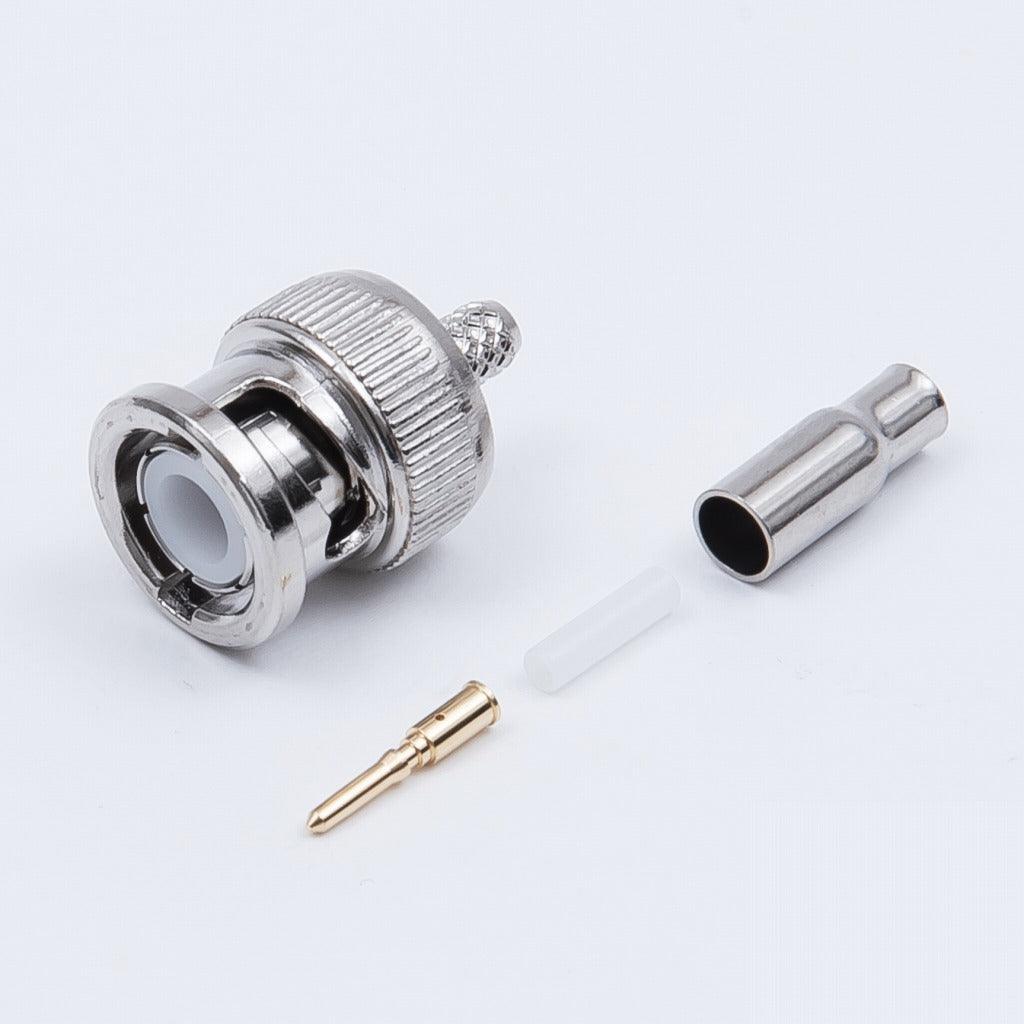

The BNCP-174A is an BNC Straight Plug connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-174/U,RG-316/U,RG-188A/U cables. It features a impedance 50Ω, and has a rated voltage of AC 500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.3(Max.) at 300kHz~500MHz. Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Gold Plating/Crimp, while the body is Brass/Nickel Plating/Crimp.A crimping toolTA-16 is required for mounting. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.
Specifications
Specifications
-
Cable typeRG-174/U, RG-316/U, RG-188A/U
-
Connector Gender
-
Impedance (Ohms)
-
Rated Voltage AC
-
Insulation Resistance
-
Withstand Voltage
-
Contact Resistance
-
V.S.W.R
-
Operating Temperature Range
-
Crimping ToolTA-16
Safe & Secure
We ensure secure processing of your payment information and do not retain or have any access to your credit card details.
Material/Plating/Attachment
Material/Plating/Attachment
-
Contact
-
Body
The BNCP-174A is an BNC Straight Plug connector, designed for coaxial cables. This connector is suitable for various high-frequency applications.Fits RG-174/U,RG-316/U,RG-188A/U cables. It features a impedance 50Ω, and has a rated voltage of AC 500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.), and an excellent V.S.W.R 1.3(Max.) at 300kHz~500MHz. Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Gold Plating/Crimp, while the body is Brass/Nickel Plating/Crimp.A crimping toolTA-16 is required for mounting. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.
-
Cable typeRG-174/U, RG-316/U, RG-188A/U
-
Connector Gender
-
Impedance (Ohms)
-
Rated Voltage AC
-
Insulation Resistance
-
Withstand Voltage
-
Contact Resistance
-
V.S.W.R
-
Operating Temperature Range
-
Crimping ToolTA-16
Safe & Secure
We ensure secure processing of your payment information and do not retain or have any access to your credit card details.
-
Contact
-
Body
