• 50Ω
  • Adaptor(Right Angle)
  • Products in stock
  • RoHS2
  • Waterproof
TYCLON

7/16-LA-PJ

$40.83
Tax included
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

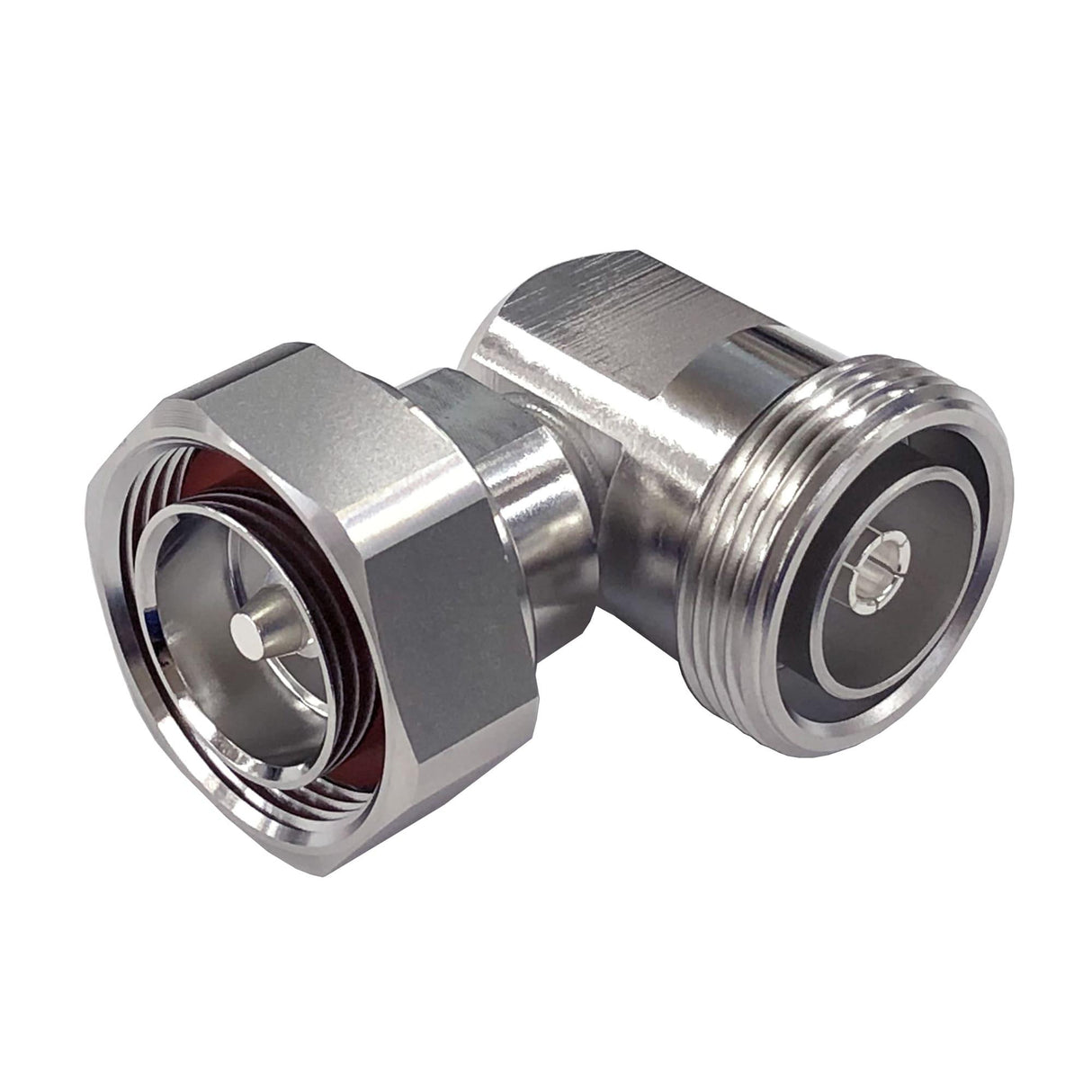

The 7/16-LA-PJ is an 7/16 DIN Right Angle adaptor connector. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, and has a rated voltage of AC 2.7kV max. at 50Hz, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (1.5 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at DC~3 GHz. Withstanding temperatures from -45 to +85°C. The contact is made of Brass/Phosphor Bronze/Silver Plating, while the body is Brass/Ternary Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Plug-Jack
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 2.7kV max. at 50Hz
  • Insulation Resistance
    1000MΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 3000V(1 minute)
  • Contact Resistance
    1.5 mΩ(Max.)
  • V.S.W.R
    1.2(Max.) at DC~3 GHz
  • Operating Temperature Range
    -45 to +85°C

    • Safe & Secure

    We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Brass/Phosphor Bronze/Silver Plating
  • Body
    Brass/Ternary Plating

The 7/16-LA-PJ is an 7/16 DIN Right Angle adaptor connector. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, and has a rated voltage of AC 2.7kV max. at 50Hz, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (1.5 mΩ(Max.), and an excellent V.S.W.R 1.2(Max.) at DC~3 GHz. Withstanding temperatures from -45 to +85°C. The contact is made of Brass/Phosphor Bronze/Silver Plating, while the body is Brass/Ternary Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Featured collection

RF Coaxial Connector 7/16 Din Adaptor(Right Angle)
TYCLON

7/16-LA-PJ

$40.83

7/16 Din Adaptor(Right Angle)

Cable type

N/A

Connector Gender

Plug-Jack

Impedance (Ohms)

50Ω

Rated Voltage AC

AC 2.7kV max. at 50Hz

Operating Frequency Range

N/A

Insulation Resistance

1000MΩ(Min.) at DC 500V

Withstand Voltage

AC 3000V(1 minute)

Contact Resistance

1.5 mΩ(Max.)

V.S.W.R

1.2(Max.) at DC~3 GHz

Operating Temperature Range

-45 to +85°C

Crimping Tool

N/A

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
