TYCLON

7/16P-7/16J

$18.08
Tax included
You must register and log in to download
3D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.
CAD data can also be created.

Description

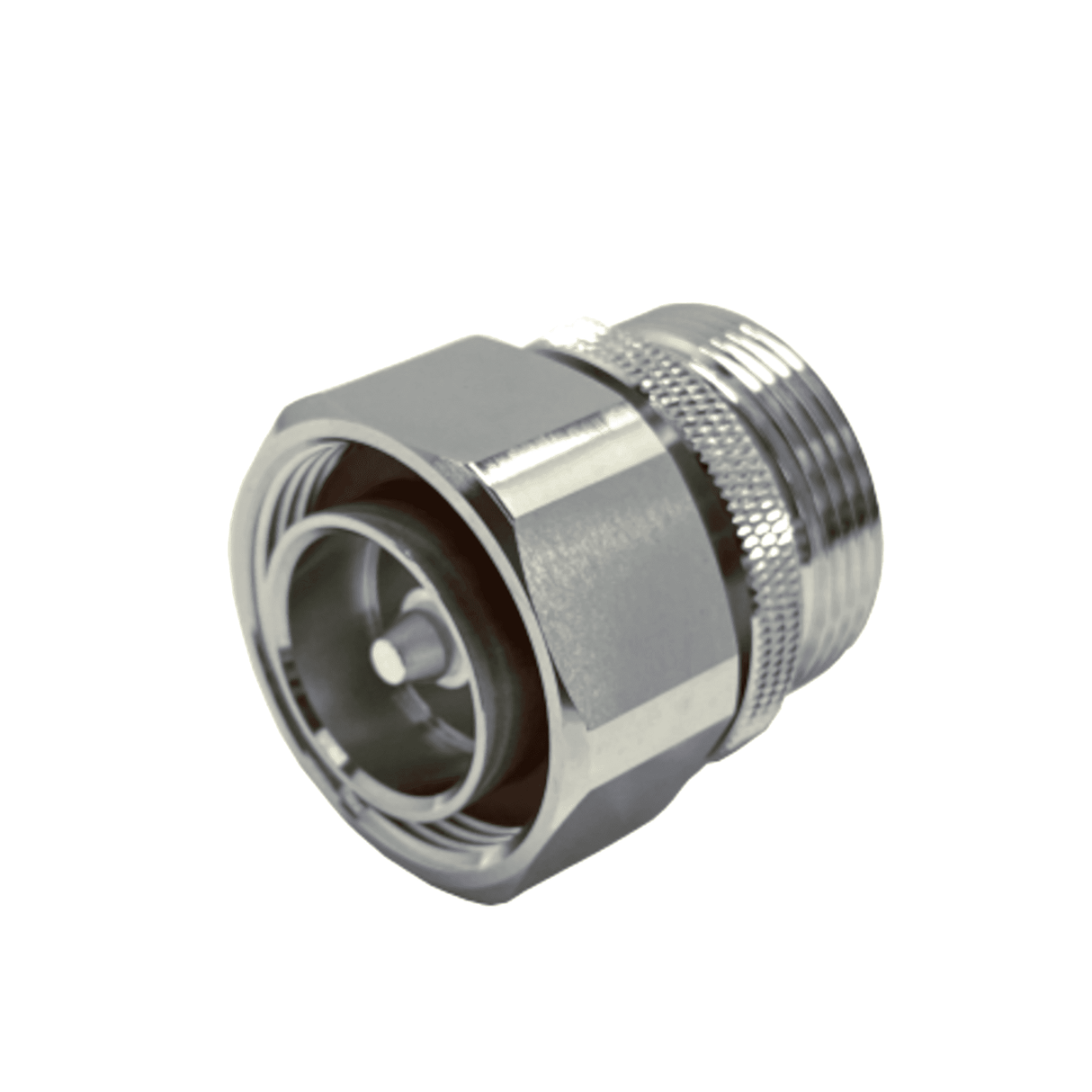

The 7/16P-7/16J is an 7/16 DIN adaptor connector. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, and has a rated voltage of AC 2.7kV max. at 50Hz, ensures a high insulation resistance (10GΩ(Min.) at DC 500V), a low contact resistance (0.4 mΩ(Max.), and an excellent V.S.W.R 1.1(Max.) at DC~6GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Silver Plating, while the body is Brass/Ternary Plating. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Specifications
  • Connector Gender
    Plug-Jack
  • Impedance (Ohms)
    50Ω
  • Rated Voltage AC
    AC 2.7kV max. at 50Hz
  • Insulation Resistance
    10GΩ(Min.) at DC 500V
  • Withstand Voltage
    AC 4000V(1 minute)
  • Contact Resistance
    0.4 mΩ(Max.)
  • V.S.W.R
    1.1(Max.) at DC~6GHz
  • Operating Temperature Range
    -40 to +85°C

    • Safe & Secure
