• 50Ω
  • Coaxial Terminator
  • Products in stock
  • RoHS2
TYCLON

2.4P50TD50G-2W

$210.48
Tax included
You must register and log in to download
2D CAD Download
Contact us Contact us View Datasheet View Datasheet
If you would like the English version of the document,please contact us.CAD data can also be created.

Description

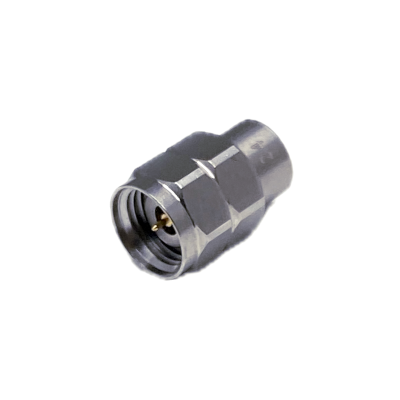

The 2.4P50TD50G-2W is an 2.4mm 2W(Watt) Terminator. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 50 GHz, a low contact resistance (Inner conductor : 4mΩ(Max.) / Outer conductor : 2.5mΩ(Max.)), and an excellent V.S.W.R 1.3(Max.) at DC~50GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Beryllium Copper/Gold Plating, while the body is Stainless/Passivate Treatment. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Learn more about the 2.4mm RF connector in our technical guide.

Specifications
  • Connector Gender
    Plug
  • Impedance (Ohms)
    50Ω
  • Operating Frequency Range
    50 GHz
  • Contact Resistance
    Inner conductor：4.0mΩ(Max.) / Outer conductor：2.5mΩ(Max.)
  • V.S.W.R
    1.3(Max.) at DC~50GHz
  • Operating Temperature Range
    -40 to +85°C

    • We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

    • American Express
    • Apple Pay
    • Google Pay
    • JCB
    • Mastercard
    • Shop Pay
    • Visa

Material/Plating/Attachment
  • Contact
    Beryllium Copper/Gold Plating
  • Body
    Stainless/Passivate Treatment

The 2.4P50TD50G-2W is an 2.4mm 2W(Watt) Terminator. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 50 GHz, a low contact resistance (Inner conductor : 4mΩ(Max.) / Outer conductor : 2.5mΩ(Max.)), and an excellent V.S.W.R 1.3(Max.) at DC~50GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Beryllium Copper/Gold Plating, while the body is Stainless/Passivate Treatment. We can customize our products for you. We offer total customization, including changes to a product's shape, length, material, surface treatment, and packaging. Available from 1 piece for in-stock items.

Learn more about the 2.4mm RF connector in our technical guide.

Featured collection

RF Coaxial Connector 2.4mm Terminator
TYCLON

2.4P50TD50G-2W

$210.48

2.4mm Coaxial Terminator

Cable type

N/A

Connector Gender

Plug

Impedance (Ohms)

50Ω

Rated Voltage AC

N/A

Operating Frequency Range

50 GHz

Insulation Resistance

N/A

Withstand Voltage

N/A

Contact Resistance

Inner conductor：4.0mΩ(Max.) / Outer conductor：2.5mΩ(Max.)

V.S.W.R

1.3(Max.) at DC~50GHz

Operating Temperature Range

-40 to +85°C

Crimping Tool

N/A

Rated Power (W)

N/A

Attenuation (dB)

N/A

Length (m)

N/A

Terminal Shape

N/A
