SMA Receptacles: Types, Structure, and Uses Explained
What Are SMA Receptacles?
Tyclon’s SMA receptacle connectors provide a reliable interface for SMA connections in measurement instruments, communication systems, and general RF applications. Manufactured with Japanese precision, they are designed to support stable impedance characteristics and consistent electrical performance suitable for the standard operating range of SMA systems.
Available in multiple mechanical configurations and mounting styles, Tyclon SMA receptacles integrate easily into printed circuit boards, panels, and equipment housings used in test equipment, wireless devices, and custom RF assemblies. Each connector is engineered for secure threaded coupling, smooth mating, and dependable performance in typical RF environments, supporting long-term reliability in professional and industrial applications.
Mating of SMA Connectors
The SMA connector uses a threaded coupling mechanism to ensure a secure and reliable connection. SMA receptacles most commonly feature a female interface; however, plug receptacles with a male interface are also available to accommodate specific connection requirements.
SMA Receptacles by Type
An SMA receptacle features a female SMA interface on the mating side. The opposite end is designed for mounting to a printed circuit board, a panel-mounted device, or a coaxial cable, depending on the application.

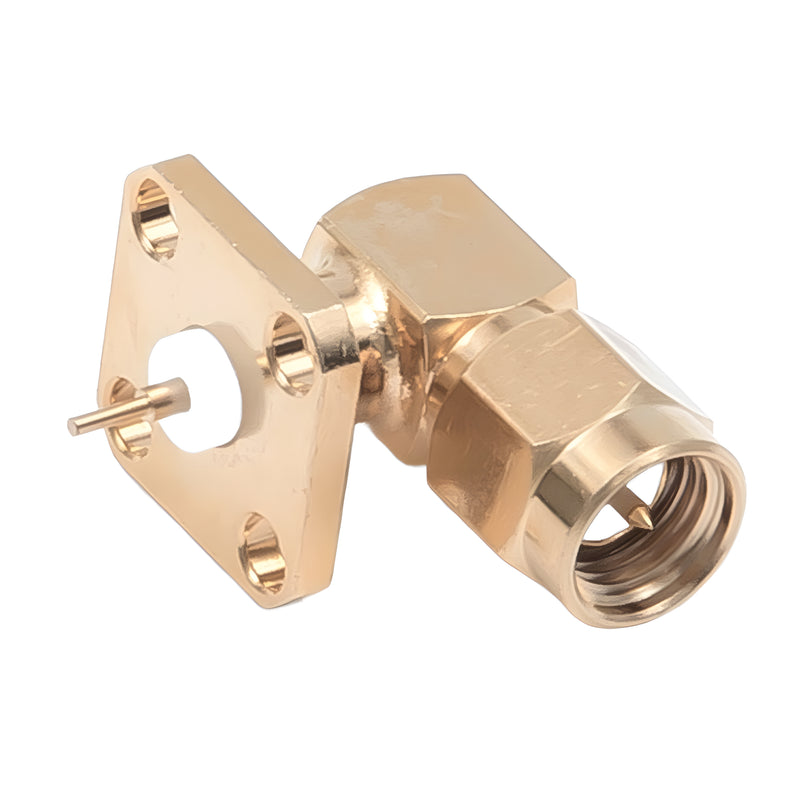

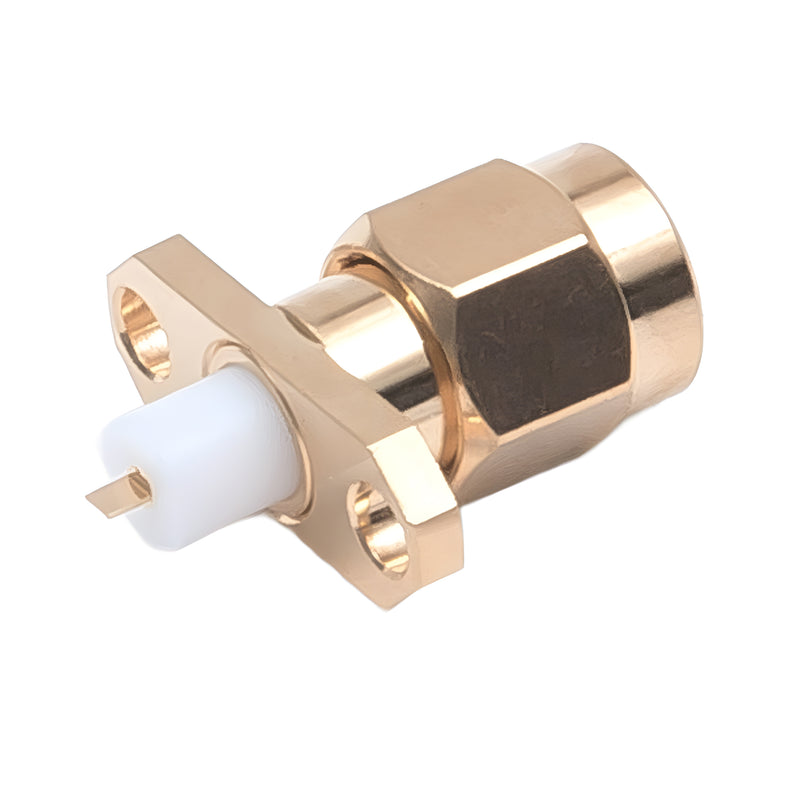

In limited configurations, plug receptacles with a male interface are also available.
SMA receptacle designs can be broadly classified into the following two categories based on their primary mounting method:

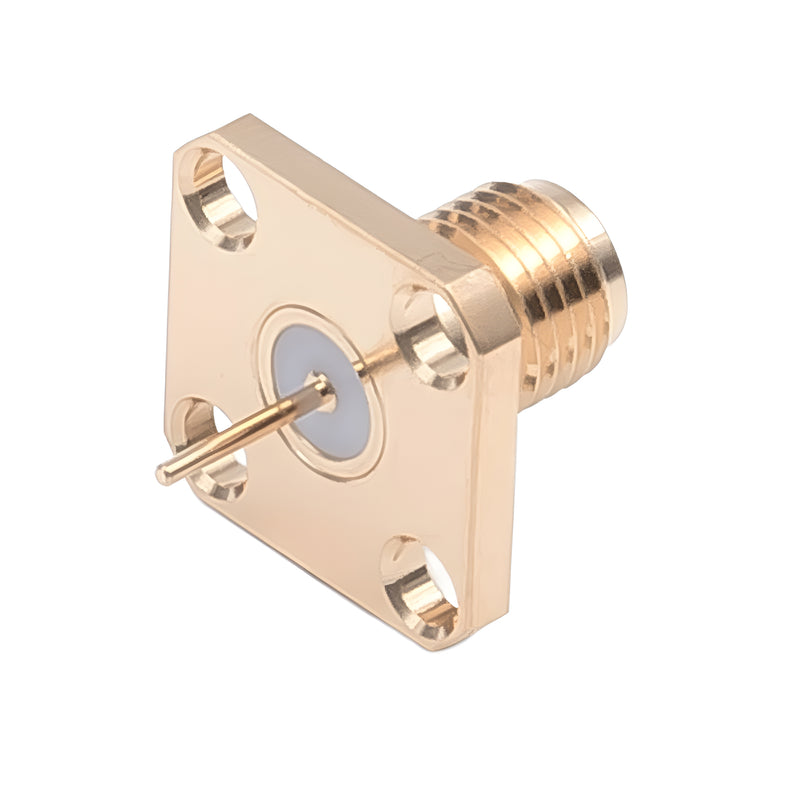

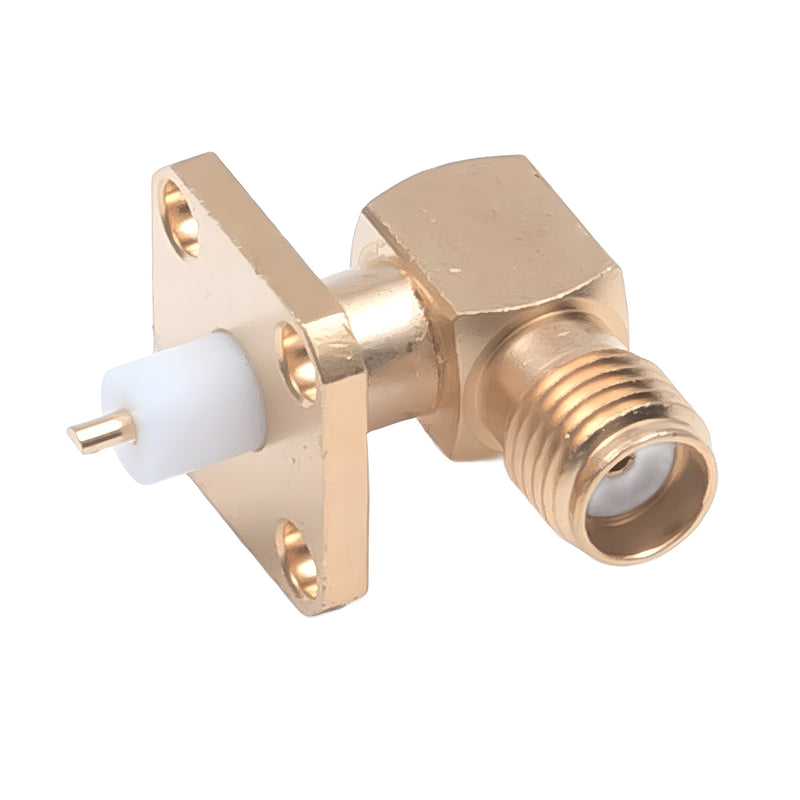

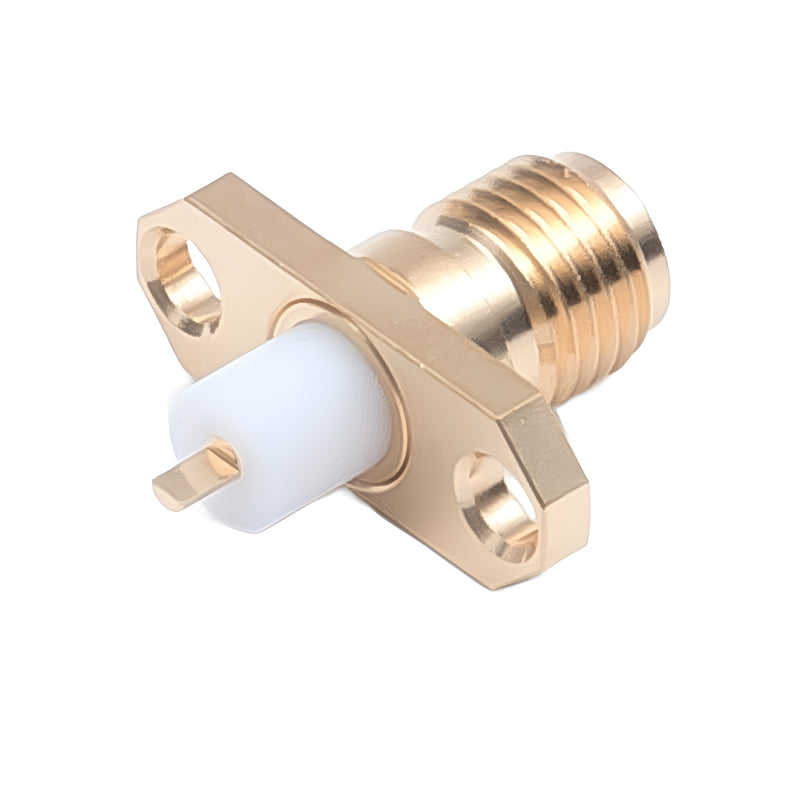

SMA Receptacles for Cable Termination
These receptacles are primarily intended for attachment to coaxial cables.

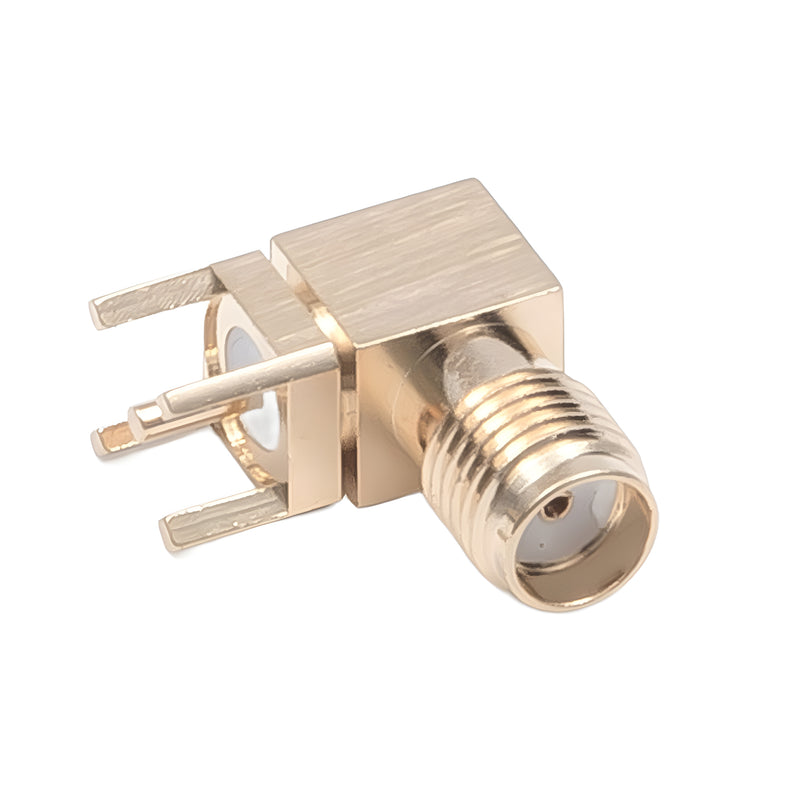

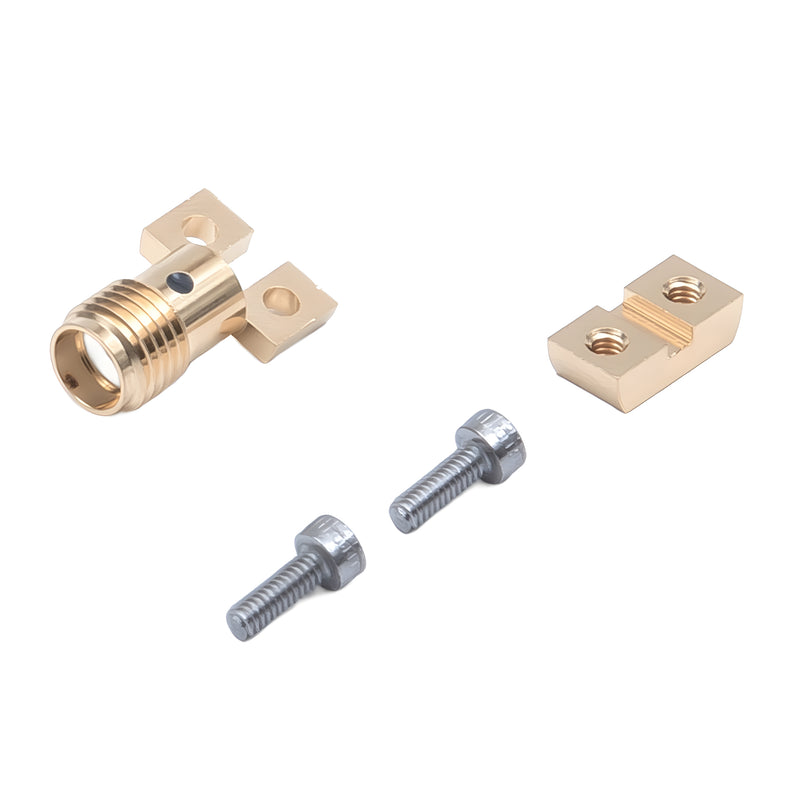

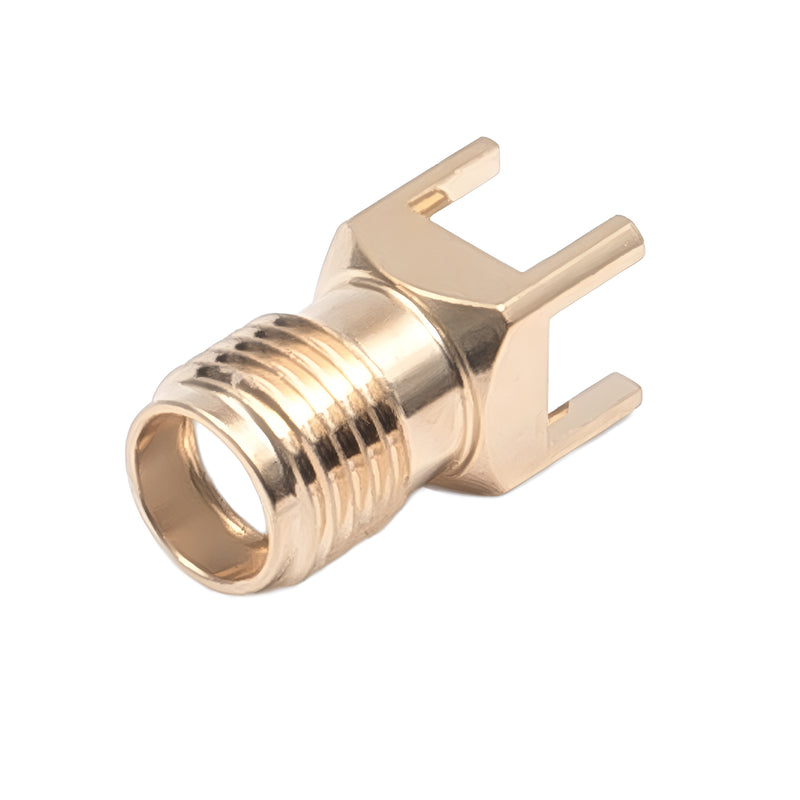

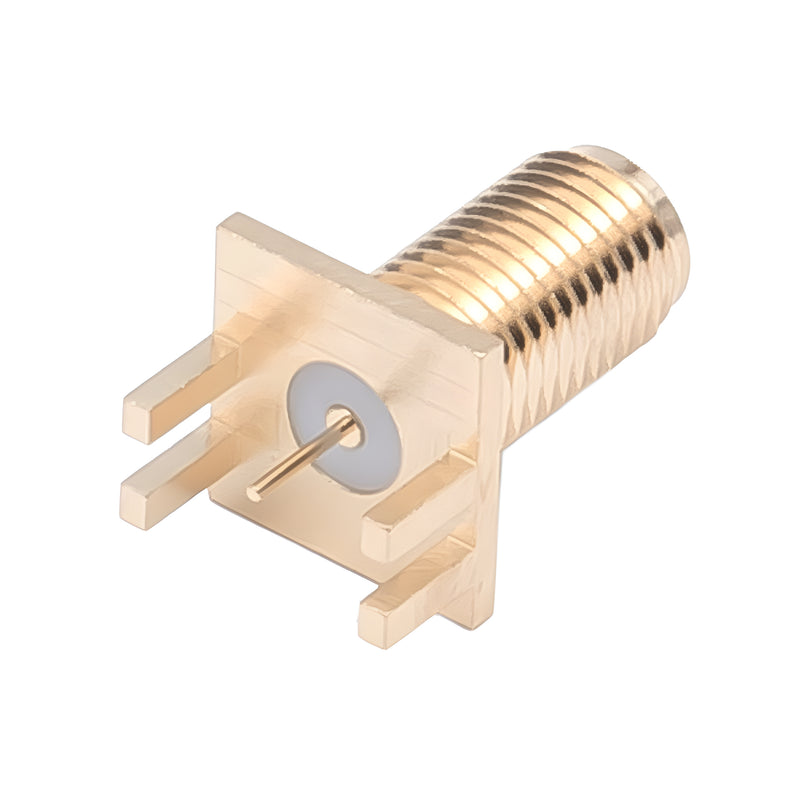

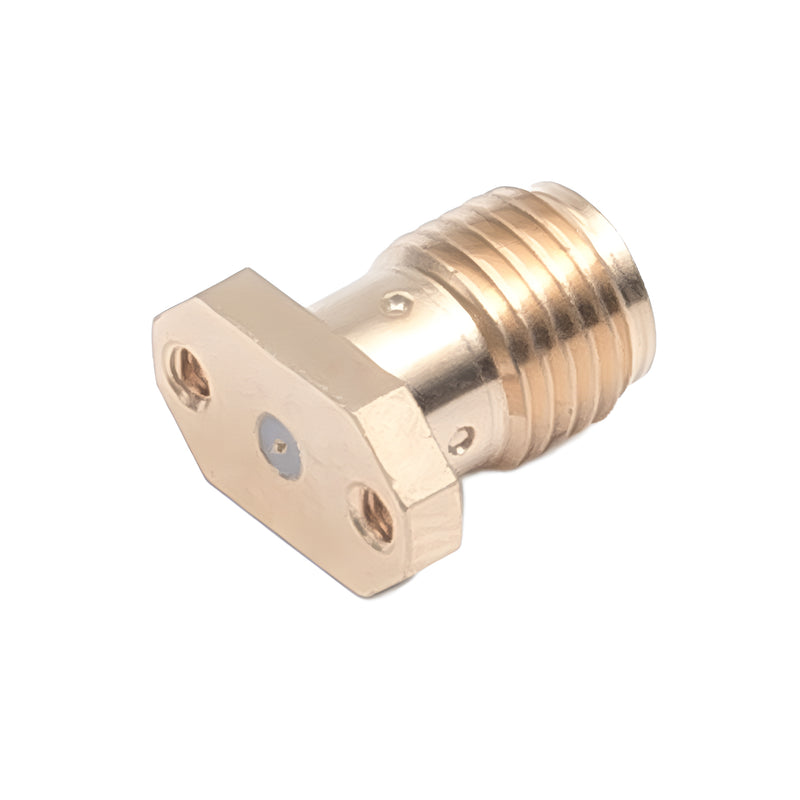

PCB-Mount SMA Receptacles
These receptacles are primarily designed for direct mounting onto printed circuit boards.
Trivia: Plug vs. Jack
A receptacle can be attached to virtually any coaxial cable as long as the diameter of the connector’s center contact matches the diameter of the cable’s center conductor. However, because a receptacle does not mechanically secure to the cable’s outer jacket (sheath), the cable retention strength is limited. For this reason, receptacles are most commonly used for internal wiring applications, such as connections inside an enclosure or chassis.
Other connector types that support direct cable termination include plugs (with a male interface) and jacks (with a female interface). Unlike receptacles, plugs and jacks are designed for specific coaxial cable types and provide stronger mechanical cable retention. This makes them suitable for use in external connections, including panel interfaces and cable assemblies exposed outside the equipment enclosure.
Learn more about the SMA Plug (Male) >>
Learn more about the SMA Jack (Female). >>
PCB Mount Receptacles

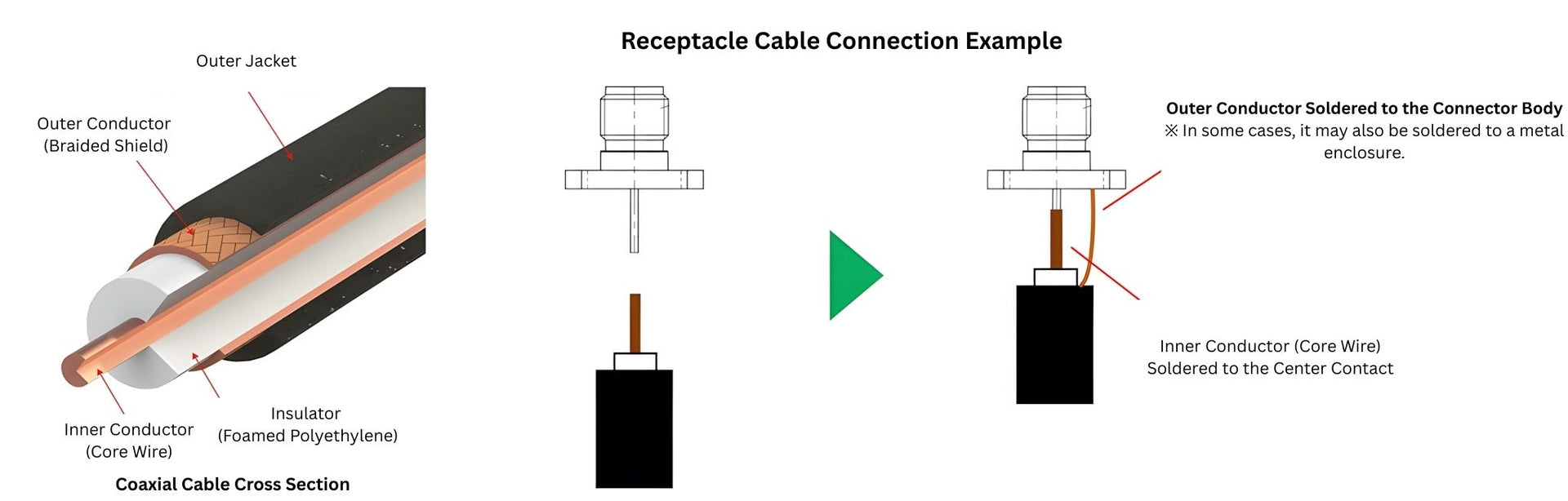

Examples of SMA Receptacle Usage
A receptacle, like a jack, features a female interface and is often used for direct cable termination. One key difference is that a receptacle offers greater flexibility in cable selection than a jack. While jacks are designed for specific coaxial cable types and therefore vary by cable, a receptacle can be used as long as the size of the center contact allows soldering to the cable’s inner conductor (center wire).
Typical applications include mounting the receptacle directly onto a printed circuit board (PCB) instead of a cable, or terminating only the cable’s center conductor without fixing the outer jacket. When a receptacle is connected to a cable, the increased flexibility in cable selection results in lower mechanical retention at the cable termination compared with a jack, making the connection more susceptible to loosening or pull-out.

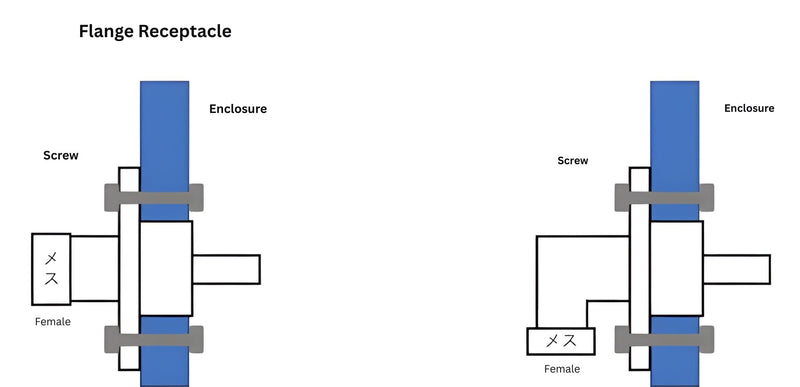

For this reason, receptacles are most commonly mounted to an enclosure or chassis and used for internal wiring within equipment, where mechanical stress on the cable is minimized.
When a receptacle is terminated directly to a cable, the greater flexibility in cable selection results in lower mechanical stability at the cable termination compared with a jack, making the connection more susceptible to loosening or pull-out. For this reason, receptacles are typically mounted to an enclosure or chassis and are most often used for internal wiring within equipment.

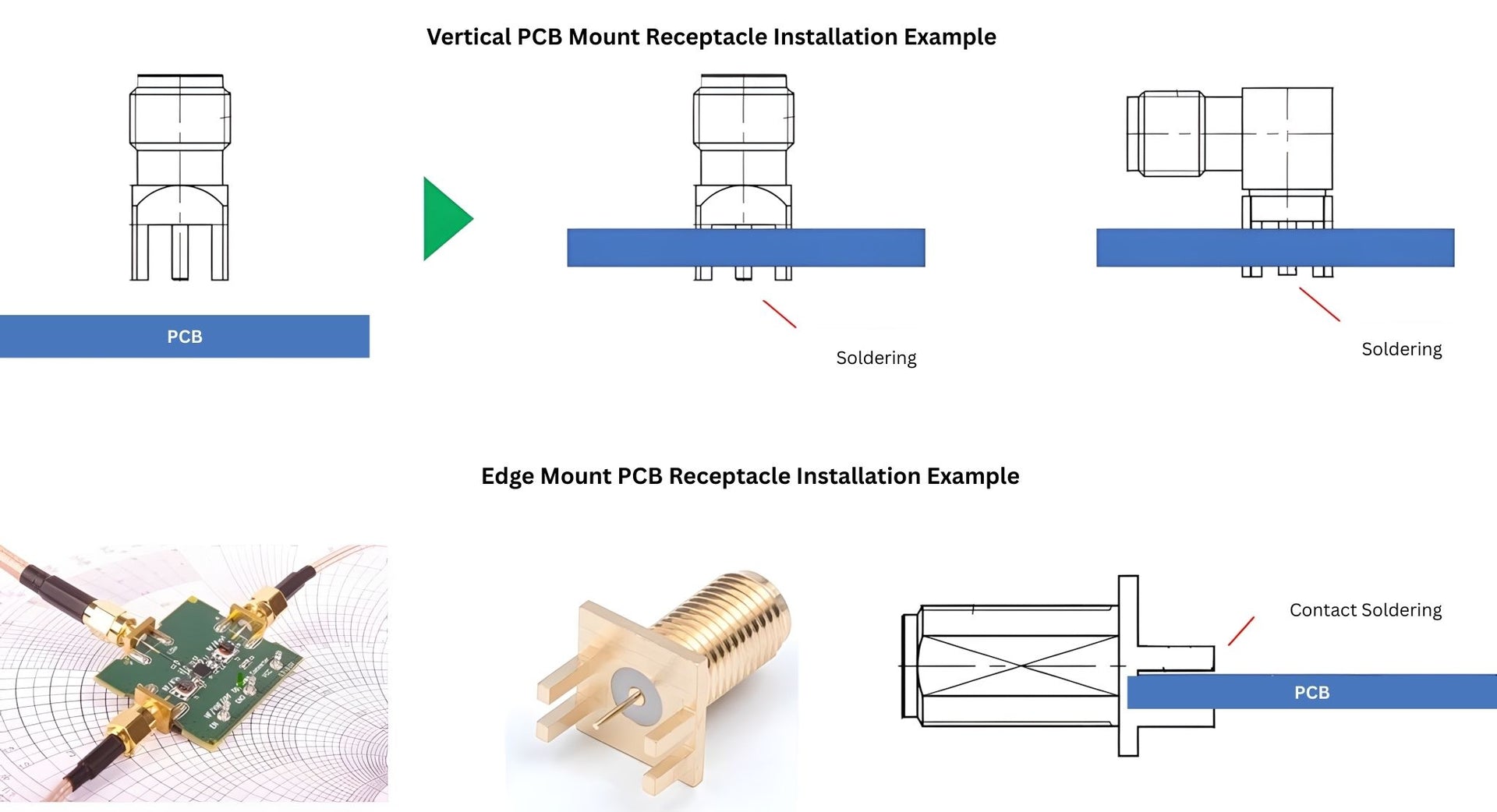

Examples of SMA PCB Mount Receptacle Usage
SMA receptacles designed for printed circuit board (PCB) mounting are available in different mechanical configurations to match the layout and pattern of the PCB. The receptacle form factor is selected based on the board-side pad design and mounting requirements to ensure proper fit and reliable electrical connection.
SMA Receptacle FAQs
QWhat is an SMA receptacle connector?
QWhat is an SMA receptacle connector?
An SMA receptacle is a connector with a female SMA interface used to mate with SMA plugs. It is commonly mounted to a printed circuit board, panel, or cable for radio frequency signal connections.
QWhat type of coupling mechanism does an SMA connector use?
QWhat type of coupling mechanism does an SMA connector use?
SMA connectors use a threaded coupling mechanism that allows secure and stable mating between connectors. This design helps maintain reliable electrical contact during vibration or repeated use.
QWhere are SMA receptacles typically installed?
QWhere are SMA receptacles typically installed?
SMA receptacles are installed on printed circuit boards, panels, or coaxial cables depending on the design. They are commonly used inside equipment housings for radio frequency signal routing.
QHow does an SMA receptacle differ from an SMA jack
QHow does an SMA receptacle differ from an SMA jack
An SMA receptacle offers greater flexibility in cable selection than an SMA jack. While jacks are designed for specific cable types, receptacles can be used with various cables if soldering is possible.
QCan SMA receptacles be mounted on printed circuit boards?
QCan SMA receptacles be mounted on printed circuit boards?
Yes, SMA receptacles are available in designs intended for direct printed circuit board mounting. The connector shape is selected based on the board pattern and mechanical requirements.
QWhat applications commonly use SMA receptacles?
QWhat applications commonly use SMA receptacles?
SMA receptacles are used in measurement instruments, communication equipment, and radio frequency devices where stable signal transmission and secure mechanical connection are required.
QCan an SMA receptacle be connected directly to a coaxial cable?
QCan an SMA receptacle be connected directly to a coaxial cable?
Yes, SMA receptacles can be connected to coaxial cables as long as the center contact can be soldered to the cable's inner conductor with a compatible diameter.
QWhy are SMA receptacles often used for internal wiring?
QWhy are SMA receptacles often used for internal wiring?
Because SMA receptacles do not always secure the cable outer jacket, the mechanical retention is limited. Mounting inside an enclosure reduces stress and improves connection reliability.
QHow does threaded coupling benefit SMA connections?
QHow does threaded coupling benefit SMA connections?
Threaded coupling provides consistent contact pressure and prevents accidental disconnection. This makes SMA connectors suitable for applications requiring stable electrical performance.
QWhat should be considered when selecting an SMA receptacle?
QWhat should be considered when selecting an SMA receptacle?
When selecting an SMA receptacle, consider the mounting method, cable connection style, and mechanical stability. Proper selection helps ensure reliable performance within the equipment design.
QDo SMA receptacles support repeated mating cycles?
QDo SMA receptacles support repeated mating cycles?
SMA receptacles are designed to maintain stable electrical contact through repeated mating cycles when used under normal conditions ensuring dependable long-term operation.
QHow can I order SMA receptacles, and what support do you offer?
QHow can I order SMA receptacles, and what support do you offer?
Ordering is simple—you can purchase our SMA receptacles directly on our website or contact our sales team for assistance. We also provide comprehensive technical support, including datasheets, CAD models, and application notes, to help you select the ideal connector for your project.
