SMA Plug Connectors (Male) Guide
What Are SMA Plug Connectors (Male)?
Tyclon's male SMA plug connectors provide reliable, high-frequency performance for RF and microwave applications up to 18 GHz. With precision screw coupling, they deliver stable electrical performance, excellent impedance matching, low VSWR, and lasting mechanical strength. Available in multiple configurations, Tyclon's male SMA plug connectors maintain consistent signal integrity and durable construction for use in test instruments, communication systems, and general RF applications.
Mating of SMA Connectors
The SMA connector uses a threaded coupling mechanism to ensure a secure, reliable connection.

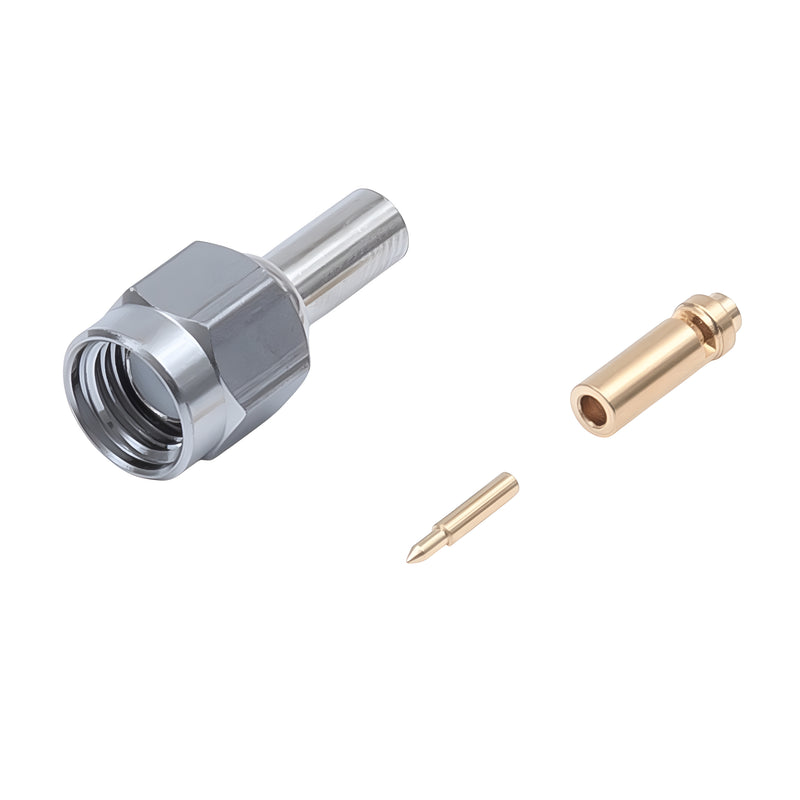

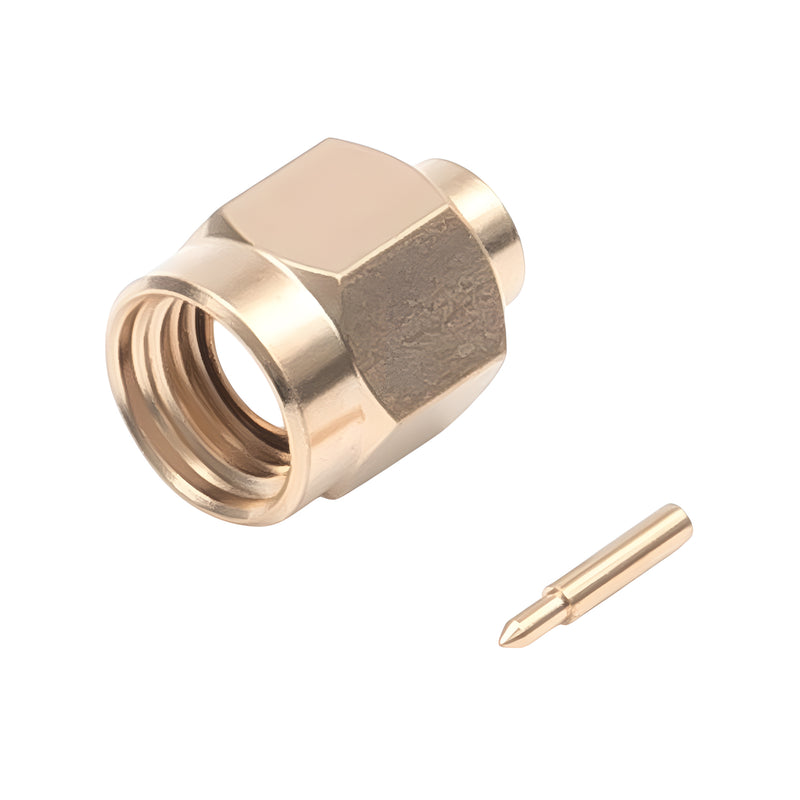

SMA Plug Connector (Male) by Type
Male SMA plug connectors feature a male interface on the mating side and connect to a coaxial cable on the opposite end. In the SMA connector series, two main plug configurations are available: straight plugs and right-angle plugs, offering flexibility for various installation layouts and space-saving requirements.
Trivia: Plug Receptacles
The designs of plugs and jacks vary depending on the type of coaxial cable used.
A similar connector that also attaches to coaxial cables is a receptacle. Receptacles can be mounted on any coaxial cable as long as the diameter of the connector’s center contact matches the diameter of the cable’s inner conductor. However, because receptacles do not connect to the cable’s outer sheath, the connection area is less robust. For this reason, they are typically used for internal wiring inside enclosures or devices.

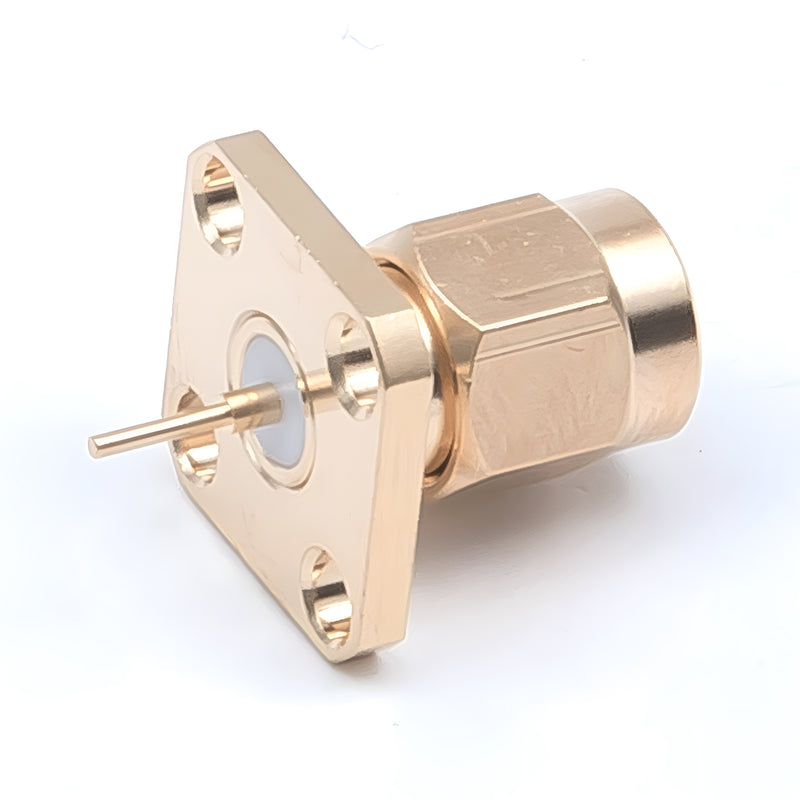

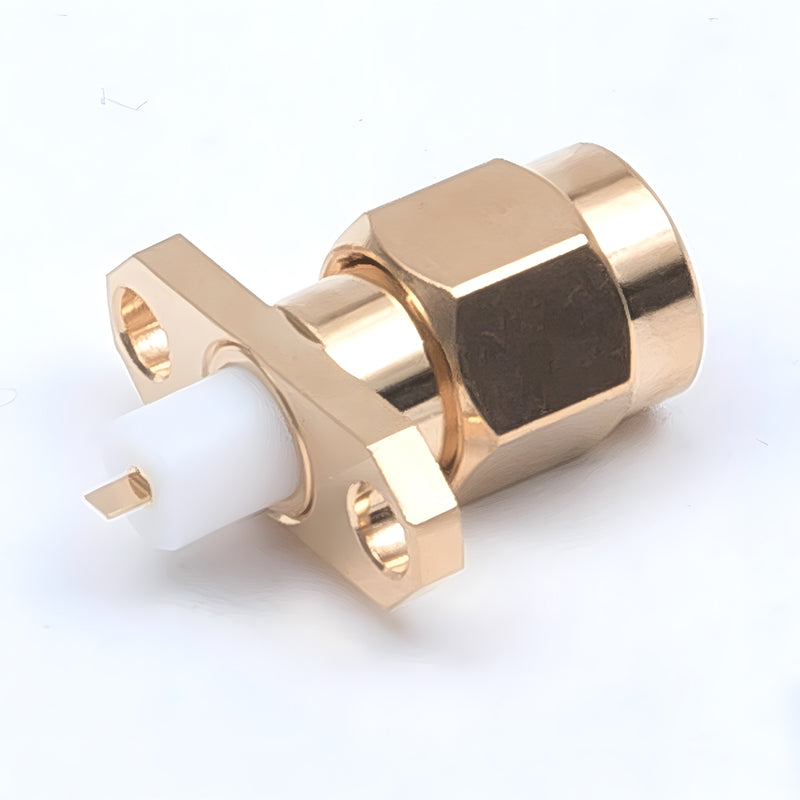

Although most receptacles have a female interface, some SMA models feature a plug receptacle type with a male interface for specific applications.

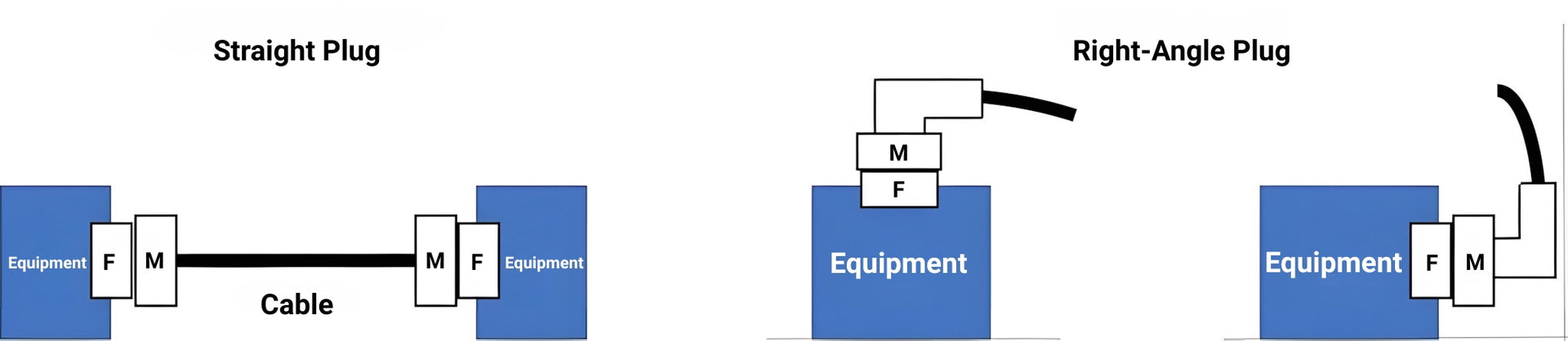

Examples of SMA Plug (Male) Usage
Straight Plug (Male):
Connects directly without bending, making it simple and versatile for general use where space behind the device is not limited.

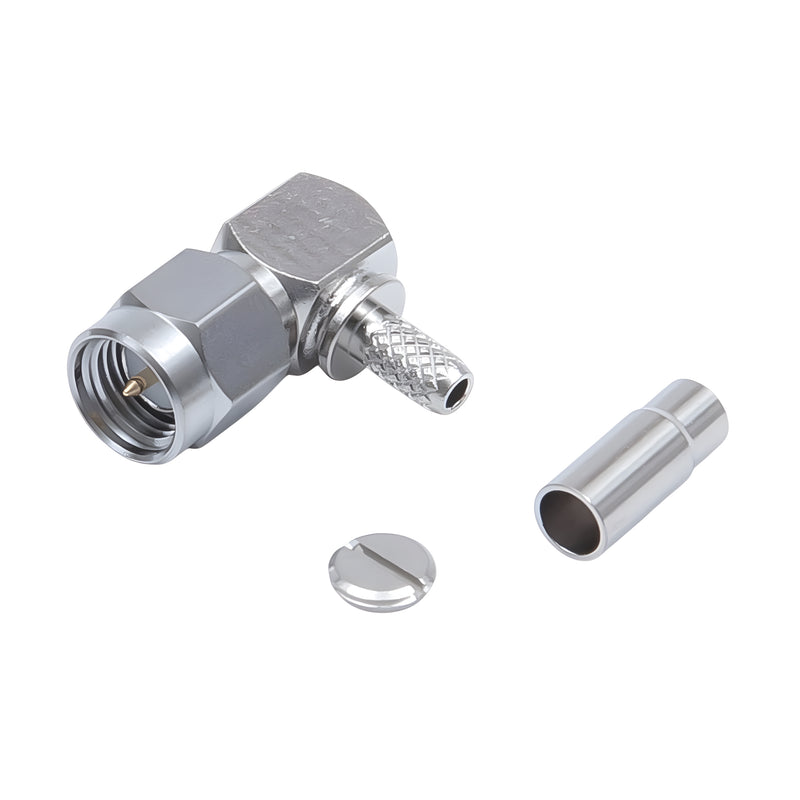

Right-Angle Plug (Male):
Useful when the jack (female) on your device is positioned so that a straight plug would be inconvenient. Ideal when equipment must be placed against a wall or in a tight space with little room behind it.
SMA Plug Connectors (Male) FAQs
QWhat is the role of the male SMA plug connector in RF systems?
QWhat is the role of the male SMA plug connector in RF systems?
The male SMA plug connector serves as the interface between coaxial cables and equipment, ensuring secure signal transfer and a stable mechanical connection in RF systems.
QWhat impedance does the male SMA plug connector typically support?
QWhat impedance does the male SMA plug connector typically support?
The standard male SMA plug connector from Tyclon supports a nominal impedance of 50 Ω, matching the impedance of typical RF systems for maximum power transfer and minimal reflection.
QWhat frequency range does the male SMA plug connector support?
QWhat frequency range does the male SMA plug connector support?
Our male SMA plug connector is engineered for high-frequency performance and meets typical specifications from direct current (DC) to 18 GHz and beyond in precision variants.
QWhat coupling mechanism does the male SMA plug connector use?
QWhat coupling mechanism does the male SMA plug connector use?
The male SMA plug connector features a threaded coupling mechanism (1/4-36 or equivalent) that delivers a secure connection, high mechanical stability, and vibration resistance.
QWhat materials are used in the male SMA plug connector?
QWhat materials are used in the male SMA plug connector?
The body of the male SMA plug connector may be stainless steel or brass, with insulators such as PTFE and gold-plated center contacts, delivering durability and optimal conductivity.
QWhat is the recommended mating torque for the male SMA plug connector?
QWhat is the recommended mating torque for the male SMA plug connector?
For proper performance, the male SMA plug connector should be tightened to the manufacturer’s specified torque (typically about 0.8 N·m for stainless steel versions) to avoid mechanical or electrical degradation.
QHow many mating cycles can the male SMA plug connector typically endure?
QHow many mating cycles can the male SMA plug connector typically endure?
The male SMA plug connector is designed for about 500 mating cycles, maintaining robust performance through repeated connection and disconnection operations.
QWhat are the major applications for the male SMA plug connector?
QWhat are the major applications for the male SMA plug connector?
The male SMA plug connector is ideal for telecommunications systems, measurement instruments, mobile communication base stations, and any high-frequency RF module requiring reliable interconnects.
QHow important is cleanliness and maintenance for the male SMA plug connector?
QHow important is cleanliness and maintenance for the male SMA plug connector?
Proper maintenance is vital: dust, oil, or oxidation on the male SMA plug connector contacts can degrade signal integrity; regular cleaning and inspection preserve long-term connection quality.
QCan the male SMA plug connector be customized for specific applications?
QCan the male SMA plug connector be customized for specific applications?
Yes. At Tyclon, the male SMA plug connector can be tailored — such as special plating, extended frequency range, or specific termination styles — enabling bespoke solutions for demanding projects.
QWhat should engineers check when integrating the male SMA plug connector?
QWhat should engineers check when integrating the male SMA plug connector?
Engineers should verify impedance matching (50 Ω), frequency-range compatibility, torque requirements, connector gender and polarity, and whether the mechanical interface aligns with the application layout.
QHow can I order male SMA plug connectors, and what support do you offer?
QHow can I order male SMA plug connectors, and what support do you offer?
Ordering is simple—you can purchase our male SMA plug connectors directly on our website or contact our sales team for assistance. We also provide comprehensive technical support, including datasheets, CAD models, and application notes, to help you select the ideal connector for your project.
