BNC 75Ohm vs N 75Ohm : Specifications, Key Differences, and Selection Guide

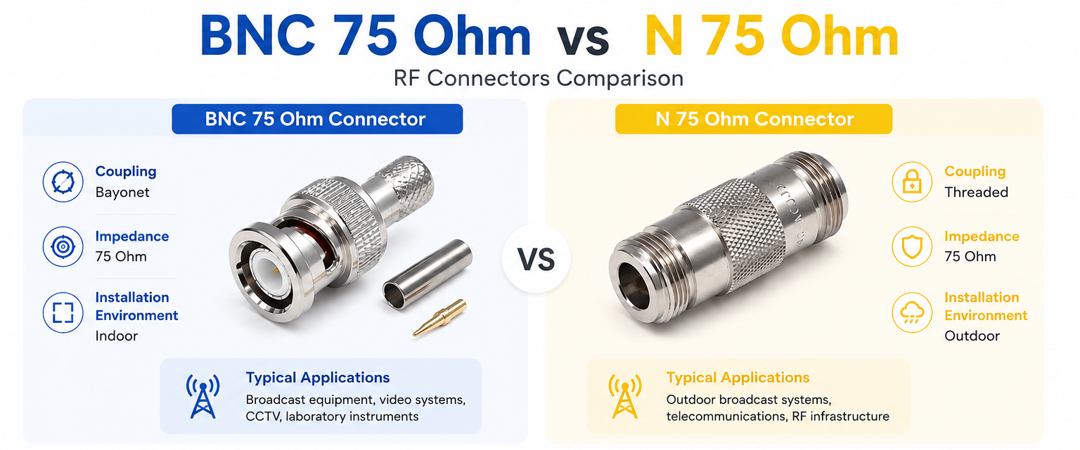

BNC 75 Ohm vs N 75 Ohm at a Glance — Quick Answer for Engineers
BNC 75 Ohm and N 75 Ohm connectors are both RF coaxial connectors designed for 75 Ohm signal transmission. They are commonly used in broadcast, video, and communication systems, but they are optimized for different installation environments.
BNC 75 Ohm connectors feature a quick bayonet-lock coupling, making them ideal for indoor video equipment and laboratory applications. N 75 Ohm connectors use a threaded coupling that provides greater mechanical strength and weather resistance, making them suitable for outdoor installations and long-distance RF transmission.
Quick Summary
・Purpose: Both – 75 Ohm RF and video signal transmission
・Coupling: BNC – Bayonet / N – Threaded
・Installation: BNC – Indoor equipment / N – Outdoor infrastructure
・Durability: N 75 Ohm offers superior environmental protection
・Compatibility: Not directly compatible
What Are BNC 75 Ohm Connectors?
BNC 75 Ohm connectors are RF coaxial connectors specifically designed for 75 Ohm video and broadcast applications.
Their bayonet-lock coupling enables quick connection and disconnection while maintaining reliable signal transmission. They are widely used in broadcast equipment, CCTV systems, video production, and laboratory instruments.
Specifications
・Impedance: 75 Ohm
・Coupling: Bayonet
・Typical Use: Broadcast equipment, video systems, CCTV, laboratory instruments
What Are N 75 Ohm Connectors?
N 75 Ohm connectors are threaded RF coaxial connectors designed for reliable 75 Ohm signal transmission in demanding environments.
Their robust construction provides excellent mechanical stability, weather resistance, and low signal loss, making them suitable for outdoor broadcast systems, telecommunications, and long-distance RF applications.
Specifications
・Impedance: 75 Ohm
・Coupling: Threaded
・Typical Use: Outdoor broadcast systems, telecommunications, RF infrastructure
BNC 75 Ohm vs N 75 Ohm: Side-by-Side Specification Table
| Specification | BNC 75 Ohm | N 75 Ohm | Why It Matters |
|---|---|---|---|
| Primary Purpose | 75 Ohm Video & RF Signal Transmission | 75 Ohm RF Signal Transmission | Both are designed for 75 Ohm systems. |
| Coupling Mechanism | Bayonet | Threaded | Different locking methods suit different installation environments. |
| Impedance | 75 Ohm | 75 Ohm | Both are optimized for broadcast and video applications. |
| Connector Size | Compact | Larger | N connectors provide greater mechanical strength. |
| Installation Environment | Indoor Equipment | Outdoor & Harsh Environments | Select according to the installation location. |
| Weather Resistance | Good | Excellent | N connectors provide better sealing against environmental conditions. |
| Typical Applications | Broadcast equipment, CCTV, video production, laboratory instruments | Outdoor broadcast systems, telecommunications, RF infrastructure | Choose according to application and installation requirements. |
| Compatibility | Not Directly Compatible | Not Directly Compatible | Different interface designs prevent direct mating. |
Key Differences Explained
1. Coupling Mechanism
The most noticeable difference is the locking mechanism.
BNC 75 Ohm connectors use a bayonet-lock coupling for quick installation and removal, while N 75 Ohm connectors use a threaded coupling that provides a stronger mechanical connection.
2. Installation Environment
BNC 75 Ohm connectors are commonly used inside equipment racks, studios, and laboratories.
N 75 Ohm connectors are designed for outdoor installations where vibration, moisture, and environmental exposure require a more secure connector.
3. Mechanical Durability
The larger threaded design of the N 75 Ohm connector offers greater mechanical strength and improved weather resistance.
BNC 75 Ohm connectors prioritize convenience and fast connection for indoor applications.
4. Typical Applications
Although both connectors operate in 75 Ohm systems, they are typically used in different environments.
BNC 75 Ohm connectors are widely used in broadcast studios, CCTV, and professional video systems.
N 75 Ohm connectors are commonly found in outdoor antennas, transmission equipment, telecommunications infrastructure, and broadcast networks.
Are BNC 75 Ohm and N 75 Ohm Compatible?
No.
Although both connectors are designed for 75 Ohm signal transmission, they use different interface dimensions and coupling mechanisms.
A dedicated adapter is required if equipment using different connector types must be interconnected.
How to Choose Between BNC 75 Ohm and N 75 Ohm
1. Choose BNC 75 Ohm when...
・Broadcast or professional video equipment is used.
・Indoor installation is required.
・Quick connection and disconnection are important.
・Laboratory or test equipment is used.
2. Choose N 75 Ohm when...
・Outdoor installation is required.
・Long-distance RF transmission is involved.
・Better weather resistance is needed.
・Telecommunications or RF infrastructure is being installed.
Technical Specifications Summary
| Item | BNC 75 Ohm | N 75 Ohm |
|---|---|---|
| Primary Purpose | Video & RF Signal Transmission | RF Signal Transmission |
| Coupling | Bayonet | Threaded |
| Impedance | 75 Ohm | 75 Ohm |
| Connector Size | Compact | Larger |
| Installation Environment | Indoor | Outdoor |
| Weather Resistance | Good | Excellent |
| Compatibility | Not Directly Compatible | Not Directly Compatible |
BNC 75 Ohm vs N 75 Ohm FAQs
QWhat is the main difference between BNC 75 Ohm and N 75 Ohm connectors?
QWhat is the main difference between BNC 75 Ohm and N 75 Ohm connectors?
The primary difference is the coupling mechanism and intended installation environment. BNC 75 Ohm connectors use a bayonet-lock coupling for indoor video applications, while N 75 Ohm connectors use a threaded coupling for outdoor and high-reliability RF installations.
QCan BNC 75 Ohm connectors connect directly to N 75 Ohm connectors?
QCan BNC 75 Ohm connectors connect directly to N 75 Ohm connectors?
No. They have different interface dimensions and coupling mechanisms, so they cannot be directly connected. A dedicated adapter is required.
QWhy are N 75 Ohm connectors commonly used outdoors?
QWhy are N 75 Ohm connectors commonly used outdoors?
Their threaded coupling provides greater mechanical strength and improved resistance to vibration, moisture, and harsh environmental conditions.
QAre both connector types designed for 75 Ohm systems?
QAre both connector types designed for 75 Ohm systems?
Yes. Both BNC 75 Ohm and N 75 Ohm connectors are specifically designed for 75 Ohm RF and video signal transmission.
QIs an N 75 Ohm connector better than a BNC 75 Ohm connector?
QIs an N 75 Ohm connector better than a BNC 75 Ohm connector?
Neither is universally better. BNC 75 Ohm connectors are ideal for indoor broadcast and video equipment, while N 75 Ohm connectors are better suited for outdoor RF systems and telecommunications infrastructure.
QWhich connector provides better weather resistance?
QWhich connector provides better weather resistance?
N 75 Ohm connectors provide superior weather resistance because of their robust threaded coupling and rugged construction, making them suitable for outdoor installations.
QWhen should I choose an N 75 Ohm connector instead of a BNC 75 Ohm connector?
QWhen should I choose an N 75 Ohm connector instead of a BNC 75 Ohm connector?
Choose an N 75 Ohm connector when your application requires outdoor installation, long-distance RF transmission, improved mechanical durability, or greater environmental protection.
