Micro BNC vs BNC : Specifications, Key Differences, and Selection Guide

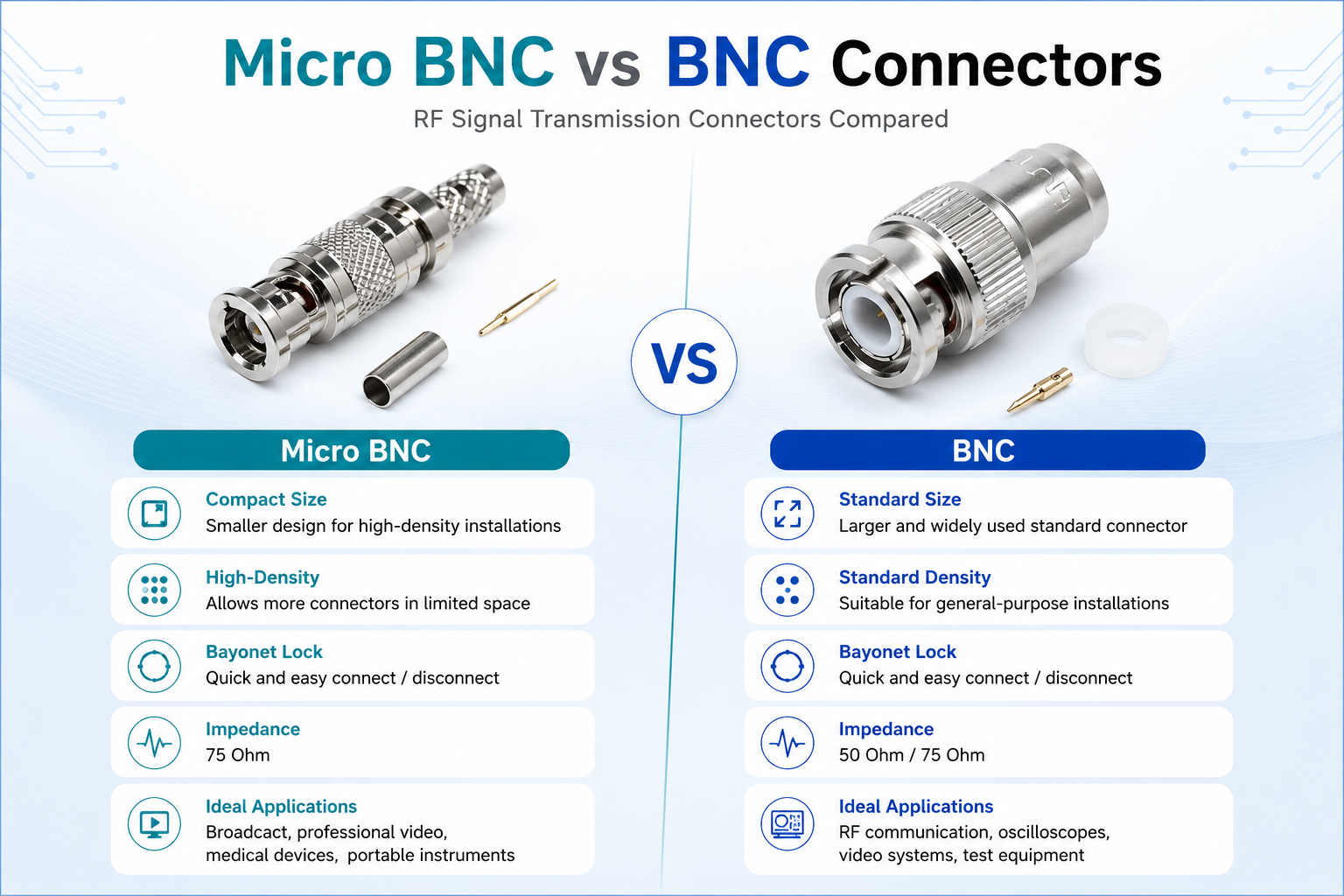

Micro BNC vs BNC at a Glance — Quick Answer for Engineers
Micro BNC and standard BNC connectors both use a bayonet-lock coupling and are designed for RF signal transmission. The primary difference is their size and application.
Micro BNC connectors offer the same familiar locking mechanism in a much smaller form factor, making them ideal for compact devices and high-density equipment. Standard BNC connectors provide a larger, more robust interface that is widely used in laboratory, communication, and video applications.
Although their internal structure is similar, TNC and BNC connectors are not directly interchangeable without an appropriate adapter.
Quick Summary
・Purpose: Both – RF signal transmission
・Size: Micro BNC – Compact / BNC – Standard
・Coupling: Both – Bayonet Lock
・Density: Micro BNC – High-density mounting
・Compatibility: Not directly interchangeable
What Are Micro BNC Connectors?
Micro BNC connectors are compact 75 Ohm RF coaxial connectors designed for applications where installation space is limited while maintaining the convenience of a bayonet-lock connection.
Compared with standard BNC connectors, Micro BNC connectors occupy significantly less panel space, allowing more connectors to be installed within the same area. They are commonly used in broadcast equipment, professional video systems, medical devices, portable instruments, and other high-density electronic equipment.
Specifications
・Impedance: 75 Ohm
・Coupling: Bayonet Lock
・Cable Type: 75 Ohm Coaxial Cable
・Typical Use: Compact RF and high-density equipment
What Are BNC Connectors?
BNC (Bayonet Neill–Concelman) connectors are one of the most widely used RF coaxial connectors for signal transmission.
Their quick bayonet-lock mechanism allows fast connection and removal, making them ideal for communication systems, measurement equipment, video transmission, and laboratory instruments.
BNC connectors are available in both 50 Ohm and 75 Ohm versions depending on the application.
Specifications
・Impedance: 50 Ohm / 75 Ohm
・Coupling: Bayonet
・Cable Type: Coaxial Cable
・Typical Use: RF and video signal transmission
Micro BNC vs BNC: Side-by-Side Specification Table
Primary Purpose / RF Signal Transmission / RF Signal Transmission / Both support reliable RF signal transmission.
Connector Size / Compact / Standard / Micro BNC enables higher connector density in limited space.
Coupling Mechanism / Bayonet Lock / Bayonet Lock / Both provide quick connection and disconnection.
Impedance / 75 Ohm / 50 Ohm / 75 Ohm / Micro BNC is designed for 75 Ohm applications, while BNC is available in both 50 Ohm and 75 Ohm versions.
Panel Density / High / Standard / Micro BNC allows more connectors within the same panel area.
Cable Type / 75 Ohm Coaxial Cable / Coaxial Cable / Select the appropriate cable based on the connector impedance.
Compatibility / Adapter Required / Adapter Required / Different interface sizes prevent direct mating.
Typical Applications / Broadcast equipment, professional video systems, portable instruments / Communication equipment, oscilloscopes, video systems, laboratory instruments / Choose based on equipment size and application.
Key Differences Explained
1. Connector Size
The biggest difference between Micro BNC and standard BNC connectors is their physical size.
Micro BNC connectors are significantly smaller, allowing designers to increase connector density without sacrificing reliable RF performance.
2. Installation Density
Micro BNC connectors are ideal for modern electronic equipment where panel space is limited.
Their compact design makes them suitable for broadcast equipment, portable instruments, and other high-density systems.
3. Coupling Mechanism
Both connectors use a bayonet-lock coupling that enables quick installation and secure connection.
This familiar locking mechanism allows easy connection while maintaining reliable mechanical retention.
4. Typical Applications
Micro BNC
・Compact broadcast equipment
・Medical devices
・Portable test equipment
・High-density RF modules
・Space-constrained electronic systems
BNC
・Oscilloscopes
・RF communication equipment
・Video systems
・Laboratory instruments
Are Micro BNC and BNC Compatible?
No.
Although both connectors use a bayonet-lock mechanism and serve similar RF applications, they differ in size and interface dimensions.
Micro BNC and standard BNC connectors cannot be directly connected without an appropriate adapter.
How to Choose Between Micro BNC and BNC
1. Choose Micro BNC when...
・Installation space is limited.
・High connector density is required.
・Compact electronic equipment is being designed.
・Portable or lightweight systems are preferred.
・Maintaining reliable RF performance in a small footprint is important.
2. Choose BNC when…
・RF signal transmission is required.
・Using standard coaxial cables.
・Working with oscilloscopes or test equipment.
・Video or communication systems require 50 Ohm or 75 Ohm connections.
Technical Specifications Summary
Item / Micro BNC / BNC
Connector Size / Compact / Standard
Coupling / Bayonet Lock / Bayonet Lock
Impedance / 75 Ohm / 50 Ohm / 75 Ohm
Cable Type / 75 Ohm Coaxial Cable / Coaxial Cable
Panel Density / High / Standard
Primary Application / Broadcast, professional video, compact equipment / RF communication, video, laboratory and test equipment
The comparison above highlights the key differences between Micro BNC and standard BNC connectors. While both use the same reliable bayonet-lock coupling, Micro BNC connectors are optimized for compact equipment and high-density installations, whereas standard BNC connectors remain the industry standard for general RF, test, and video applications. Selecting the appropriate connector depends primarily on the available installation space and the requirements of your RF system.
Micro BNC vs BNC FAQs
QWhat is a Micro BNC connector?
QWhat is a Micro BNC connector?
A Micro BNC connector is a compact RF coaxial connector that uses a bayonet-lock coupling mechanism similar to a standard BNC connector. It is designed for applications where space is limited while maintaining reliable RF performance.
QWhat is the main difference between Micro BNC and BNC connectors?
QWhat is the main difference between Micro BNC and BNC connectors?
The primary difference is their physical size. Micro BNC connectors are significantly smaller, allowing higher connector density in compact equipment, while standard BNC connectors are larger and more widely used across general RF, video, and test applications.
QCan Micro BNC and BNC connectors be connected directly?
QCan Micro BNC and BNC connectors be connected directly?
No. Although both connectors use a bayonet-lock coupling, they have different interface dimensions and cannot mate directly. A compatible adapter is required if the two connector types need to be connected.
QWhy are Micro BNC connectors used in compact equipment?
QWhy are Micro BNC connectors used in compact equipment?
Their smaller size allows more connectors to fit within the same panel space without sacrificing reliable RF signal transmission. This makes them ideal for high-density systems and space-constrained designs.
QDo Micro BNC connectors support the same applications as BNC connectors?
QDo Micro BNC connectors support the same applications as BNC connectors?
Both connectors are designed for RF signal transmission, but Micro BNC connectors are primarily used in 75 Ohm broadcast and professional video applications where equipment size and connector density are important. Standard BNC connectors are available in both 50 Ohm and 75 Ohm versions and are widely used across RF communication, test, and video systems.
QIs the locking mechanism different between Micro BNC and BNC?
QIs the locking mechanism different between Micro BNC and BNC?
No. Both connectors use a bayonet-lock coupling mechanism that enables quick connection and disconnection. The main difference is the connector size rather than the locking method.
QWhen should I choose Micro BNC instead of BNC?
QWhen should I choose Micro BNC instead of BNC?
Choose Micro BNC when installation space is limited, high connector density is required, or compact equipment design is a priority. Standard BNC connectors remain the preferred choice for general-purpose RF systems where space is not a major constraint.
