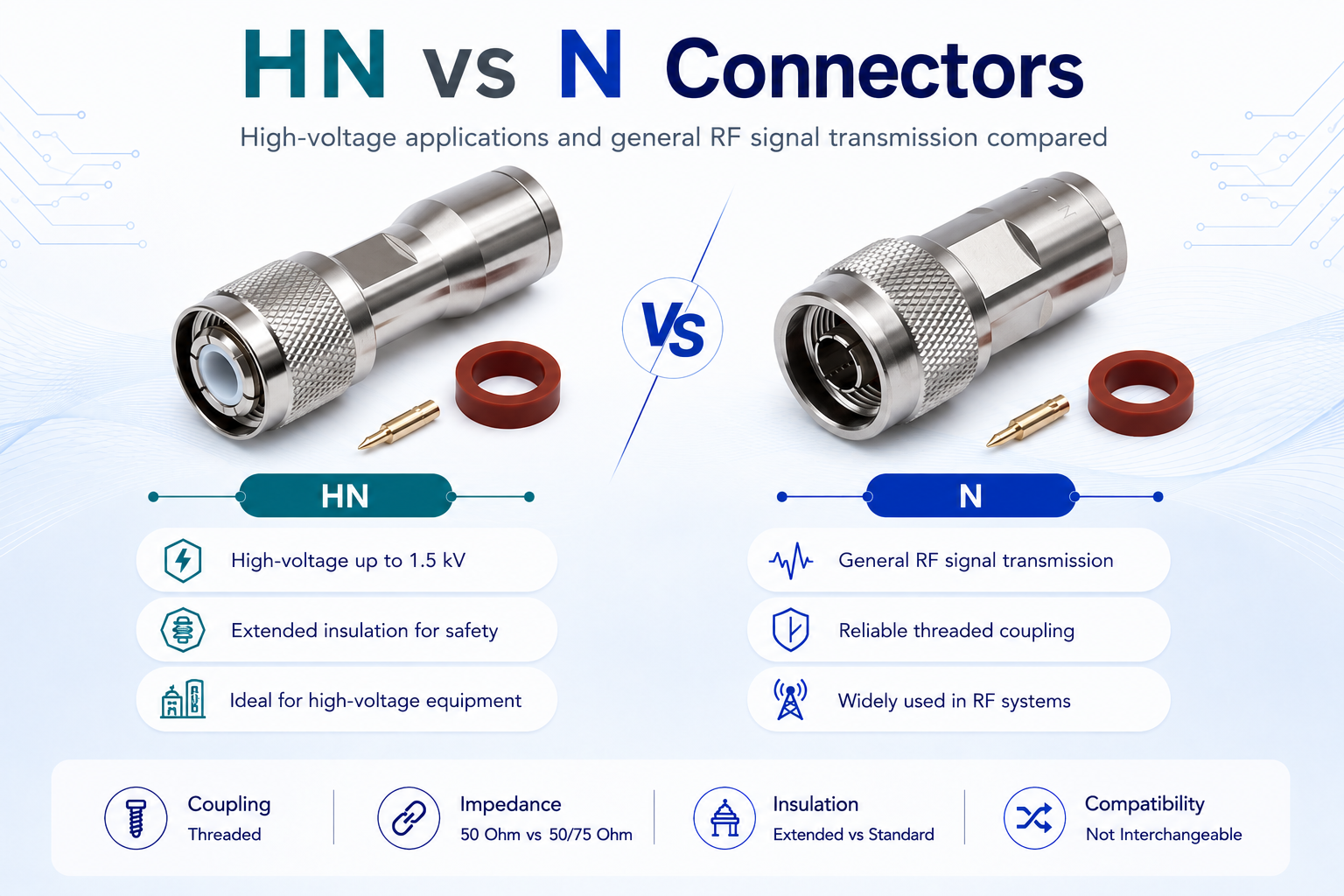

HN vs N: Specifications, Key Differences, and Selection Guide
HN and N connectors share a similar threaded coupling design, but they are built for different electrical requirements.
N connectors are the industry standard for general RF signal transmission, while HN connectors are specifically designed for high-voltage and high-power applications with enhanced insulation.
Although they look similar, HN and N connectors are not mechanically compatible and should never be connected together.
Quick Summary
・Purpose: N – General RF transmission / HN – High-voltage RF transmission
・Coupling: Both use threaded coupling
・Voltage: HN supports much higher voltage
・Size: HN is larger with extended insulation
・Compatibility: Never interchangeable
What Are HN Connectors?
HN (High-voltage N) connectors are RF coaxial connectors designed for applications requiring high voltage, high power, and reliable insulation.
Although their threaded interface resembles the standard N connector, HN connectors feature a larger body and extended dielectric structure to safely handle higher voltages.
Typical applications include high-voltage power supplies, semiconductor equipment, laboratory instruments, radiation detection systems, and industrial testing equipment.
Specifications
・Impedance: 50 Ohm
・Coupling: Threaded
・Rated Voltage: Up to 1.5 kV
・Typical Use: High-voltage equipment
What Are N Connectors?
N connectors are one of the most widely used RF coaxial connectors for medium- to high-frequency signal transmission.
Their threaded coupling provides a secure and vibration-resistant connection, making them ideal for communication equipment, measurement systems, antennas, and outdoor RF installations.
N connectors are available in both 50 Ohm and 75 Ohm versions depending on the application.
Specifications
・Impedance: 50 Ohm / 75 Ohm
・Coupling: Threaded
・Typical Use: RF communication
HN vs N: Side-by-Side Specification Table
The table below compares the key technical specifications of HN and N connectors.
Review the differences in performance, design, and applications to help select the right connector for your requirements.
| Specification | HN | N | Why It Matters |
|---|---|---|---|
| Primary Purpose | High-Voltage RF Applications | General RF Signal Transmission | Designed for different operating environments. |
| Voltage Rating | Up to 1.5 kV | Standard RF Voltage | HN connectors provide enhanced insulation for high-voltage applications. |
| Impedance | 50 Ohm | 50 Ohm / 75 Ohm | Select the connector based on your system impedance requirements. |
| Coupling Mechanism | Threaded | Threaded | Both connectors use a secure threaded coupling for reliable connections. |
| Connector Size | Larger Body | Standard Size | The larger HN body provides additional space for insulation. |
| Insulation Structure | Extended Dielectric | Standard Dielectric | Increased electrical clearance improves high-voltage safety. |
| Typical Applications | High-voltage power supplies, semiconductor equipment, laboratory instruments | RF communication, antennas, broadcast systems, test equipment | Each connector is optimized for different applications. |
| Compatibility | HN Only | N Only | The connectors are not mechanically or electrically interchangeable. |
Key Differences Explained
1. Voltage Capability
The biggest difference is voltage handling.
HN connectors are specifically engineered for high-voltage applications with reinforced insulation, while N connectors are intended for conventional RF signal transmission.
2. Insulation Design
HN connectors include an extended dielectric structure that increases electrical clearance and improves insulation performance.
This design helps prevent electrical breakdown when handling high voltage.
3. Connector Size
HN connectors are physically larger than N connectors.
The larger dimensions allow for thicker insulation while maintaining reliable RF performance.
4. Typical Applications
HN
・High-voltage power supplies
・Semiconductor equipment
・Radiation detectors
・Laboratory instruments
・Industrial testing
N
・RF communication
・Wireless infrastructure
・Antennas
・Test equipment
・Broadcast systems
Are HN and N Compatible?
No.
Although both connectors use threaded coupling and have a similar appearance, they have different internal dimensions and insulation structures.
HN connectors include extended insulation that prevents them from mating with standard N connectors.
Attempting to connect them may damage the connector or create an unsafe electrical connection.
How to Choose Between HN and N
1. Choose HN when…
・High voltage is required
・Electrical insulation is critical
・Working with power supplies
・Semiconductor manufacturing equipment
・Industrial test systems
2. Choose N when…
・Standard RF communication is required
・Antennas are used
・Measurement equipment is connected
・Outdoor communication systems
・General RF applications
Technical Specifications Summary
This comparison provides an overview of the key specifications and characteristics of HN and N.
Review the table below to better understand their differences and determine which connector best fits your application requirements.
| Item | HN | N |
|---|---|---|
| Primary Application | High-Voltage RF Applications | General RF Signal Transmission |
| Impedance | 50 Ohm | 50 Ohm / 75 Ohm |
| Coupling | Threaded | Threaded |
| Insulation Structure | Extended Dielectric | Standard Dielectric |
| Typical Equipment | High-voltage power supplies, semiconductor equipment, laboratory instruments | Communication equipment, antennas, oscilloscopes, RF test equipment, broadcast systems |
| Compatibility | HN Only | N Only |
HN vs N FAQs
QWhat does HN stand for?
QWhat does HN stand for?
HN is derived from "High-voltage N," reflecting its similarity to the N connector while being designed for high-voltage applications.
QCan HN connectors mate with N connectors?
QCan HN connectors mate with N connectors?
No. They are mechanically different and cannot be safely connected together.
QWhat is the main difference between HN and N connectors?
QWhat is the main difference between HN and N connectors?
HN connectors provide much higher voltage capability and enhanced insulation, while N connectors are designed for standard RF signal transmission.
QWhy are HN connectors larger than N connectors?
QWhy are HN connectors larger than N connectors?
The larger body accommodates thicker insulation and increased electrical clearance for high-voltage operation.
QAre HN connectors used for RF signals?
QAre HN connectors used for RF signals?
Yes. HN connectors support RF transmission but are primarily selected when high-voltage capability is also required.
QWhen should I choose HN instead of N?
QWhen should I choose HN instead of N?
Choose HN whenever your application involves high voltage, high power, or enhanced insulation requirements.
QCan N connectors replace HN connectors?
QCan N connectors replace HN connectors?
No. Standard N connectors are not designed for high-voltage service and should not be substituted for HN connectors.
