BNC Receptacles Guide: Types, Structure, and Uses Explained

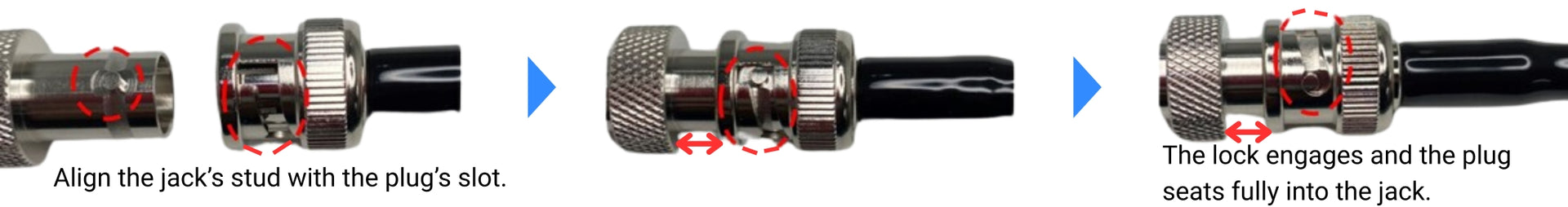

The BNC connector uses a bayonet lock system that connects and locks with a simple quarter-turn motion. This design allows fast and secure mating between a BNC receptacle (female) and a BNC plug (male), making it ideal for quick connections in CCTV, video, audio, antenna, and network applications.

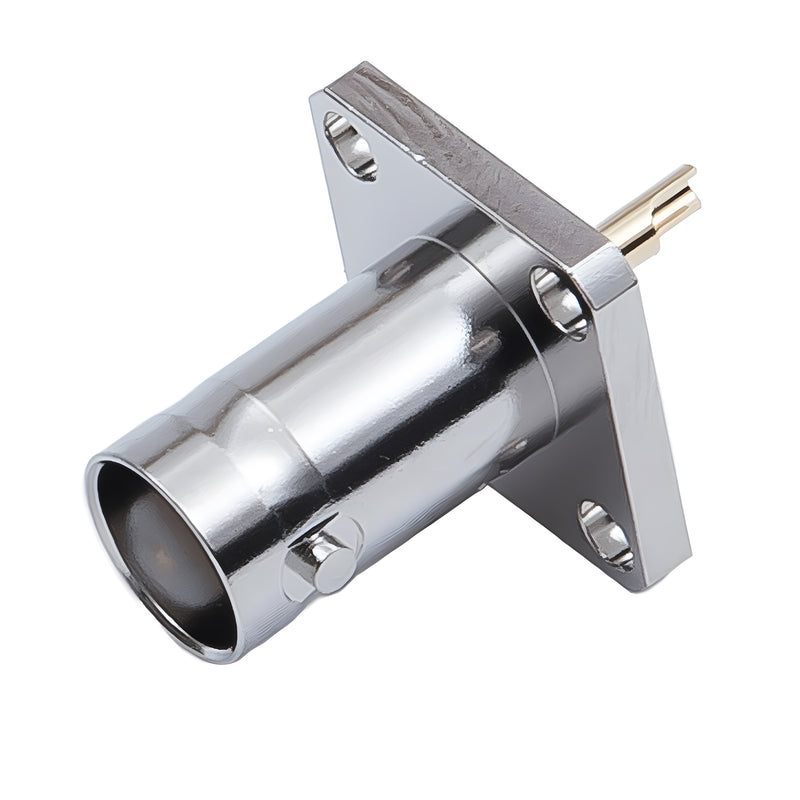

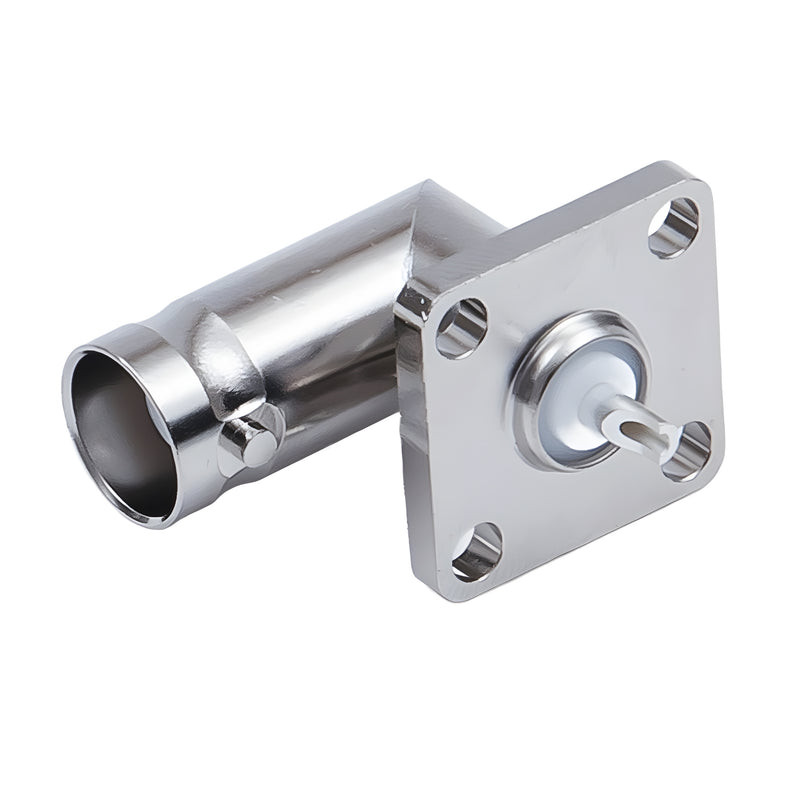

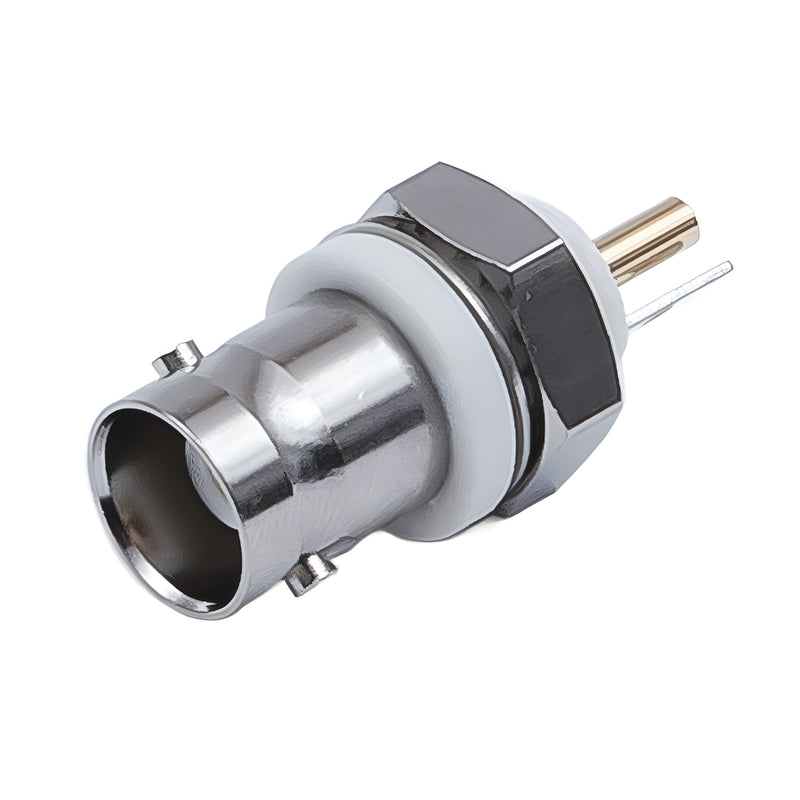

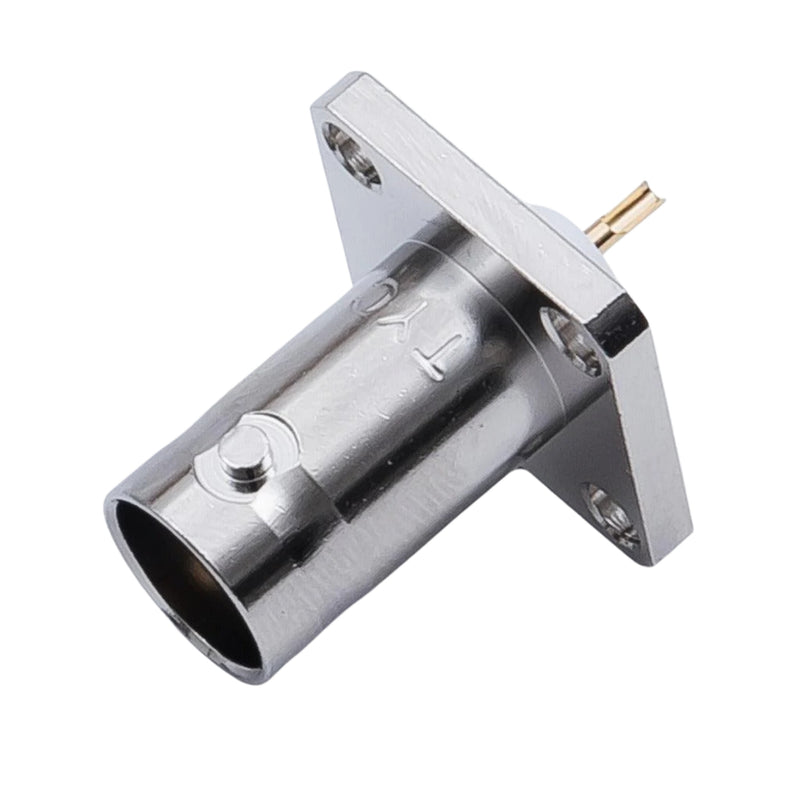

BNC receptacles are engineered to maintain consistent impedance and reliable electrical contact over repeated mating cycles. They are available in configurations such as flange mount and bulkhead types, enabling flexible integration into panels, chassis, and equipment housings for video, audio, RF, and data transmission systems.

A BNC receptacle features a female BNC interface on the mating side. The opposite end is designed for mounting to a printed circuit board (PCB), a panel-mounted device, or a coaxial cable, depending on the application.

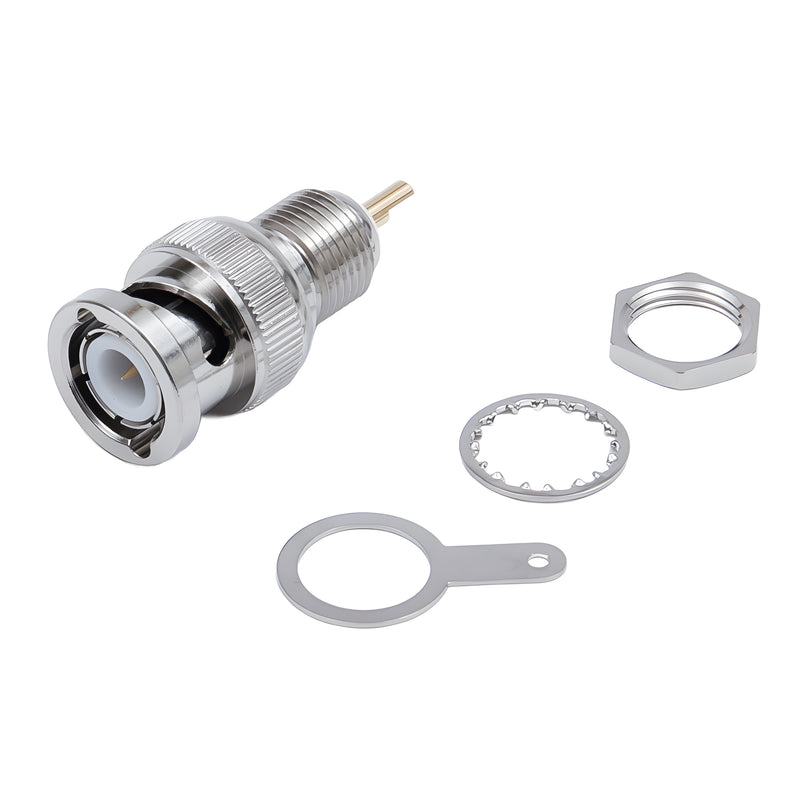

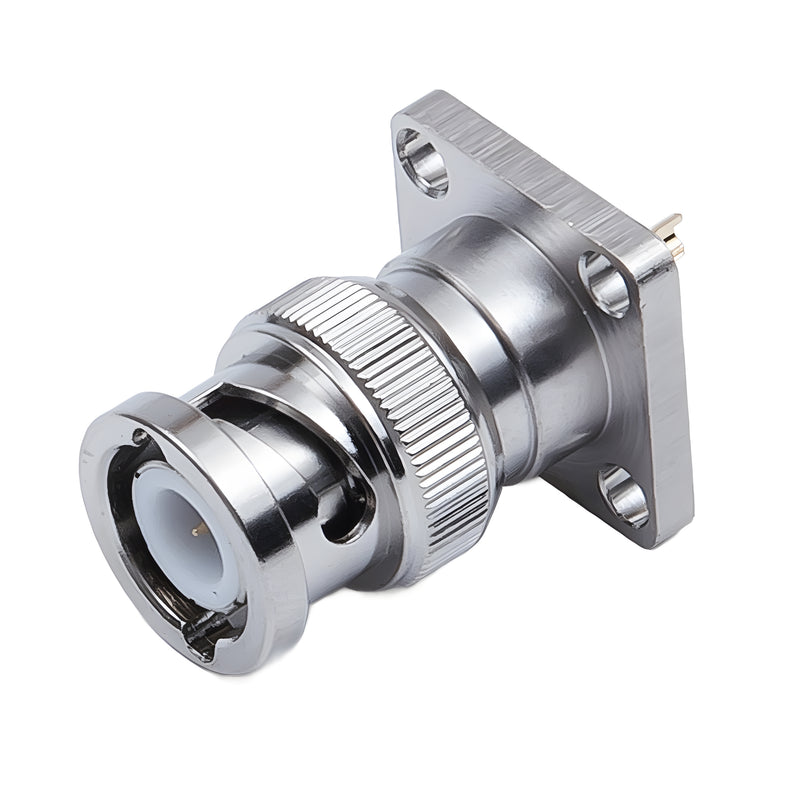

In limited configurations plug receptacles with a male interface are also available to support specific connection requirements.

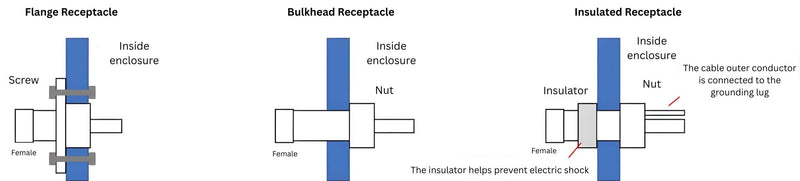

BNC receptacle configurations can be broadly classified into the following two categories based on their primary mounting method.

BNC Receptacles for Cable Termination
These receptacles are primarily designed for attachment to coaxial cables and are commonly used in cable assemblies and interconnect solutions.

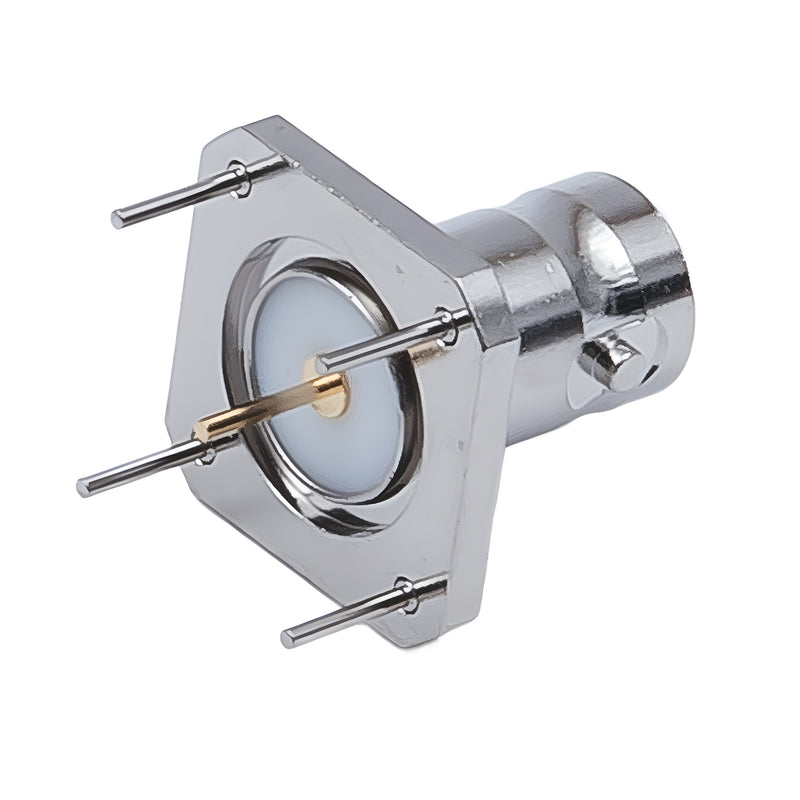

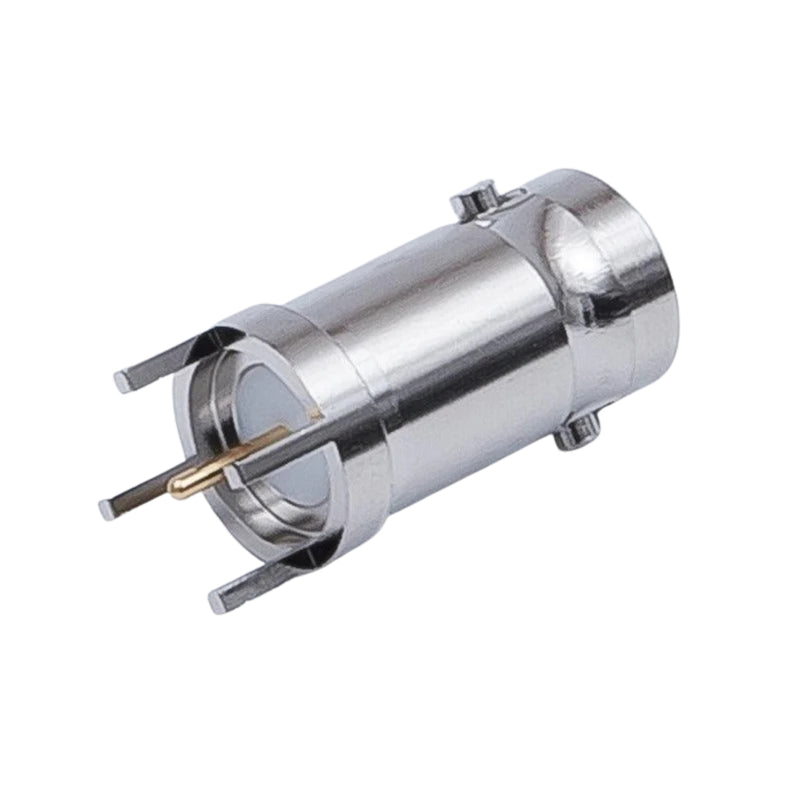

PCB Mount BNC Receptacles
These receptacles are optimized for direct mounting onto printed circuit boards and are suitable for compact equipment designs requiring stable mechanical support and reliable RF performance.

A receptacle, like a jack, features a female interface and is often used for direct cable termination. One key difference is that a receptacle offers greater flexibility in cable selection than a jack. While jacks are designed for specific coaxial cable types and therefore vary by cable, a receptacle can be used as long as the size of the center contact allows soldering to the cable’s inner conductor (center wire).

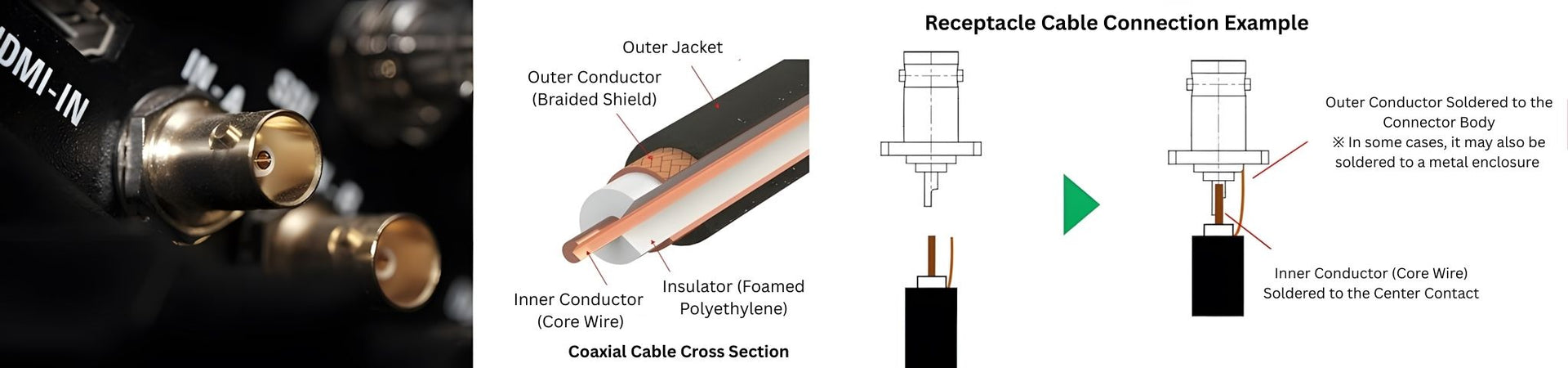

Typical applications include mounting the receptacle directly onto a printed circuit board (PCB) instead of a cable, or terminating only the cable’s center conductor without fixing the outer jacket. When a receptacle is connected to a cable, the increased flexibility in cable selection results in lower mechanical retention at the cable termination compared with a jack, making the connection more susceptible to loosening or pull-out.

For this reason, receptacles are most commonly mounted to an enclosure or chassis and used for internal wiring within equipment, where mechanical stress on the cable is minimized.

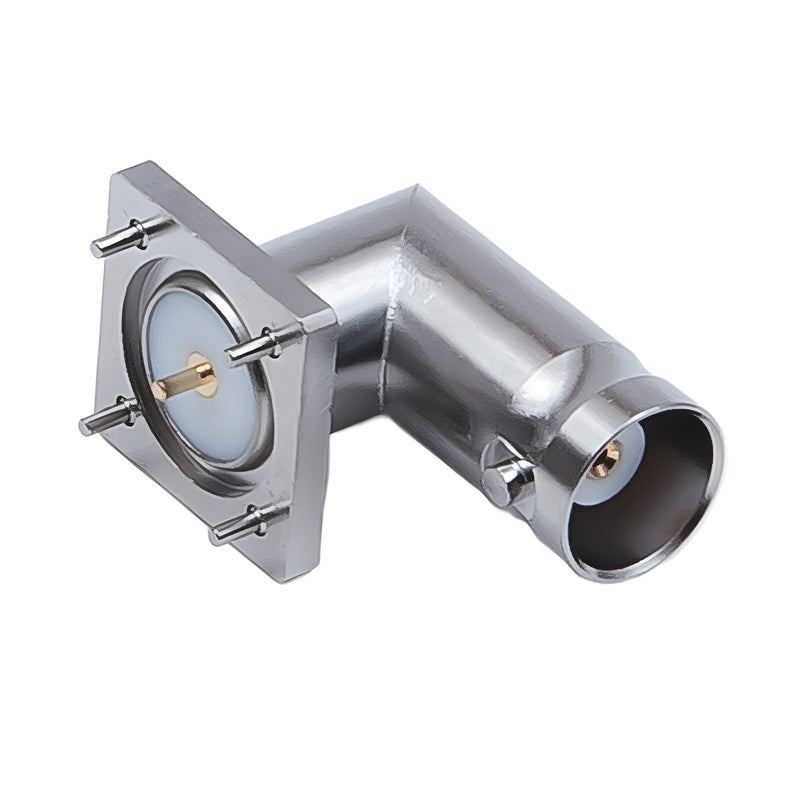

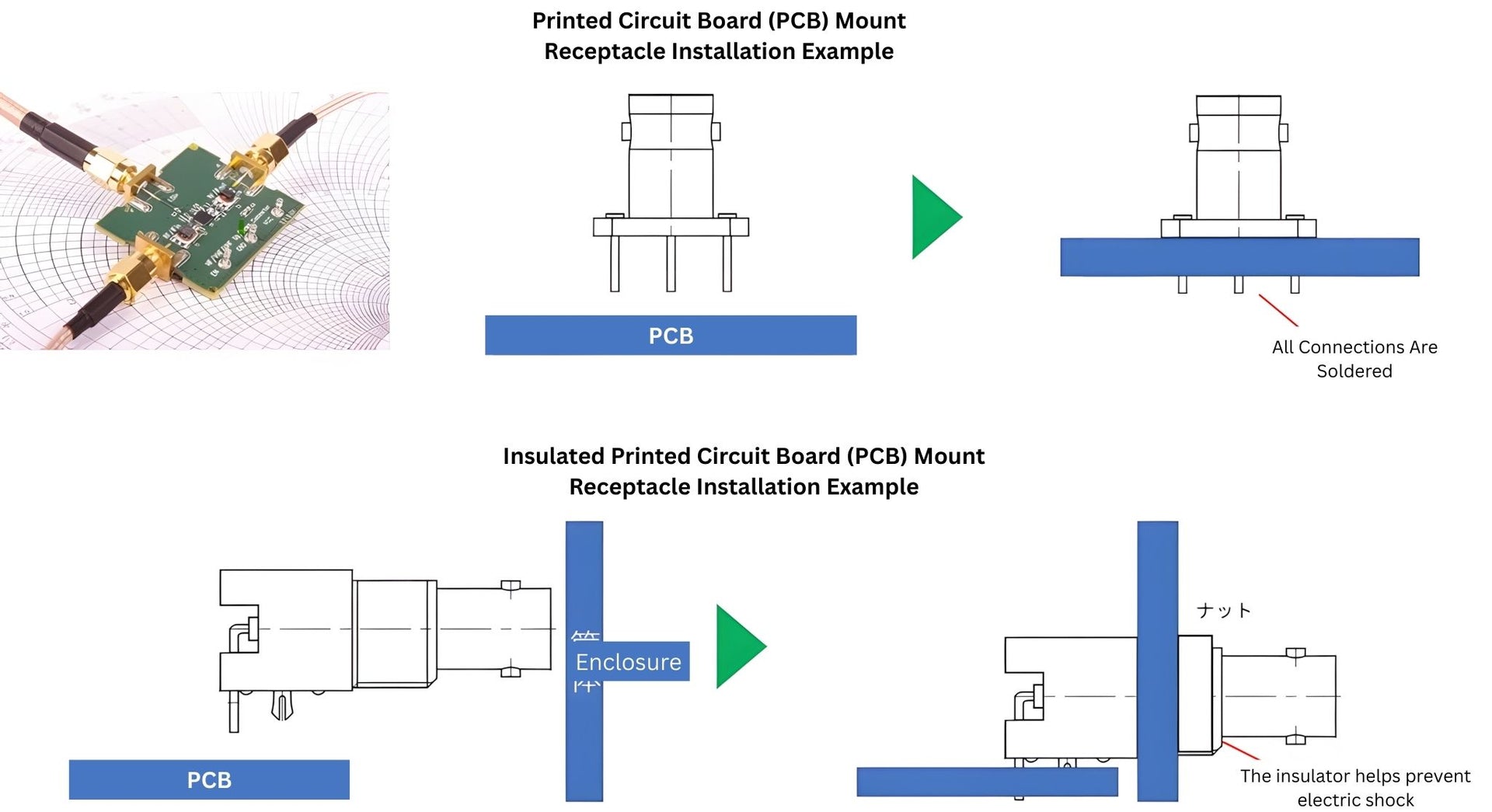

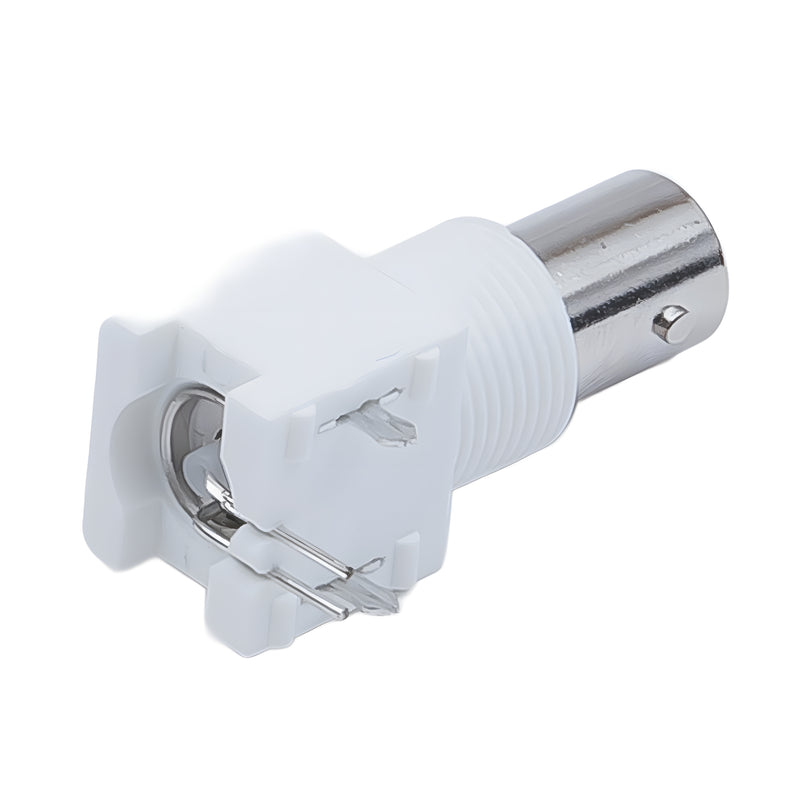

BNC receptacles designed for printed circuit board (PCB) mounting are available in different mechanical configurations to match the layout and pattern of the PCB. The receptacle form factor is selected based on the board-side pad design and mounting requirements to ensure proper fit and reliable electrical connection.
