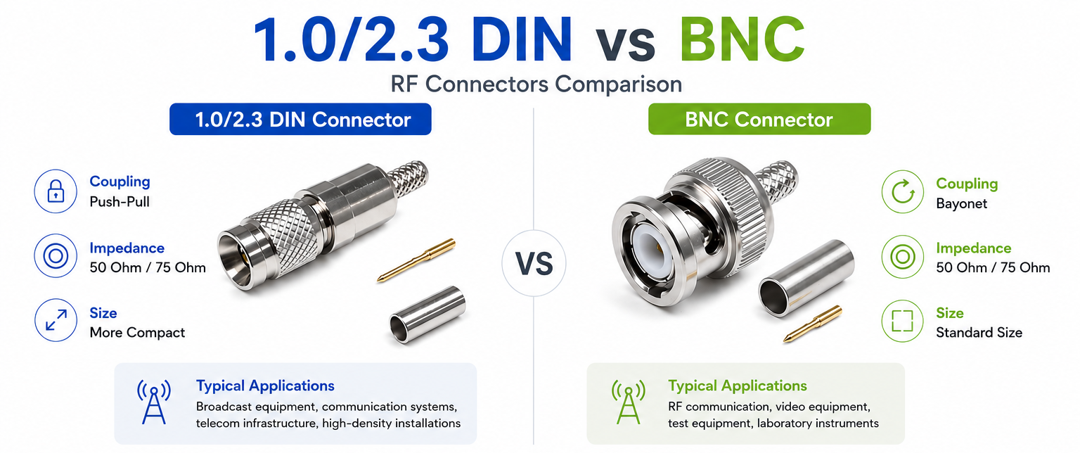

1.0/2.3 DIN vs BNC : Specifications, Key Differences, and Selection Guide
1.0/2.3 DIN vs BNC at a Glance — Quick Answer for Engineers
1.0/2.3 DIN and BNC connectors are both compact RF coaxial connectors commonly used for signal transmission. Although they share similar applications, they are designed for different installation environments and performance requirements.
The 1.0/2.3 DIN connector features a compact design with a push-pull locking mechanism, making it ideal for high-density equipment and broadcast systems. The BNC connector uses a bayonet-lock coupling and is widely adopted for general RF, video, and test applications due to its ease of use and broad compatibility.
Quick Summary
・Purpose: Both – RF signal transmission
・Coupling: 1.0/2.3 DIN – Push-Pull / BNC – Bayonet
・Size: 1.0/2.3 DIN – More Compact
・Typical Applications: 1.0/2.3 DIN – Broadcast & telecom equipment / BNC – RF, video, and test equipment
・Compatibility: Not directly compatible
What Are 1.0/2.3 DIN Connectors?
1.0/2.3 DIN connectors are compact RF coaxial connectors designed for high-density installations where space is limited.
Their push-pull locking mechanism allows quick installation while maintaining reliable electrical performance. These connectors are widely used in broadcast equipment, communication systems, video transmission, and professional RF applications.
Specifications
・Impedance: 50 Ohm / 75 Ohm
・Coupling: Push-Pull
・Typical Use: Broadcast systems, communication equipment, high-density installations
What Are BNC Connectors?
BNC (Bayonet Neill-Concelman) connectors are one of the most widely used RF coaxial connectors for signal transmission.
Their quick bayonet-lock mechanism allows fast connection and removal, making them ideal for communication systems, measurement equipment, video transmission, and laboratory instruments.
BNC connectors are available in both 50 Ohm and 75 Ohm versions depending on the application.
Specifications
・Impedance: 50 Ohm / 75 Ohm
・Coupling: Bayonet
・Frequency: Depends on connector type
・Typical Voltage: Low-voltage RF applications
1.0/2.3 DIN vs BNC: Side-by-Side Specification Table
| Specification | 1.0/2.3 DIN | BNC | Why It Matters |
|---|---|---|---|
| Primary Purpose | RF Signal Transmission | RF Signal Transmission | Both are designed for RF and video signal transmission. |
| Coupling Mechanism | Push-Pull | Bayonet | Different locking mechanisms suit different installation requirements. |
| Impedance | 50 Ohm / 75 Ohm | 50 Ohm / 75 Ohm | Both are available in standard RF impedances. |
| Connector Size | More Compact | Standard Size | 1.0/2.3 DIN is ideal where installation space is limited. |
| Installation Density | Excellent | Good | 1.0/2.3 DIN enables higher connector density. |
| Typical Applications | Broadcast equipment, communication systems, telecom infrastructure | RF communication, video equipment, laboratory instruments | Select according to installation requirements and application. |
| Compatibility | Not Directly Compatible | Not Directly Compatible | Different interface designs prevent direct mating. |
Key Differences Explained
1. Connector Size
The most noticeable difference is connector size.
The 1.0/2.3 DIN connector is significantly more compact than a BNC connector, making it well suited for equipment with limited installation space or high connector density.
2. Coupling Mechanism
The 1.0/2.3 DIN connector uses a push-pull locking mechanism that enables fast installation while reducing the required installation space.
The BNC connector uses a quarter-turn bayonet coupling, providing quick and reliable connection for general RF applications.
3. Typical Applications
Although both connectors transmit RF signals, they are commonly used in different environments.
The 1.0/2.3 DIN connector is often selected for broadcast systems, telecommunications equipment, and high-density installations.
The BNC connector is widely used for oscilloscopes, laboratory instruments, video equipment, and general RF communication systems.
4. Installation Environment
The compact size of the 1.0/2.3 DIN connector allows more connectors to be installed within limited panel space.
BNC connectors are preferred when compatibility with existing equipment and ease of connection are more important than installation density.
Are 1.0/2.3 DIN and BNC Compatible?
No.
Although both connectors are used for RF signal transmission and may be available with the same impedance, they use different coupling mechanisms and interface dimensions.
A dedicated adapter is required if equipment using different connector types must be interconnected.
How to Choose Between 1.0/2.3 DIN and BNC
1. Choose 1.0/2.3 DIN when...
・Installation space is limited.
・High connector density is required.
・Broadcast or telecommunications equipment is used.
・A compact push-pull connector is preferred.
2. Choose BNC when…
・General RF signal transmission is required.
・Laboratory or test equipment is used.
・Video transmission equipment is involved.
・Compatibility with existing BNC-based systems is important.
Technical Specifications Summary
| Item | 1.0/2.3 DIN | BNC |
|---|---|---|
| Primary Purpose | RF Signal Transmission | RF Signal Transmission |
| Coupling | Push-Pull | Bayonet |
| Impedance | 50 Ohm / 75 Ohm | 50 Ohm / 75 Ohm |
| Connector Size | Compact | Standard |
| Typical Application | Broadcast, telecom, high-density equipment | RF communication, video, laboratory equipment |
| Compatibility | Not Directly Compatible | Not Directly Compatible |
1.0/2.3 DIN vs BNC FAQs
QWhat is the main difference between 1.0/2.3 DIN and BNC connectors?
QWhat is the main difference between 1.0/2.3 DIN and BNC connectors?
The primary difference is the coupling mechanism and connector size. The 1.0/2.3 DIN connector uses a compact push-pull design for high-density installations, while the BNC connector uses a bayonet-lock coupling for general-purpose RF applications.
QCan 1.0/2.3 DIN connectors connect directly to BNC connectors?
QCan 1.0/2.3 DIN connectors connect directly to BNC connectors?
No. They have different interface dimensions and coupling mechanisms, so they cannot be directly connected. A dedicated adapter is required.
QWhy are 1.0/2.3 DIN connectors commonly used in broadcast equipment?
QWhy are 1.0/2.3 DIN connectors commonly used in broadcast equipment?
Their compact size allows more connectors to be installed in limited panel space while maintaining reliable RF performance, making them ideal for broadcast and telecommunications systems.
QAre both connector types available in 50 Ohm and 75 Ohm versions?
QAre both connector types available in 50 Ohm and 75 Ohm versions?
Yes. Both 1.0/2.3 DIN and BNC connectors are available in 50 Ohm and 75 Ohm versions to support different RF and video applications.
QIs a 1.0/2.3 DIN connector better than a BNC connector?
QIs a 1.0/2.3 DIN connector better than a BNC connector?
Neither is universally better. The best choice depends on the application. A 1.0/2.3 DIN connector is ideal for compact, high-density installations, while a BNC connector is preferred for general-purpose RF, video, and laboratory equipment.
QWhich connector is easier to install?
QWhich connector is easier to install?
Both connectors are designed for quick installation. The 1.0/2.3 DIN connector uses a push-pull locking mechanism, while the BNC connector uses a simple quarter-turn bayonet lock.
QWhen should I choose a 1.0/2.3 DIN connector instead of a BNC connector?
QWhen should I choose a 1.0/2.3 DIN connector instead of a BNC connector?
Choose a 1.0/2.3 DIN connector when installation space is limited, higher connector density is required, or you are designing broadcast or telecommunications equipment where compact size is an advantage.
